1 Set capacity 500 kgs 250 kw medium frequency induction furnace was shipped for Alexandria, Egypt on Nov 11th, 2017.

Main techncial parameters:

Furnace model: GW-0.5-250/1J                     Rated capacity: 0.5 ton

Furnace body quantity:2pcs                            Power system model: KGPS-250-1S

Rated power: 250 Kw                                      Working frequency: 1000 Hz

Power input: 380 V 50 Hz 3 phase                 Tilting type: electromechanical tilting

Furnace enclosure: aluminum furnace body

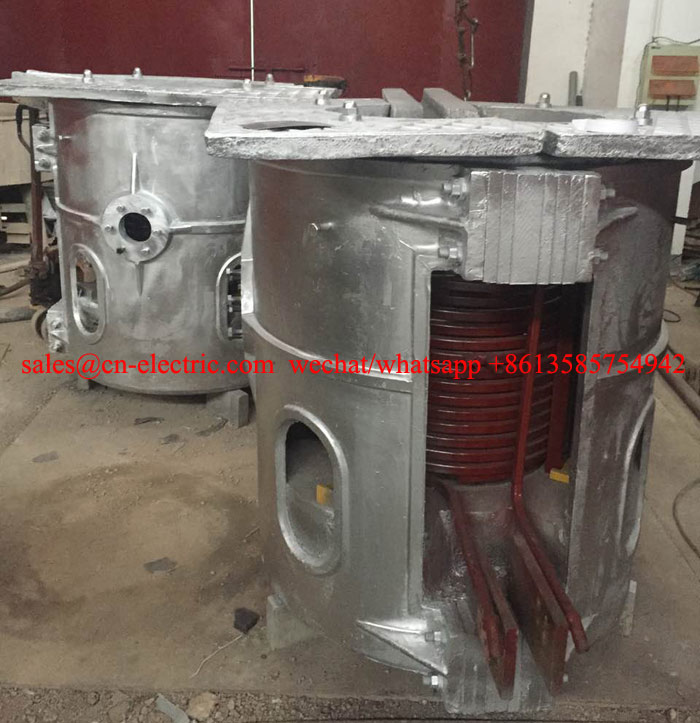

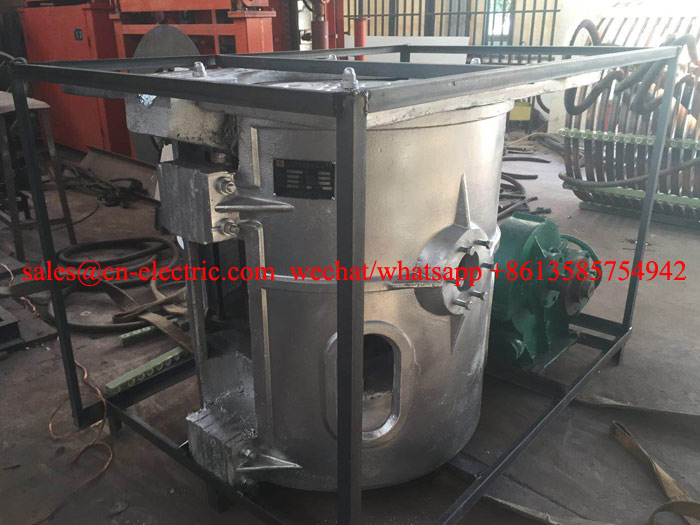

Capacity 500 kg aluminum shell furnace body

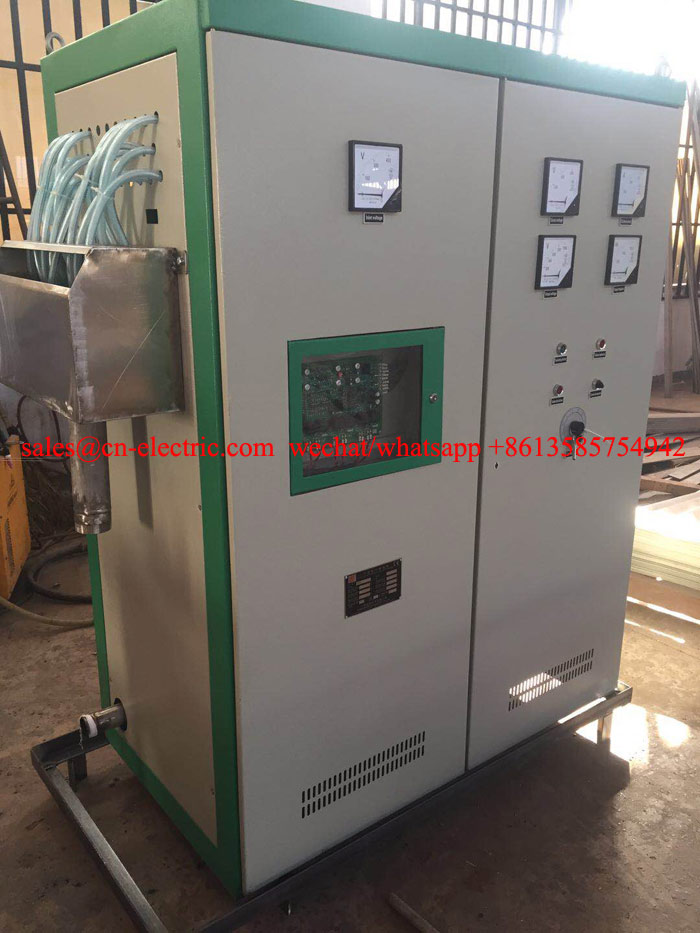

250 kW medium frequency power supply cabinet

4000 Kvar capacitor bank

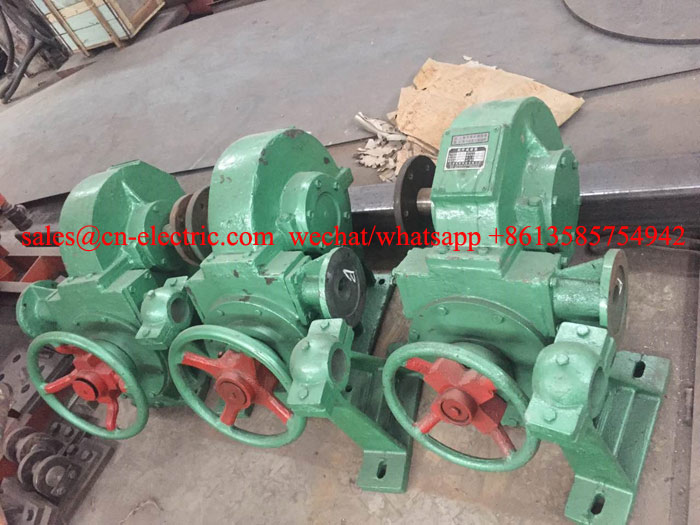

Gear boxes for tilting

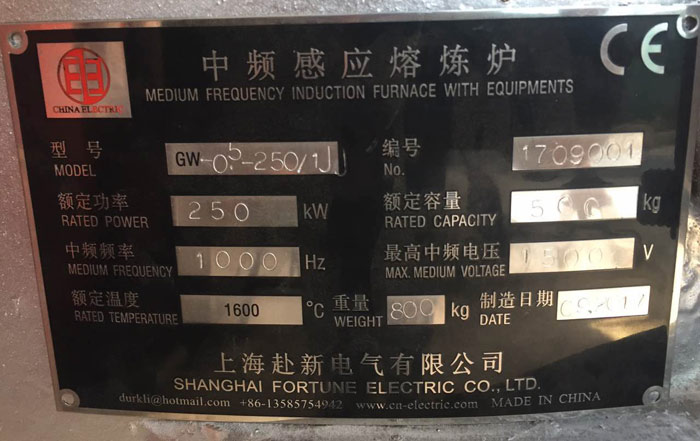

Nameplate of 500 kgs 250 kw medium frequency induction furnace
