    Product Name: Y Series High Voltage Squirrel cage Motor,IP23,IC01 Hits: 5252

Original Image

Payment Terms:

30% in advance, balance by T/T or L/C at sight

Minimum Order:

1 Piece

Package:

plywood box

Brand Name:

ELE

Motor Type

Squirrel-cage

Structure

Box-type

Protection:

Normal IP23

Cooling:

Normal IC01

Insulation:

Normal class F

Mounting:

Normal IMB3

Ambient condition:

Normal Temperature 40, Normal Altitude 1000m

      ·Data sheet     · Mounting and Overall Dimensions     · Order
     · Features and application
Y series medium size high voltage 3 phase asynchronous motors are high in efficiency, reliable in operation and easy to mount and maintain.

Y series motors are used to drive compressor, ventilator, water pump, breaker, cutting machine, grinding mill and other general purpose machines.

Y series motors are allowed to be started directly at full voltage. When start the motor, the rheostat should be connected to regulate the starting torque by adjusting resistor attached but the rotor windings should not be short-circuited.

The frame of motor is welded by steel plates to be formed a box-type.

The rotor winding of the Y series motor is made of cast aluminum or copper bar.

The motor is designed to use rolling bearing with grease lubrication or sliding with diluted oil lubrication. The oil can be charged and discharged conveniently.


Comparison of different series High Voltage motors

No.

Squirrel-cage motor

Y

YKK

YKS

Y2

Slip-ring motor

YR

YRKK

YRKS

/

1

Structure

Box-type construction, made up of steel plates welded with each other

Compact struction

2

Cooling method

IC01 or (IC11, IC21, IC31)

IC611 or IC616

IC81W

IC411

3

Natural ventilation, with top mounted protection cover

With top mounted air-air cooler

With top mounted air-water cooler



4

Protection type

IP23

IP44 or IP54

IP44 or IP54

IP54

5

Insulation

F

6

Mounting arrangement

IMB3

7

Voltage available

3kv, 3.3kv;     6kv, 6.6kv;     10kv, 11kv

8

Frequency available

50Hz , 60Hz

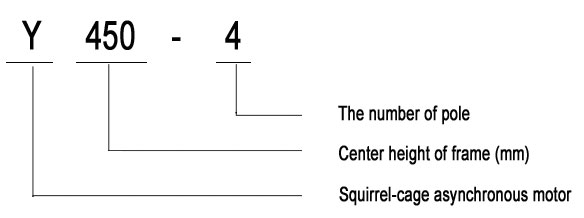

     · Model explanation
