  ICON Medium Voltage Motor, High Voltage Motor
    Product Name: YRKK Series High Voltage Slip Ring Motor,IP44,IC611/IC616 Hits: 13959

Original Image

Payment Terms: 30% in advance, balance by T/T or L/C at sight
Minimum Order: 1 Piece
Package: plywood box
Brand Name: ELE
Motor Type Slip-ring (wound-rotor)
Structure Box-type
Protection: Normal IP44, IP54
Cooling: Normal IC611, IC616
Insulation: Normal class F
Mounting: Normal IMB3
Ambient condition: Normal Temperature 40, Normal Altitude 1000m

      ·Data sheet     · Order
     · Features and application
YRKK series Medium Size Three Phase Asynchronous High Voltage Slip Ring Motor, also called as high voltage wound Rotor motor is used to drive Windlass, Press machinery, Crusher, Stock-removing, drawbenchs and other general-purpose machinery. They can serve as the prime movers in steel, mines, mechanical industries, blower, compressor, transportation, building materials industry, etc field.


The motor has such advantage as high efficiency, energy-saving, low Noise, low vibration, high start torque, low start current, light weight and reliable performance. They are easy for installation and maintenance.

Comparison of different series High Voltage motors

No.

Squirrel cage motor

Y

YKK

YKS

Y2

Slip ring motor

YR

YRKK

YRKS

/

1

Structure

Box-type construction, made up of steel plates welded with each other

Compact struction

2

Cooling method

IC01 or (IC11, IC21, IC31)

IC611 or IC616

IC81W

IC411

3

Natural ventilation, with top mounted protection cover

With top mounted air-air cooler

With top mounted air-water cooler



4

Protection type

IP23

IP44 or IP54

IP44 or IP54

IP54

5

Insulation

F

6

Mounting arrangement

IMB3

7

Voltage available

3kv, 3.3kv;     6kv, 6.6kv;     10kv, 11kv

8

Frequency available

50Hz , 60Hz

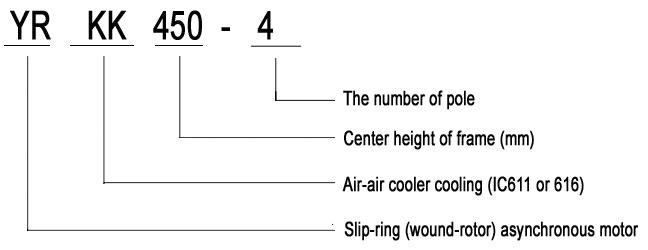

     · Model explanation
