    Product Name: GWA Medium Frequency Aluminum Melting Induction Furnace Hits: 10562

Original Image
Payment Terms: 30% in advance, balance by T/T or L/C at sight
Minimum Order: 1 Piece
Package: plywood box and Nude
Brand Name: ELE
Capacity 10kg~10,000kg
Shell Material steel or cast aluminum
Tilting Type hydraulic or mechanical
      ·Data sheet     · Order
     · Application
This GWA Series Coreless Medium Frequency Induction Smelting Furnace, also called Induction Melting Furnace or Electric induction oven is for melting aluminum and its alloy.

     · Structure Features

1. Solid steel structure and durable;
2. Good magnetic isolation, safe and reliable;
3. Solid frequency conversion power supply, easy operation; Adjustable power rate, easy operation and maintenance;
4. Easy to start up with load or free of load.


     · Performance
Electrical Feature:
1. Digital CMOS chip (U. S. ASIC-2-12), with the highest degree of integration at home, is used in control circuit, the overall machine controlled through one single panel;
2. Frequency-sweep zero voltage start, high success rate, no shock;
3. Automatic resistance adjustment, permanent power output, 10-20% energy saved in comparison with domestic traditional machine of the type;
4. Auto phase sequence adaptation, free of synchronization;
5. Good performance in reload staring, auto recovery;
6. Highly integrated in controlling circuit, free of use of high-rate starter and relay loop, fairly low failure rate;
7. Wholly digital design, strong in anti-interference, no temperature shift when in continuous working;
8. Multi-protection functions (for over current, over voltage, insufficient water pressure, power failure, or phase absence), and mishandling will not cause damage to machine.

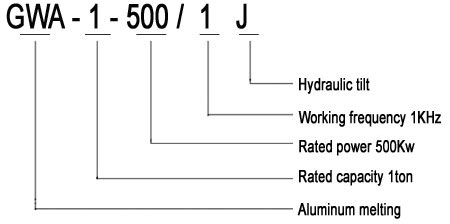

     · Model explanation

Model

Rated Capacity

Rated Power

Input Volt. (6pulse)

DC Volt.

Melting Rate

Working Freq.

Rated Temp.

T

Kw

V

 V

T/H

 Hz

oC

GWA-0.15-100/1J

0.15

100

380

500

0.15

1000

750

GWA-0.3-160/1J

0.3

160

380

500

0.25

1000

750

GWA-0.5-250/1J

0.5

250

380

500

0.6

1000

750

GWA-0.8-400/1J

0.8

400

380

500

0.75

1000

750

GWA-1-500/1J

1

500

380

500

0.9

1000

750

GWA-1.5-800/0.5J

1.5

800

690

880

1.4

500

750

GWA-2-1000/0.5J

2

1000

690

880

1.9

500

750

GWA-3-1500/0.5J

3

1500

690

880

2.5

500

750


     · Equipment Constitution
1. Furnace body
2. Hydraulic tilting device,
3. Operation table
4. Medium frequency power supply
5. Low voltage power cabinet
6. Capacitor bank
7. Water cooling cable
8. Crucible Mould
9. Water tanks
10. Water temperature and pressure annunciator
11. Furnace leakage alarm
