  ICON Medium Voltage Motor, High Voltage Motor
    Product Name: YKK Series High Voltage Squirrel cage Motor,IP44,IC611/IC616 Hits: 12852

Original Image

Payment Terms: 30% in advance, balance by T/T or L/C at sight
Minimum Order: 1 Piece
Package: plywood box
Brand Name: ELE
Motor Type Squirrel-cage
Structure Box-type
Protection: Normal IP44, IP54
Cooling: Normal IC611, IC616
Insulation: Normal class F
Mounting: Normal IMB3
Ambient condition: Normal Temperature 40, Normal Altitude 1000m

      ·Data sheet     · Mounting and Overall Dimensions     · Order
     · Features and application
YKK series medium-size high voltage 3-phase Squirrel cage asynchronous motors have good performance such as efficiency, energy conservation, lower noise, slight vibration, reliable operation, convenient installation and maintenance.

YKK series motors are suitable for driving compressor, water pump, crack machine, cut machine, transportation machine and other equipments. It is also used as the primitive drive for the mine mechanical industry, petroleum & chemistry industry, power plant and so on.

The motor has the box-type construction, which was made up of steel plates welded with each other, lightweight and good stiffness. On top of the motor is the air- air cooler, convenient to maintenance and replacement. The stator adopts the press construction. The winding is with class F insulation and VPI impregnating, which ensures the reliable of the insulation, the mechanical stress and the capable of resistant humidity.

Comparison of different series High Voltage motors

No.

Squirrel-cage motor

Y

YKK

YKS

Y2

Slip-ring motor

YR

YRKK

YRKS

/

1

Structure

Box-type construction, made up of steel plates welded with each other

Compact struction

2

Cooling method

IC01 or (IC11, IC21, IC31)

IC611 or IC616

IC81W

IC411

3

Natural ventilation, with top mounted protection cover

With top mounted air-air cooler

With top mounted air-water cooler



4

Protection type

IP23

IP44 or IP54

IP44 or IP54

IP54

5

Insulation

F

6

Mounting arrangement

IMB3

7

Voltage available

3kv, 3.3kv;     6kv, 6.6kv;     10kv, 11kv

8

Frequency available

50Hz , 60Hz

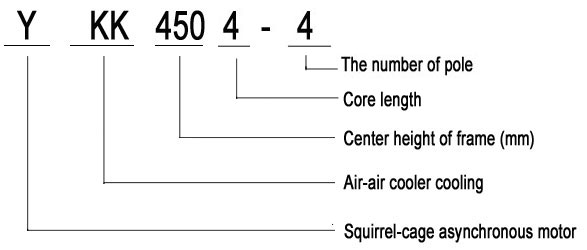

     · Model explanation
