  ICON Medium Voltage Motor, High Voltage Motor
    Product Name: YRKS Series High Voltage Slip Ring Motor,IP44/IP54,IC81W Hits: 5099

Original Image
Payment Terms: 30% in advance, balance by T/T or L/C at sight
Minimum Order: 1 Piece
Package: plywood box
Brand Name: ELE
Motor Type Slip-ring (wound-rotor)
Structure Box-type
Protection: Normal IP44, IP54
Cooling: Normal IC81W
Insulation: Normal class F
Mounting: Normal IMB3
Ambient condition: Normal Temperature 40, Normal Altitude 1000m
      ·Data sheet     · Order
     · Features and application
YRKS series Medium-Size High Voltage 3-Phase Asynchronous Slip Ring/ Wound Rotor motor is suitable for poor surroundings, the site in high required protection and directly application of outdoor. The motors can drive water pump, compressor, transportation machinery and common used machinery.

YRKS series motor is design into box-type construction. The frame is light in weight and good in rigid and is made of steel plates by melding. Air-water cooler is fixed at the top of frame with bolts and consists outside wind circuit in secondary cooling with water pump and water pool for motor, the primary cooling circulation is consisted of fan, cooler inside motor. The primary cooling medium (air) can complete the heat exchange with secondary cooling medium in cooling pipe (circulation water) through outside surface of pipe in the cooler as well as spring etc. heat transfer conductor.

Comparison of different series High Voltage motors

No.

Squirrel-cage motor

Y

YKK

YKS

Y2

Slip-ring motor

YR

YRKK

YRKS

/

1

Structure

Box-type construction, made up of steel plates welded with each other

Compact struction

2

Cooling method

IC01 or (IC11, IC21, IC31)

IC611 or IC616

IC81W

IC411

3

Natural ventilation, with top mounted protection cover

With top mounted air-air cooler

With top mounted air-water cooler



4

Protection type

IP23

IP44 or IP54

IP44 or IP54

IP54

5

Insulation

F

6

Mounting arrangement

IMB3

7

Voltage available

3kv, 3.3kv;     6kv, 6.6kv;     10kv, 11kv

8

Frequency available

50Hz , 60Hz

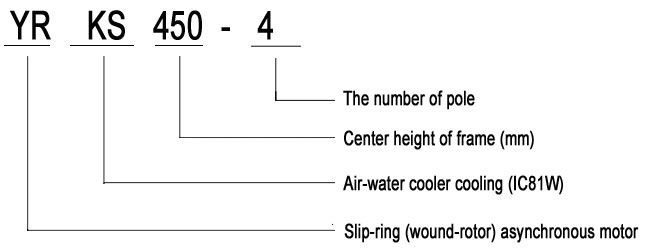

     · Model explanation
