  ICON Medium Voltage Motor, High Voltage Motor
    Product Name: Y2 Series Compacted High Voltage Squirrel Cage Motor,IP54,IC411 Hits: 5889

Original Image
Payment Terms: 30% in advance, balance by T/T or L/C at sight
Minimum Order: 1 Piece
Package: plywood box
Brand Name: ELE
Motor Type Squirrel-cage
Structure Compacted struction
Protection: Normal IP54
Cooling: Normal IC411
Insulation: Normal class F
Mounting: Normal IMB3
Ambient condition: Normal Temperature 40, Normal Altitude 1000m
      ·Data sheet     · Mounting and Overall Dimensions     · Order
     · Features and application
Y2 Series motors are Medium-Size High voltage 3-Phase Squirrel cage motor with compact construction. The protection class is IP54. Ideal for the power of compressor, fan, pump and crusher etc.

Y2 Series motors are general for compressor, water pump, crack machine, cut machine, transportation machine and


Y2 Series motors are high efficiency and energy saving and reliable performance, the motor is the new generation of YKK series motor, which has smaller volume and lighter weight.

The altitude doesn’t exceed 1000m above sea level. The ambient temperature subjects to seasonal variations but not exceeding 40G.

Comparison of different series High Voltage motors

No.

Squirrel-cage motor

Y

YKK

YKS

Y2

Slip-ring motor

YR

YRKK

YRKS

/

1

Structure

Box-type construction, made up of steel plates welded with each other

Compact struction

2

Cooling method

IC01 or (IC11, IC21, IC31)

IC611 or IC616

IC81W

IC411

3

Natural ventilation, with top mounted protection cover

With top mounted air-air cooler

With top mounted air-water cooler



4

Protection type

IP23

IP44 or IP54

IP44 or IP54

IP54

5

Insulation

F

6

Mounting arrangement

IMB3

7

Voltage available

3kv, 3.3kv;     6kv, 6.6kv;     10kv, 11kv

8

Frequency available

50Hz , 60Hz

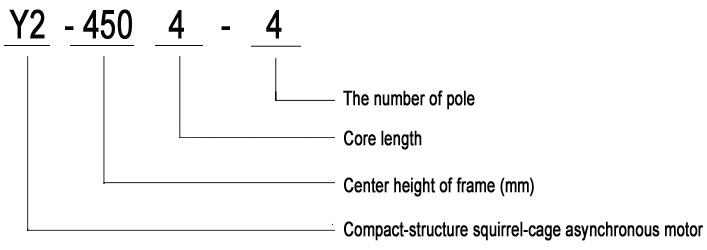

     · Model explanation
