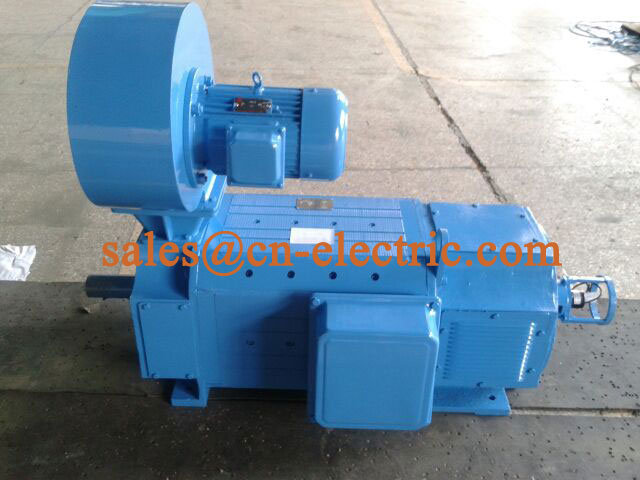

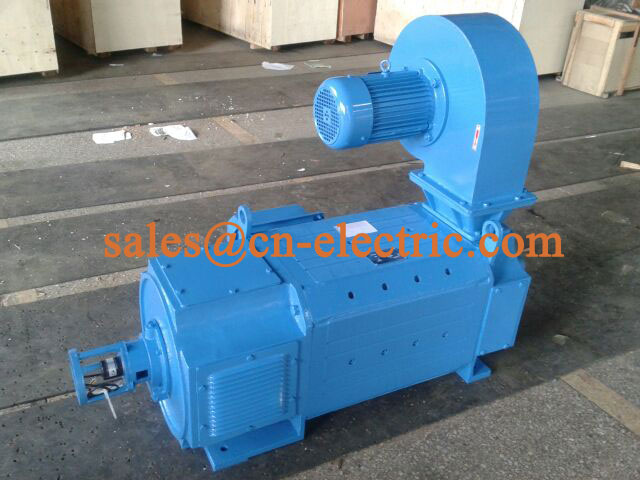

1PC of Z4 Series DC Motors was shipped for Russia on July 4th, 2012

Some information about this DC motor is as below:

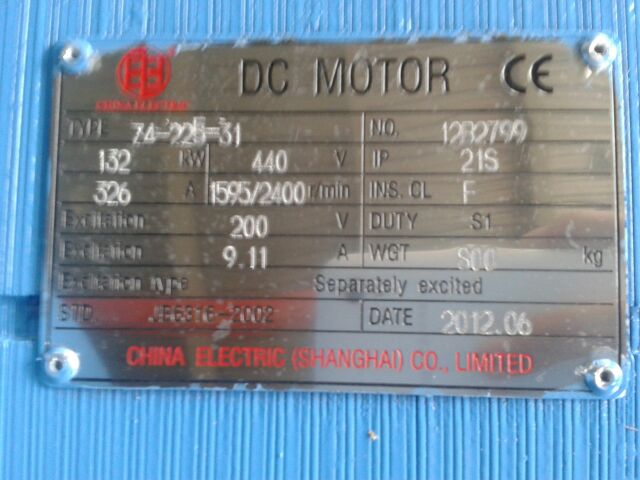

Z4-225-31, 132Kw, 1595/2400RPM

Armature Voltage: 440Vdc, Armature Current: 326A

Field Voltage: 200Vdc, Field Current: 9.11A

Cooling: IC06(with cooling fan & filter fix at the driving end)

Fan Power: 3phase,380V,50Hz,

Protection: IP21S,

Insulation class F,

Mounting: B3,

Duty: S1

Ambient temp. 40oC,

Max. Altitude 1000m

Winding and bearing with PT100 for thermal protection

NSK Bearing from Japan

"KOYO" encoder model TRD-J1000-RZ
