    Product Name: GYT Series Main Frequency Induction Smelting Furnace Hits: 14035

Original Image

Payment Terms: 30% in advance, balance by T/T or L/C at sight
Minimum Order: 1 set
Package: plywood box and Nude
Brand Name: ELE
Capacity 150kg~50,000kg
Shell Material Steel
Tilting Type Hydraulic or Mechanical as buyer's choice

      ·Data sheet     · Order
     · Features and application
GYT Series Cored Main Frequency Induction Smelting Furnace, also called as Main Frequency Induction Melting Furnace is for melting QSn 6.5~1.0 bronze, copper, brass and their alloy.

The product is designed based on principle of electromagnetic induction.
The induction coil will produce alternating flux after connecting to AC voltage. It will make a closed magnetic circuit when alternating flux goes through iron core. The flux produces electromotive force and secondary current in the melting channel. The current goes thought the resistance of melting-metal, and converses the electric energy into heat energy. The heat energy melted the metal in melting channel.

     · Structure Features
The furnace system consists of furnace cover, furnace body, furnace frame, inductor, furnace hydraulic tilting system and electrical control system, etc.

The furnace body is vertical structure and the furnace shell is made of welded rolled steel plate. The melting pool is rammed by thermal-keeping material and fire resistance material, and laid by firebricks.

The induction body consists of 1 inductor, 1 iron core, 1 melting channel, refractory material of inductor shell and water jacket. The inductor is water cooling type.

The furnace body is hydraulic tiling. The hydraulic titling system consists of steel wire windlass and hydraulic sloping furnace organ, which are selected by users according to actual situations. The steel wire windlass is composed of windlass frame, wire wheel, steel wire and electrical appliance while the hydraulic sloping furnace organ is composed of hydraulic station, plunger cylinder and electric control parts.

The electrical control system is classified into single phase and three phases according to requirements of users. The former consists of mutation transformer, gear swift plate, contact, air switch, knife switch, fuse and capacitor. Three phases control adopts three phase balance system, which consisting of air switch, contact, three phases mutation transformer, balance reactor and capacitor.

Water cooling device: 1 inductor, 1 water jacket, three coils with self water supplied three phases mutation transformer and two coils of reactor separately connected in series. The water flux of four water ways can be adjusted by valve and the inlet pressure cannot be lower than 2-3 X 10 E Mpa. During the melding process, the inlet water temperature cannot be over 35oC and check the water flux regularly at random. If the water flux is lower than that of requirements, clean off the scale immediately.

The cooling water quality of the equipment shall meet the following requirements: PH is within a range of 7-8.5 and hardness is no more than 7mm/L. Total content of suspended matter and dissolved solid is no more than 250 mg/L and the suspended matter is no more than 10 mg/L, for fear that the scale would form and the water way would be blocked.

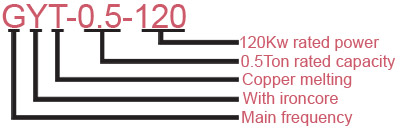

     · Model explanation

GYT Series Cored Main Frequency Induction Smelting Furnace

Model

Rated Capacity

Max Capacity

Rated Power

Transformer Capacity

Rated Voltage

Melting Rate

Rated Temperature

Power Consumption

Water Consumption

Kg

Kg

Kw

Kva

Vac

T/Hr

oC

KwH/T

T/Hr

GYT-0.15-45

150

300

45

60

380

0.2

1250

330

2

GYT-0.3-75

300

700

75

100

380

0.4

1250

320

3

GYT-0.5-120

500

900

120

160

380

0.6

1250

310

5

GYT-0.75-180

750

1200

180

240

380

0.9

1250

310

6

GYT-1-240

1000

1500

240

320

380

1.2

1250

300

6

GYT-1.5-320

1500

2200

320

430

380

1.8

1250

300

6

GYT-3-600

3000

4000

600

800

380

3.5

1250

290

8
