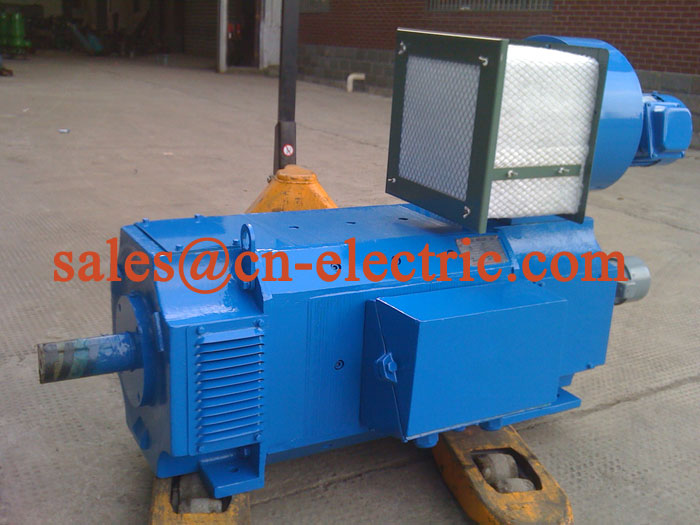

1piece 109Kw DC Motor Z4-200-32 was shipped for Bandar Abbas Iran on Aug 23 2012.

Some information about this DC motor is as below:

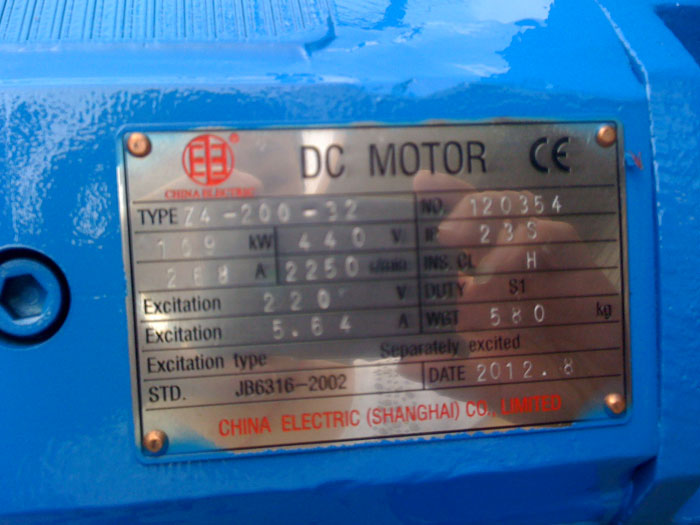

Z4-200-32, 109Kw, Rated Speed 2250RPM

Armature Voltage: 440Vdc, Armature Current: 268A

Field Voltage: 220Vdc, Field Current: 5.64A

Cooling: IC06(with cooling fan & filter fix at the driving end)

Fan Power: 3phase,380V,50Hz,

Protection: IP23S,

Insulation class H,

Mounting: B3,

Duty: S1

Ambient temp. 40oC,

Max. Altitude 1000m

Winding and bearing with PT100 for thermal protection

NSK Bearing from Japan

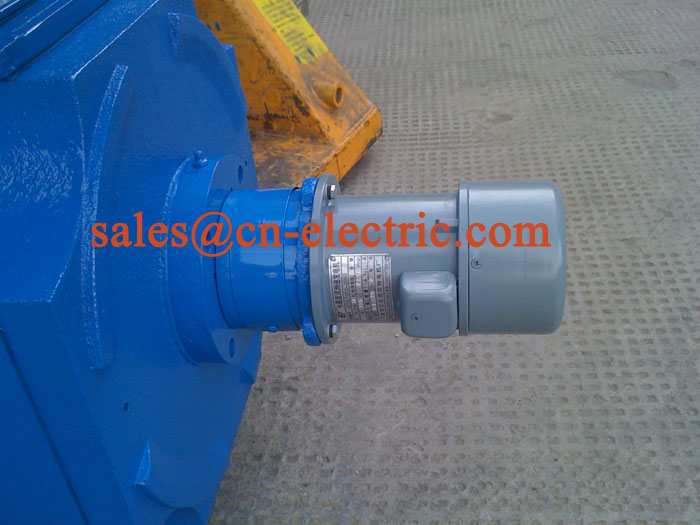

Tachogenerator ZYS-12A, 270V, 0~4500rpm
