1pc 375kw DC Motor Z4-315-12 with matched Parker DC Driver was shipped for Callao-Peru on Oct 2nd, 2012.

Information for the DC Motor:

Model: Z4-315-12                                     Rated power: 375Kw(500HP)                 Power source: 380VAC/60Hz/3phase

Armature voltage: 440VDC                       Field voltage: 180VDC                            Speed: 1750/1900 RPM

Cooling method:  IC06                              Protection rating: IP21S                          Duty: S1

Insulation class: F                                      Mounting: IM B3                                     With KOYO encoder: TRD-J1000-RZ

With NSK rolling bearing                            With PT100                                             Application: plastic extruder

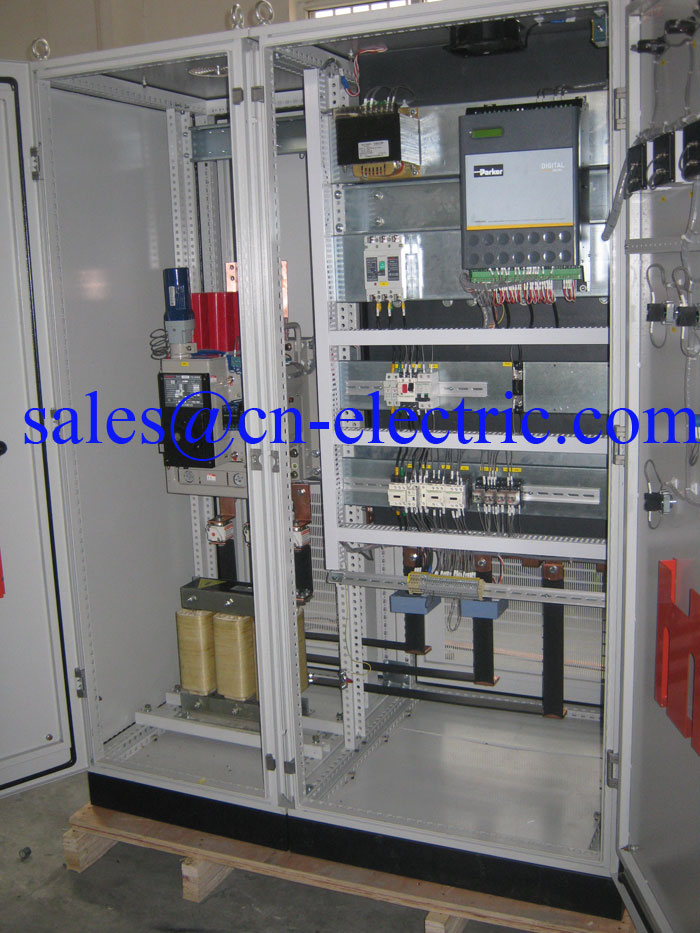

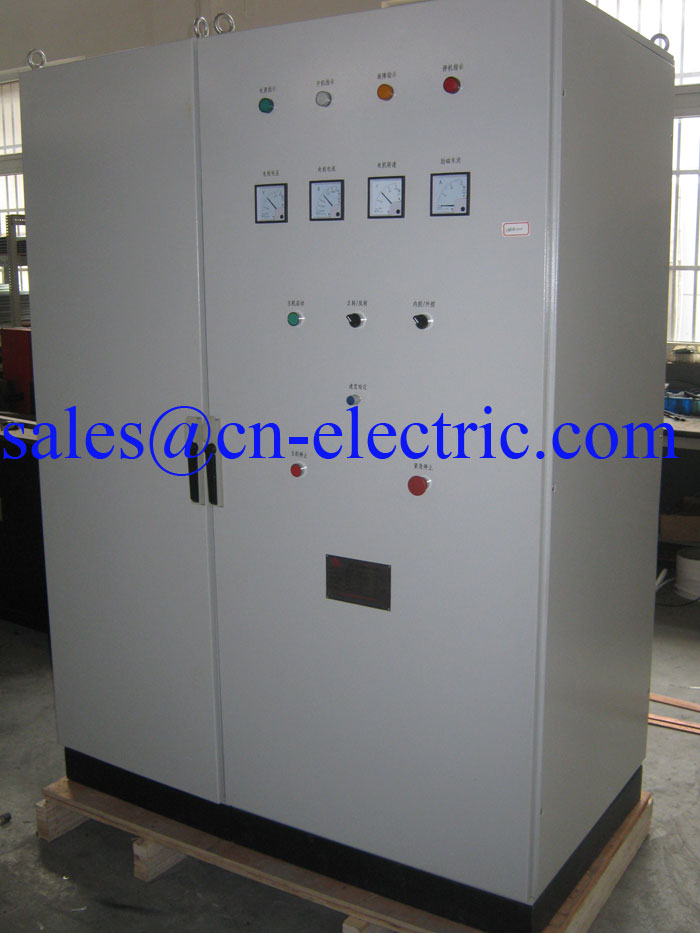

Parker DC Driver Cabinet
