    Product Name: GWG-J Coreless Medium Frequency Induction Melting Furnace Hits: 13189

Original Image
Payment Terms: 30% in advance, balance by T/T or L/C at sight
Minimum Order: 1 set
Package: plywood box and Nude
Brand Name: ELE
Capacity 500kg~50,000kg
Shell Material steel
Tilting Type hydraulic
      ·Data sheet     · Mounting and Overall Dimensions     · Order
     · Application
This GWG-J Series Steel Shell Hydraulic Tilting Coreless Medium Frequency Induction Melting Furnace, also called as Induction Smelting Furnace or Induction Smelting Oven is for melting cast steel, cast iron, stainless steel, copper, aluminum and other metals or its alloy. It can also be used together with self-heated furnaces and electric arc furnace for heating or keeping warm/holding the molten iron and molten steel.

This GWG-J Series Medium Frequency Induction Melting Furnace is particularly suitable for medium-size or big enterprises.

     · Structure Features
1. Solid steel structure and durable;
2. Good magnetic isolation, safe and reliable;
3. Solid frequency conversion power supply, easy operation; Adjustable power rate, easy operation and maintenance;
4. Easy to start up with load or free of load.

     · Performance
Electrical Feature:
1. Digital CMOS chip (U. S. ASIC-2-12), with the highest degree of integration at home, is used in control circuit, the overall machine controlled through one single panel;
2. Frequency-sweep zero voltage start, high success rate, no shock;
3. Automatic resistance adjustment, permanent power output, 10-20% energy saved in comparison with domestic traditional machine of the type;
4. Auto phase sequence adaptation, free of synchronization;
5. Good performance in reload staring, auto recovery;
6. Highly integrated in controlling circuit, free of use of high-rate starter and relay loop, fairly low failure rate;
7. Wholly digital design, strong in anti-interference, no temperature shift when in continuous working;
8. Multi-protection functions (for over current, over voltage, insufficient water pressure, power failure, or phase absence), and mishandling will not cause damage to machine.

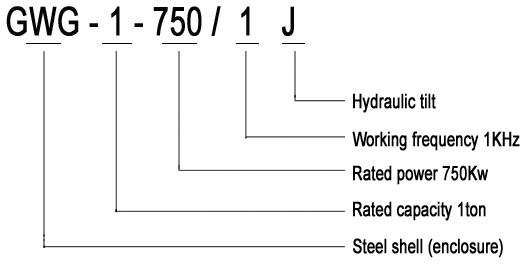

     · Model explanation

Model

Input Power

Input Volt.

Incoming Curr.

Rated Power

DC Curr.

DC Volt.

Melting Rate

Working Freq.

Working Volt.

Rated Capacity

Power Consumption

Kw

V/pulse

A

Kw

A

 V

T/H

 Hz

 V

T

KWH/T

GWG-0.5-250/1J

280

380/6

400

250

500

500

0.4

1000

1500

0.5

770

GWG-0.75-400/1J

400

380/6

650

400

800

500

0.6

1000

1500

0.75

770

GWG-1-750/1J

800

380/6

1200

750

1500

500

0.9

1000

1500

1

720

690/6

700

850

880

500

2600

660

GWG-1.5-1000/0.5J

1100

690/6

912

1000

1140

880

1.2

500

2600

1.5

700

GWG-2-1500/0.5J

1650

690/6

1360

1500

1700

880

1.7

500

2600

2

675

GWG-3-2500/0.5J

2750

690/6

2275

2500

2840

880

2.56

500

2600

3

610

950/6

1700

2080

1250

3200

560

GWG-4-3000/0.5J

3300

690/6

2730

3000

3410

880

3.2

500

2600

4

590

950/6

2040

2500

1250

3200

560

GWG-5-4000/0.5J

4400

950/6

2300

4000

3330

1250

5

500

3400

5

500/550

GWG-6-4000/0.5J

4400

950/12

2300

4000

3330

1250

5

500

3400

6

500/550

GWG-8-5000/0.5J

5000

950/12

3400

5000

4200

1250

7~8

500

3400

8

500/550

GWG-10-6000/0.5J

6300

950/12

3750

6000

4600

1250

9~10

500

3400

10

500/550

GWG-12-8000/0.5J

8000

950/12

4900

8000

6000

1250

10~11

500

3400

12

500-550

GWG-12-8000/0.25J

8000

950/12

4900

8000

6000

1250

10~11

250

3400

12

500-550

GWG-15-8000/0.25J

8000

950/12

4900

8000

6000

1250

9~10

250

3400

15

550-590

GWG-15-10000/0.25J

10000

950/24

6500

10000

8000

1250

13~14

250

3400

15

500-550

GWG-18-12000/0.25J

12000

950/24

8160

12000

10000

1200

13~14

250

3400

18

500-550

GWG-20-12000/0.25J

12000

950/24

8160

12000

10000

1200

13~14

250

3400

20

500-550

GWG-25-14000/0.25J

14000

950/24

9460

14000

11600

1200

13~15

150~200

3400

25

500-550

GWG-30-16000/0.2J

16000

950/24

10850

16000

13300

1200

15~16

150~200

3400

30

500-550

GWG-40-18000/0.2J

18000

950/24

12240

18000

15000

1200

20~22

150~200

3400

40

500-550


     · Equipment Constitution
01. Furnace body------------------------------------------------------------2pcs
02. Hydraulic tilting device (hydraulic center & hydraulic control)--1set
03. Operation table---------------------------------------------------------1pc
04. Medium frequency power supply------------------------------------1pc-6pulse, 2pcs-12pulse, 4pcs-24pulse
05. Low voltage power cabinet-------------------------------------------1pc-6pulse, 2pcs-12pulse, 4pcs-24pulse
06. Capacitor bank (capacitor cabinet)----------------------------------1pc
07. Water cooling cable----------------------------------------------------4pcs, 8pcs or more (connect furnace body and capacitor)
08. Water temperature and pressure annunciator ------------------1pc
09. Furnace leakage alarm------------------------------------------------1pc
10. Crucible mold for making lining---------------------------------------1pc
11. Hydraulic pipe-----------------------------------------------------------1pc
12. Copper bar (copper plate)--------------------------------------------1set(capacitor to power supply, low voltage cabinet to transformer).
13. Water tank (water box)-----------------------------------------------3pcs (1 for furnace body, 1 for capacitor, 1 for power supply).
14. Transformer--------------------------------------------------------------1 or more (optional equipment).

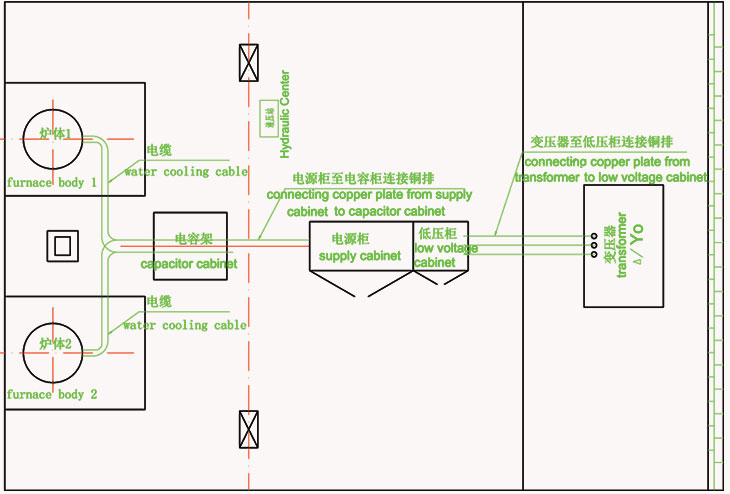

Side View for 6pulse furnace ( as above)

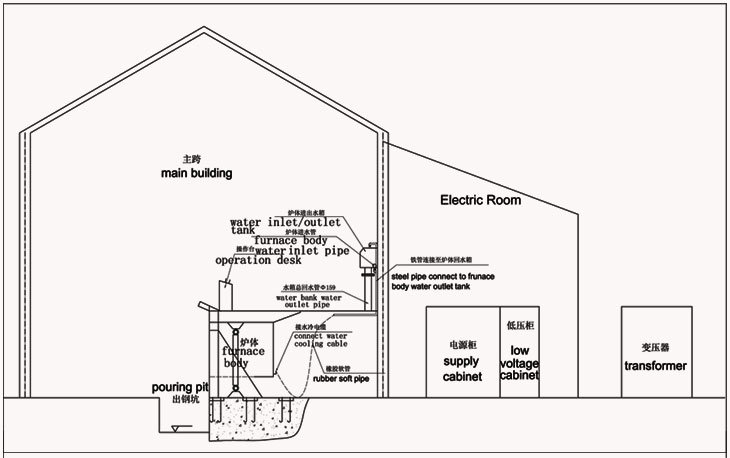

Over View for 6pulse furnace (as above)

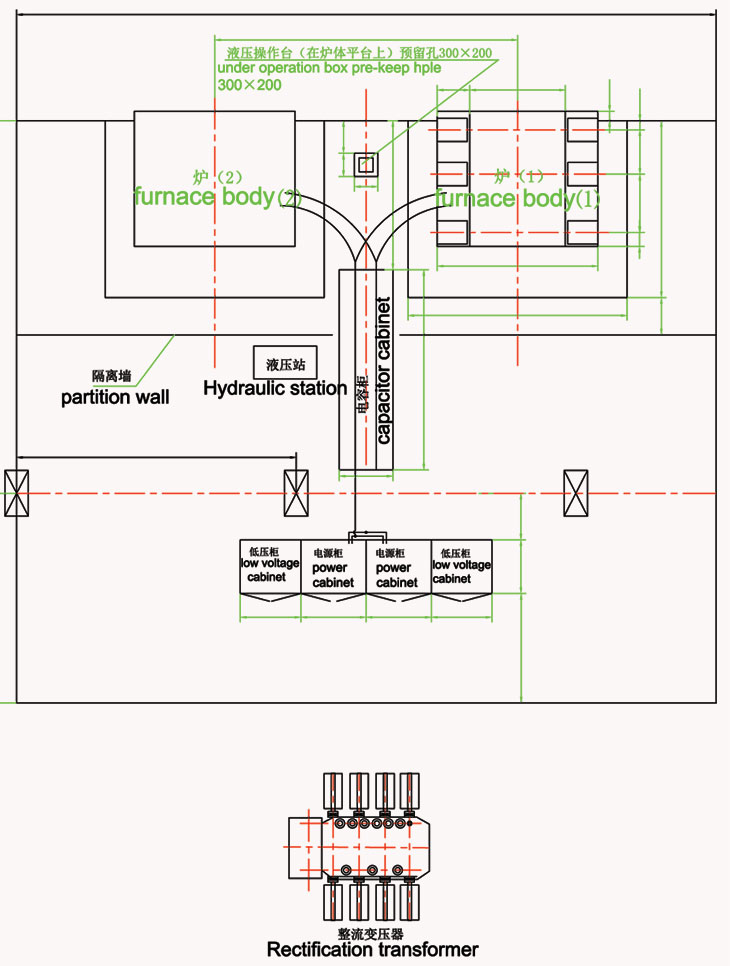

Over View for 12pulse furnace (as above)
