  ICON Vertical Hollow Shaft Motor
    Product Name: VHS Series Vertical Hollow Shaft Motor Hits: 16346

Original Image

Payment Terms: 30% in advance, balance by T/T or L/C at sight
Minimum Order: 1 Piece
Package: plywood box
Brand Name: ELE
Standard IEC
Protection IP23, IP54, IP55
Insulation: Normal class F
Duty: S1
Ambient condition: Normal Temperature 40oC, Normal Altitude 1000m

      ·Data sheet     · Mounting and Overall Dimensions     · Order
     · Features and application
VHS Series IEC standard vertical hollow shaft motor, also called as VHS motor, the latest products of our factory, is three phase squirrel cage induction motors, especially for driving vertical deep well turbine pump.
The motors are of high efficiency, high starting torque, quiet-running, low vibration, low temperature rise, can sustain heavy axial thrust load, have compact and reliable structure with easy maintenance etc. The rated output grades conform to the IEC standard.

After being fitted with vertical pumps, the motors are widely used in pumping underground water in mines, city, farm and factories etc. The degree of protection is weather-protected type1 (drip-proof).

     · Performance

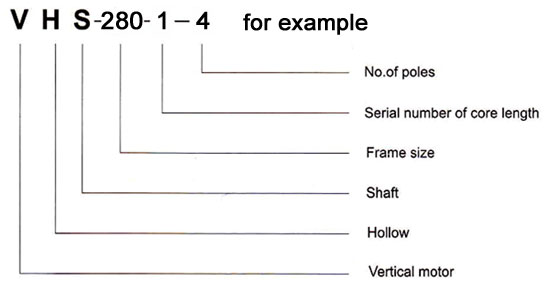

Type

Rated Output

Rated Current

Rated Voltage

Rated Frequency

Synchronous Speed

Efficiency

Power Factor

 hp/kw

 A

 V

 Hz

 r/min

 %



VHS132-1-2

7.5/5.5

11/10.8

380

50/60

3000/3600

83.8

0.88

VHS132-2-2

10/7.5

14.4/14.5

380

50/60

3000/3600

84.8

0.88

VHS160-1-2

15/11

22.5/22

380

50/60

3000/3600

84.5

0.88

VHS160-2-2

20/15

30

380

50/60

3000/3600

85.5

0.88

VHS160-1-4

15/11

23/22.5

380

50/60

1500/1800

86.5

0.85

VHS160-2-4

20/15

30

380

50/60

1500/1800

87.5

0.86

VHS180-1-2

25/18.5

36

380

50/60

3000/3600

87

0.88

VHS180-2-2

30/22

43/42.5

380

50/60

3000/3600

87.5

0.88

VHS180-1-4

25/18.5

37

380

50/60

1500/1800

88

0.86

VHS180-2-4

30/22

43.5/43

380

50/60

1500/1800

88.5

0.86

VHS200-1-2

40/30

58

380

50/60

3000/3600

88

0.88

VHS200-2-2

50/37

70.5/70

380

50/60

3000/3600

88.5

0.88

VHS200-1-4

40/30

58/58.5

380

50/60

1500/1800

89.5

0.87

VHS200-2-4

50/37

72/71

380

50/60

1500/1800

90

0.87

VHS200-3-4

60/45

85/85.5

380

50/60

1500/1800

90.5

0.87

VHS250-1-4

75/55

105.5/103.5

380

50/60

1500/1800

91

0.88

VHS250-2-4

100/75

139.5/140

380

50/60

1500/1800

91.5

0.88

VHS250-3-4

125/90

173/167.5

380

50/60

1500/1800

91.5

0.88

VHS280-1-4

150/110

205.5/202

380

50/60

1500/1800

92

0.88

VHS280-2-4

175/132

238/241

380

50/60

1500/1800

92.5

0.88

VHS280-3-4

200/150

275/276

380

50/60

1500/1800

92.5

0.88

VHS280-4-4

250/185

348/345

380

50/60

1500/1800

92.5

0.88

VHS280-5-4

270/200

374/371

380

50/60

1500/1800

93

0.88

VHS280-6-4

300/220

415/408

380

50/60

1500/1800

93

0.88

VHS315-1-4

250/185

348/345

380

50/60

1500/1800

93

0.88

VHS315-2-4

270/200

374/371

380

50/60

1500/1800

93

0.88

VHS315-3-4

300/220

415/408

380

50/60

1500/1800

93

0.88

VHS315-4-4

350/260

484.5/480

380

50/60

1500/1800

93.5

0.88

VHS355-1-4

400/300

554

380

50/60

1500/1800

93.5

0.88

VHS355-2-4

450/335

623/618

380

50/60

1500/1800

93.5

0.88

VHS355-3-4

500/375

689

380

50/60

1500/1800

94

0.88

VHS355-4-4

600/450

826

380

50/60

1500/1800

94

0.88
