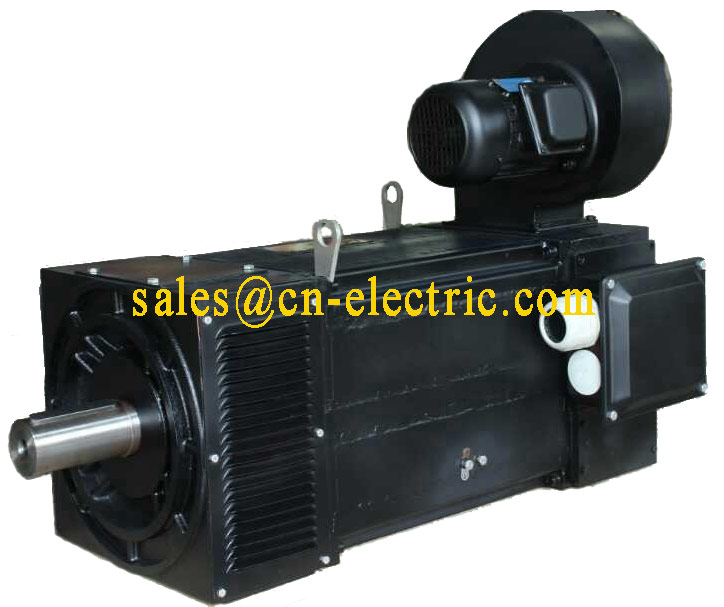

    Product Name: YJP Series Variable Frequency Inverter Motor IC06 IP23 Hits: 2605

Original Image



      ·Data sheet     · Mounting and Overall Dimensions     · Order
     · Features and application
YJP Series Variable Frequency Variable Speed Inverter Motors are suitable to various industrial fields with a novel and compact structure, exquisite appearance, reasonable technical design and economical cost.

1.This type motor has high power density. Each frame has 4-5 output power levels. The motors are small frame size but big power.
2.Square appearance. taking full use of materials. full laminated structure. unique and perfect ventilation system design wins the national patents.
3.Comparing with the standard motors, this YJP series motors have 2~3 steps less frame size. This compact structure takes up less space.
4.According to actual needs, set different base frequency to achieve different base speed;
5.For the 4 pole and base frequency less than 25 Hz motors, the max speed at constant output power can be 4 times of the base speed or even higher.
6.Due to Low inertia rotor, YJP series motors have wide speed range and fast response time. The motors are suitable for frequent starting and speed adjusting application.
7.Motor maximum speed is able to reach 4500 r/min according to special requirements or situations.
8.Motor adopts corona resistant enameled wire and special insulation structure which is suitable for variable frequency drives.
9.In order to reduce the shaft current, grounding brushes are installed in the motors which have frame size bigger than 280 mm.
10.Terminal box and cooling fan can be flexible installed in the places according to customers requirements.

Main Specifications:

Item

Content

Manufacturing and Inspecting Standard

GB755-2008 rotate motor rated data and function ( IEC60034 ) ;

GB10068-2008 vibration and its measurement, evaluation and limits above 56mm frame motor (IEC60034-14);

GB/T 10069.3-2008 Rotation motor electrical noise measurement methods and limits Part 3: Noise limits

Rated Voltage

380 V, 660 V (or other voltage as customer’s request)

Connection

△/ Y

Cooling type

IC06 (with force ventilated blower)

Base frequency

25 Hz, 50 Hz

(or other frequency 19.3 Hz, 33 Hz of 4 pole; 29.3 Hz, 37.5Hz of 6 pole)

Insulation

F

Frame (mm)

112, 132, 160, 180, 200, 225, 280, 355, 400

Working duty

S1 (S6 working duty refers to Form 2)

Enclosure protection

IP23

Sea level

1000 m

Ambient temperature

-15~40oC

Max. voltage tolerance

± 5%

Couple type

Direct coupling

Relative humidity

90%

Thermometer in winding

PTC 140 oC


Form 2

Duty cycle

25%

40%

60%

Service factor

1.30

1.20

1.10


Main applications:

Suitable industry

Driven equipment

Iron and steel

Rolling mill; Coiler; Balancer; Tension machine; Shear

Hoisting, conveying

Lifting; Rotary; Amplitude; Conveyor

Lathe

Main drive

Water treatment

Water supply and sewerage

Oil

Pumping; Oil and gas transmission; Drilling machine

Fluid mechanics

Fan and pump

General machinery

Boiler; Compressor; Wire and cable machinery

Paper making

Beater and extruder

Variable speed

System testing generator

Cement

Rotary kiln; Conveyor machine

Rubber and plastic

Rubber mixer; Plastic extruder

Food

Sugar mill


Cooling bowers:

Motor frame (mm)

160

180/200

225

280

355

400

Blower model

L064

L064

L08

L09

L11/L12

L12

Blower motor model

80M2-2

80M2-2

100L-2

112M2-2

132S1-2

132S1-2

Blower motor output (kW)

1.1

1.1

3

4

5.5

5.5

Blower power supply

380 V/50 Hz (or else as customer’s request)


Power-off brake (optional parts):

Motor frame (mm)

160

180

225

280

Brake model

DZS3-200

DZS3-450

DZS3-600

DZS3-1300

Brake torque (N.m)

300

450

600

1300

Rectifier supply voltage

AC 380 V

Rectifier output voltage

DC 170 V

Brake power (W)

200

200

210

400


Bearing number:

Motor frame (mm)

Drive end

Non-drive end

112

6308 ZZ C3

6308 ZZ C3

132

6309 ZZ C3

6309 ZZ C3

160

6312 ZZ C3

6311 ZZ C3

180

6314 ZZ C3

6214 ZZ C3

200

6316 ZZ C3

6314 ZZ C3

225

6318 C3

6315 ZZ C3

280

6222 C3/6224

6222 C3

355

6226+NU226 C3

NU226 C3

400

6228+NU228 C3

NU228 C3


Motor speed range (r/min)

Motor frame

Rated speed nn

500

600

750

1000

1500

112/132

160/180/200

Max. speed at constant output n1

1000

1200

1500

2000

3000

Max. speed nmax

1200

1400

1800

2400

3600

225

Max. speed at constant output n1

850

1000

1500

2000

3000

Max. speed nmax

1200

1400

1800

2400

3000

280

Max. speed at constant output n1

850

1000

1500

2000

3000

Max. speed nmax

1200

1400

1800

2400

3000

355

Max. speed at constant output n1

1000

1160

1125

1500

2250

Max. speed nmax

1000

1200

1500

1800

2250

400

Max. speed at constant output n1

750

870

1125

1500

1800

Max. speed nmax

1000

1000

1200

1500

2000


     · Model explanation
YJP180P-4 for example
YJP----series number for IC06 IP23 low voltage inverter motor
180----frame size 180 mm
P------iron core length code (K/S/M/L/P/X)
4------no. of poles


Data Sheet:

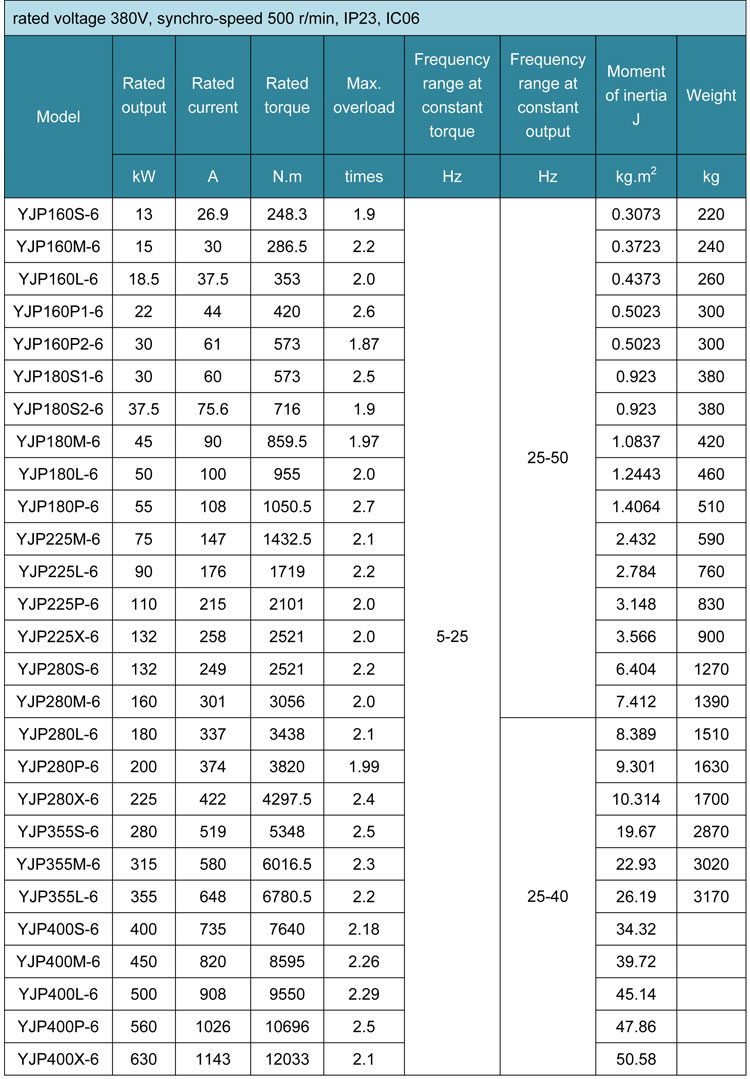

 6 pole 25 Hz

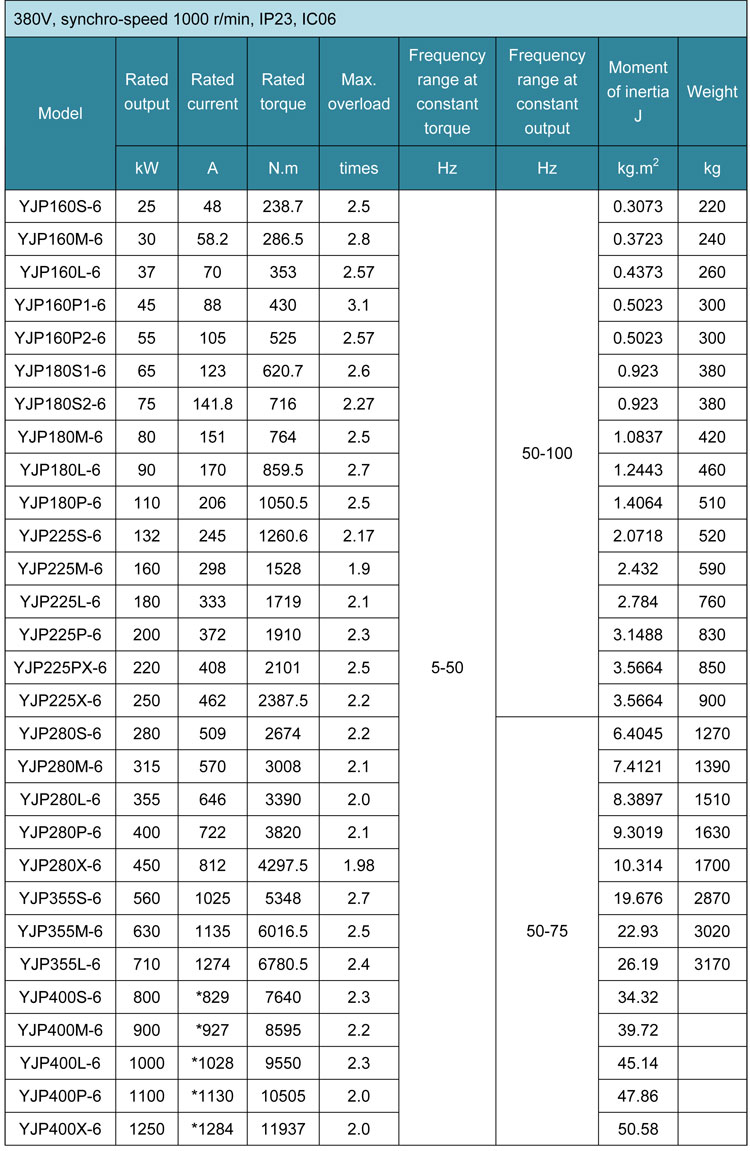

 6 pole 50 Hz
