  ICON Induction Furnace, Arc Furnace, Vacuum Furnace
    Product Name: GW-JJ Coreless Medium Frequency Induction Melting Furnace Hits: 14493

Original Image
Payment Terms: 30% in advance, balance by T/T or L/C at sight
Minimum Order: 1 set
Package: plywood box and Nude
Brand Name: ELE
Capacity 10kg~5,000kg
Shell Material Aluminum
Tilting Type Mechanical (using electric motor and gear)
      ·Data sheet     · Mounting and Overall Dimensions     · Order
     · Application

This GW-JJ Series Aluminum Shell Mechanical Tilting Coreless Medium Frequency Induction Melting Furnace, also called as Induction Smelting Furnace or Induction Melting Oven is for melting cast steel, cast iron, stainless steel, copper, aluminum and other metals or its alloy. It can also be used together with self-heated furnaces and electric arc furnace for heating or keeping warm/holding the molten iron and molten steel.

This GW-JJ Series Medium Frequency Induction Melting Furnace is particularly suited to small and medium-size enterprises, or as Precision Casting Material Test.


     · Performance

Electrical Feature:
1. Digital CMOS chip (U. S. ASIC-2-12), with the highest degree of integration at home, is used in control circuit, the overall machine controlled through one single panel;
2. Frequency-sweep zero voltage start, high success rate, no shock;
3. Automatic resistance adjustment, permanent power output, 10-20% energy saved in comparison with domestic traditional machine of the type;
4. Auto phase sequence adaptation, free of synchronization;
5. Good performance in reload staring, auto recovery;
6. Highly integrated in controlling circuit, free of use of high-rate starter and relay loop, fairly low failure rate;
7. Wholly digital design, strong in anti-interference, no temperature shift when in continuous working;
8. Multi-protection functions (for over current, over voltage, insufficient water pressure, power failure, or phase absence), and mishandling will not cause damage to machine.

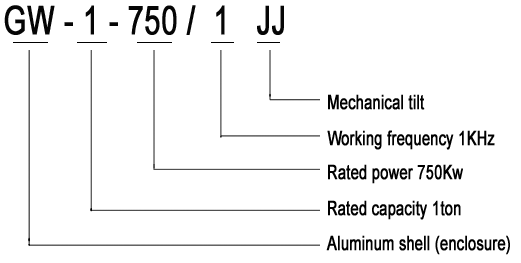

     · Model explanation



Model

Input Power

Input Volt. (6pulse)

Incoming Curr.

Rated Power

DC Curr.

DC Volt.

Melting Rate

Working Freq.

Working Volt.

Rated Capacity

Power Consumption

Kw

V

A

Kw

A

 V

T/H

 Hz

 V

T

KWH/T

GW-0.01-50/2.5JJ

60

380

76

50

140

400

0.06

2500

750

0.01

850

GW-0.03-100/2.5JJ

100

380

160

100

200

500

0.09

2500

750

0.03

850

GW-0.05-100/2.5JJ

100

380

160

100

200

500

0.12

2500

750

0.05

800

GW-0.08-100/2.5JJ

100

380

160

100

200

500

0.12

2500

750

0.08

800

GW-0.15-100/1JJ

100

380

160

100

200

500

0.15

1000

750

0.15

820

GW-0.25-160/1JJ

180

380

256

160

320

500

0.24

1000

750

0.25

790

GW-0.5-250/1JJ

280

380

400

250

500

500

0.4

1000

1500

0.5

770

GW-0.75-400/1JJ

400

380

650

400

800

500

0.6

1000

1500

0.75

770

GW-1-500/1JJ

550

380

800

500

1000

500

0.8

1000

1500

1

750

GW-1-750/1JJ

800

380

1200

750

1500

500

0.9

1000

1500

1

720/660

690

700

850

880

500

2600

GW-1.5-1000/0.5JJ

1100

690

912

1000

1140

880

1.2

500

2600

1.5

700

GW-2-1500/0.5JJ

1650

690

1360

1500

1700

880

1.7

500

2600

2

675

GW-2-2000/0.5JJ

2200

690

1400

2000

2275

880

1.9

500

2600

2

650

GW-3-2500/0.5JJ

2750

690

2275

2500

2840

880

2.56

500

2600

3

610/560

950

1700

2080

1250

3200

GW-5-4000/0.5JJ

4400

690

2300

4000

4540

880

4.5

500

2600

5

500/550

950

2700

3330

1250

3200


     · Structure
Simple structure
Mechanical tilting (using electric motor and gear box)
Cast aluminum shell
Easy maintenance

     · Equipment Constitution
1. Furnace body----------------------------------2pcs
2. Mechanical Tilting device--------------------2sets (electric motor & reducer, 1 set for each furnace body)
3. Medium frequency power supply----------1pc
4. Low voltage power cabinet----------- -----1pc
5. Capacitor bank (capacitor cabinet)--------1set
6. Water cooling cable--------------------------4pcs or 8pcs (connect furnace body with capacitor)
7. Crucible mold----------------------------------1pc (for making lining)
8. Copper bar (copper plate)------------------1set (connect capacitor with power supply)
9. Water tanks (water box)--------------------3pcs (1 for furnace body, 1 for power supply, 1 for capacitor)

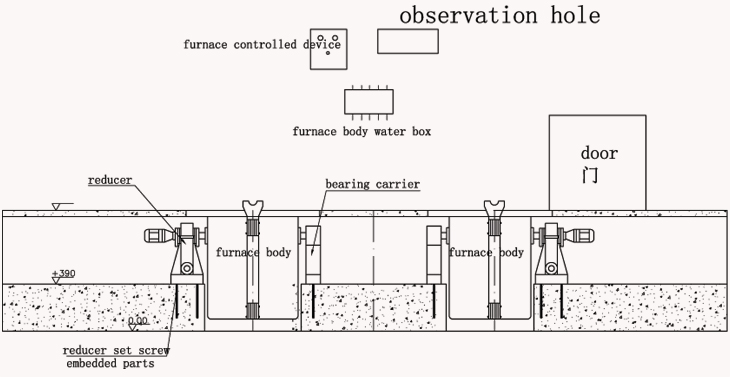

 Front View (as above)

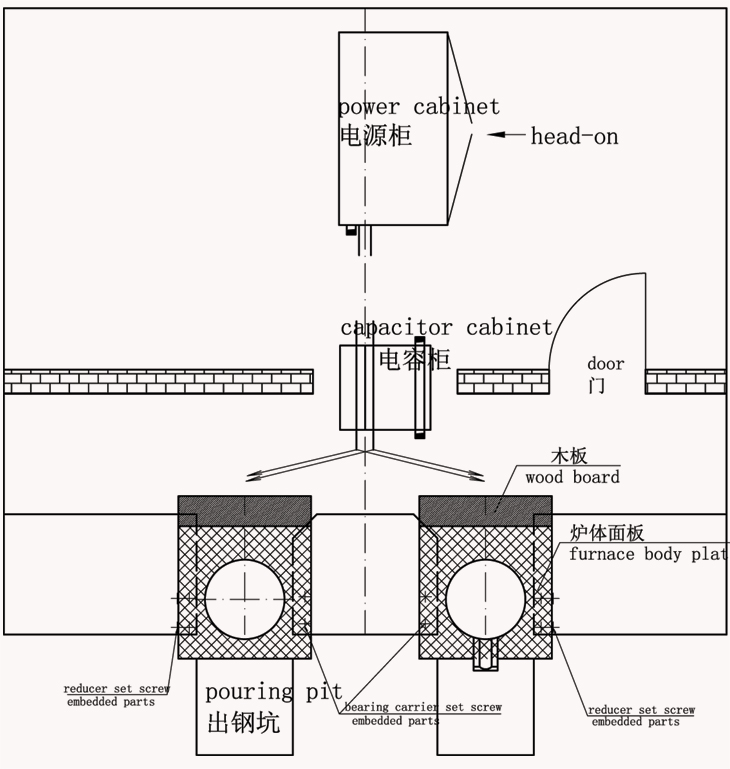

Over View (as above)

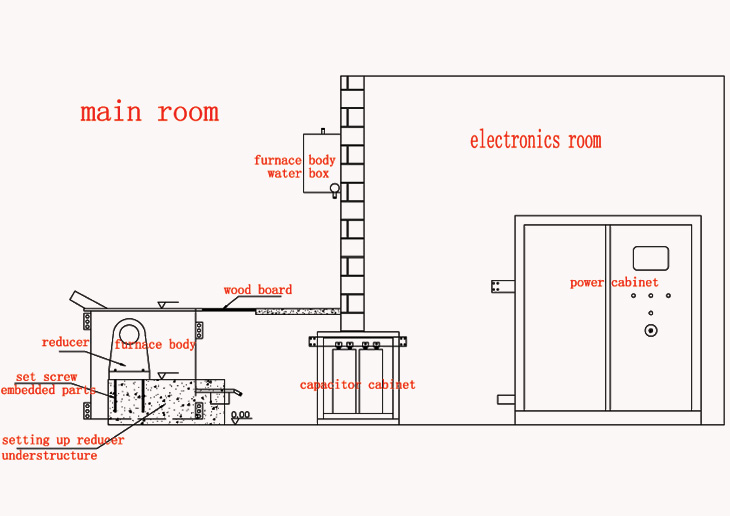

Side View (as above)

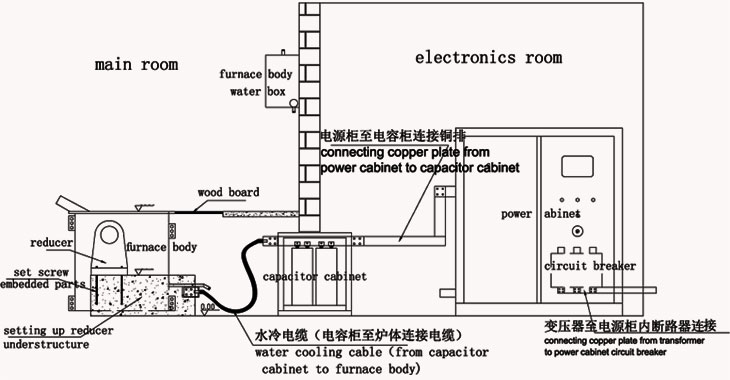

Electric connection (side view)
