A set of 100kg Medium Frequency Induction Furnace was shipped from Shanghai to Mersin, Turkey on DEC. 30th, 2010.

The technical data for this 100kg Induction furnace is as below:

Model: GW-0.1-100/2.5JJ

Rated capacity: 100kg (0.1 Ton)

Rated power: 100kw

Working Frequency: 2.5kHz

Tilting type: Mechanical tilting by electric motor

Power input: 3phase, 380Vac, 50Hz

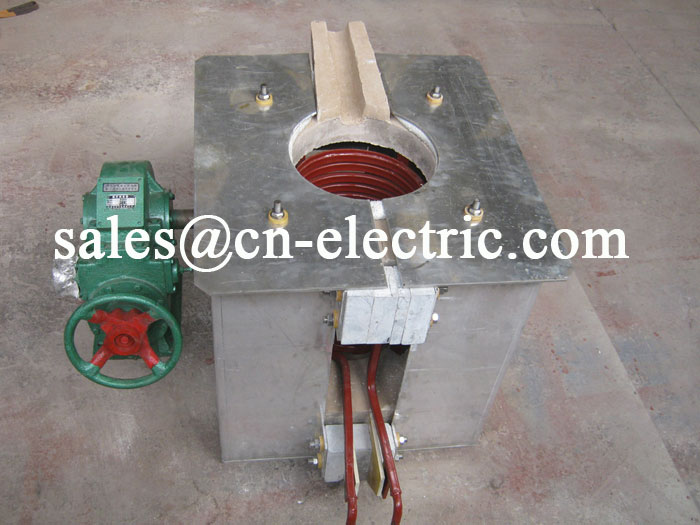

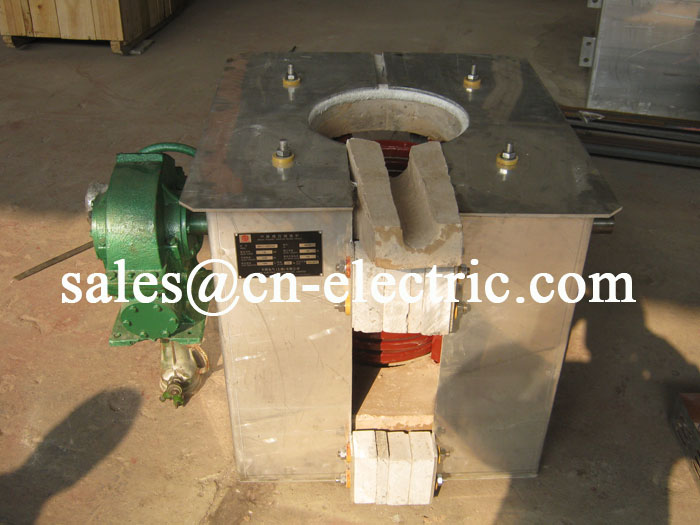

Some pictures for this 100kg induction melting furnace are as below:

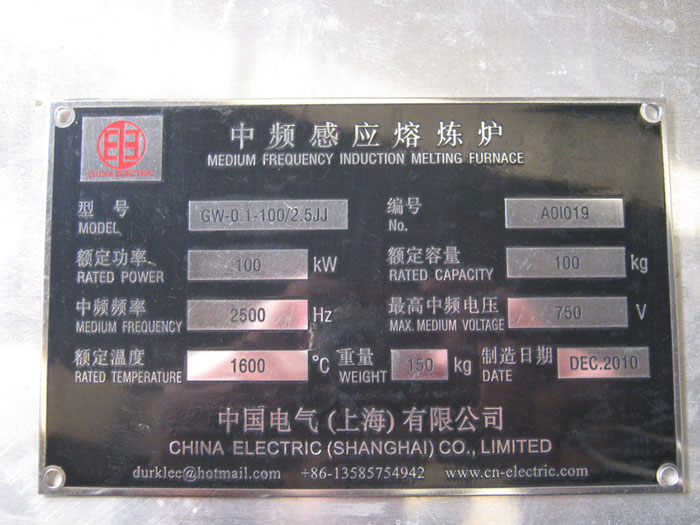

Nameplate on 100kg Induction Furnace Body
