 　  Product Name: Vacuum Medium Frequency Induction Melting Furnace Hits: 24354

Original Image
      ·Data sheet 　　  · Order
     · Application
ZG Series Medium frequency Vacuum Induction Melting Furnace is suited for melting and casting of special steel, high temperature alloy, precision alloys, nickel-based alloy, superalloy, rare earth metal, activated metal, copper and copper alloys, hydrogen storage materials, neodymium iron boron, and magnetic material  under vacuum or protective atmosphere for scientific research institutes and manufacturers.. This kind of furnace is also used for precision casting of machine parts under vacuum.

     · Performance

1. Power Supply: 380V, 3Phase, 50Hz

2. Ultimate Pressure: 6.67X10-2 Pa

3. Working Vacuum Degree: 6.67X10-1 Pa

4. Pressure Rising Rate: Max. 0.067 Pa/min



Model

Rated Power

Working Voltage

Working Frequency

Capacity of Crucible

Cubage of Crucible

Max. Working Temp.

Melting Rated

Cooling Water Consumption

Kw

V

Hz

Kg

L

C

Kg/h

 m3/h

ZG-3C

25

200

4000

3

0.48

1700

6

~0.8

ZG-10

25

375

1500~2500

10

1.6

1600

8

~1

ZG-25

100

375

1500~2500

25

4

1600

20

~1

ZG-50

100

375

1500~2500

50

8

1650

25

~4

ZG-150

200

375

1500~2500

150

21.5

1800

100

~6

ZG-500

400

250

1500~2500

500

70

1800

300

~20

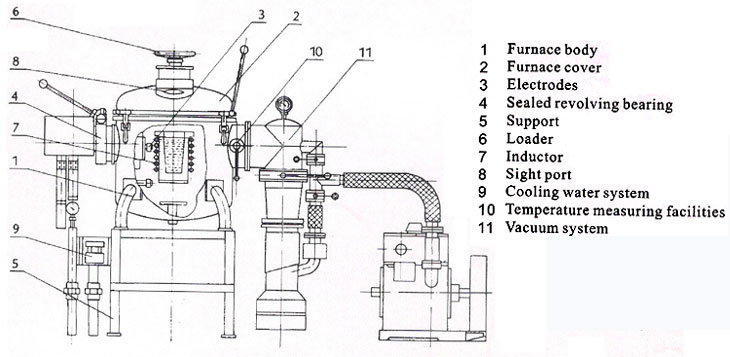

     · Structure
