One set of 160Kw 250kg Medium Frequency Induction Furnace was shipped from Shanghai for Bandar Abbas, Iran on Jan. 15th, 2011.

The technical data for this 250kg Induction furnace is as below:

Model: GW-0.25-160/1JJ

Rated capacity: 250kg (0.25 Ton)

Rated power: 160kw

Working Frequency: 1kHz (1000Hz)

Furnace Body: Aluminum shell

Tilting type: Mechanical tilting by electric motor and gear box

Power input: 3phase, 380Vac, 50Hz

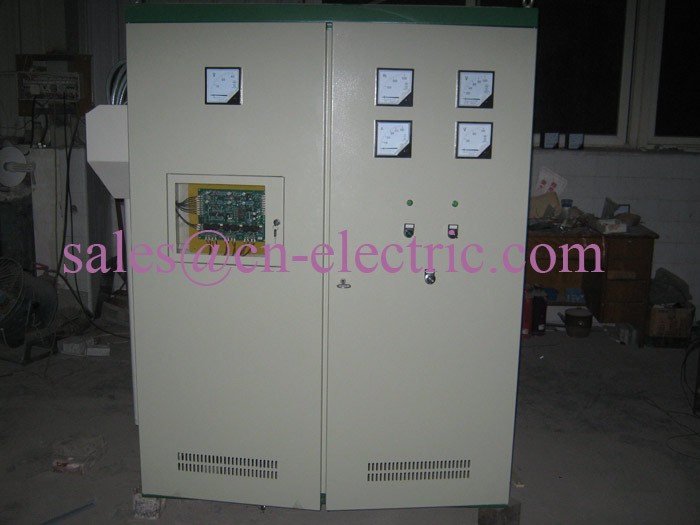

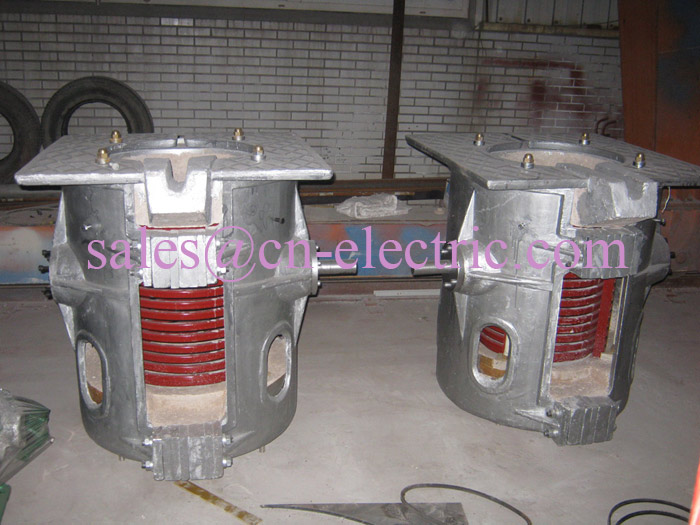

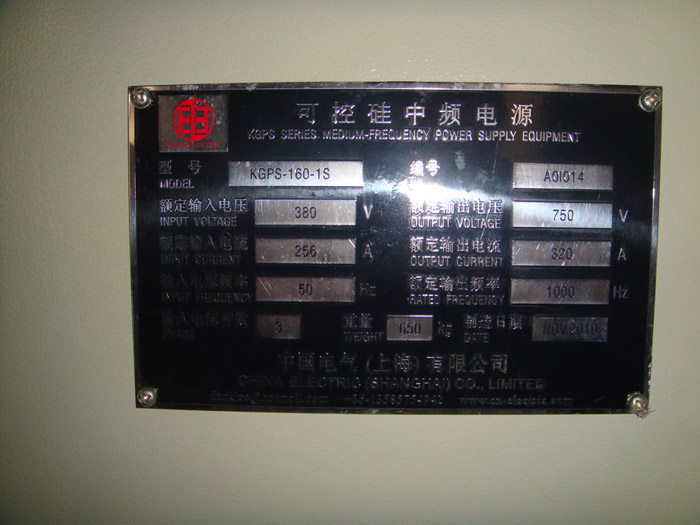

Some pictures for this 250kg induction melting furnace are as below:

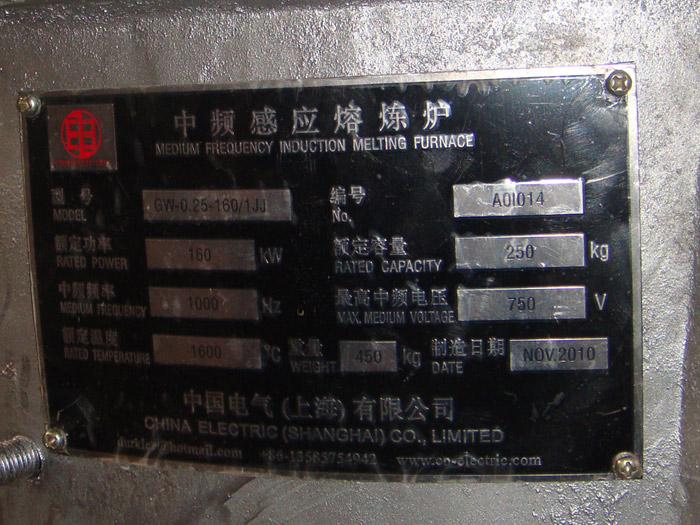

Nameplate on 250kg Induction Furnace Body
