A pc of Z4 series DC Motor Z4-180-42 was shipped for Bangkok, Thailand on April 10th, 2011

Some information about this DC motor is as below:

Rated Power:81Kw

Rated Speed:2710RPM

Armature Voltage: 400Vdc

Field Voltage: 220Vdc

Cooling: IC06(with cooling fan & filter fix at the commutator end)

Fan Power 3phase,380V,50Hz,

Protection: IP23,

Insulation class H, Temperature rise F

Mounting: B3,

Duty: S1

Ambient temp. 40oC,

Max. Altitude 1000m

Winding and bearing with PTC for thermal protection

Using SKF Bearing from Sweden

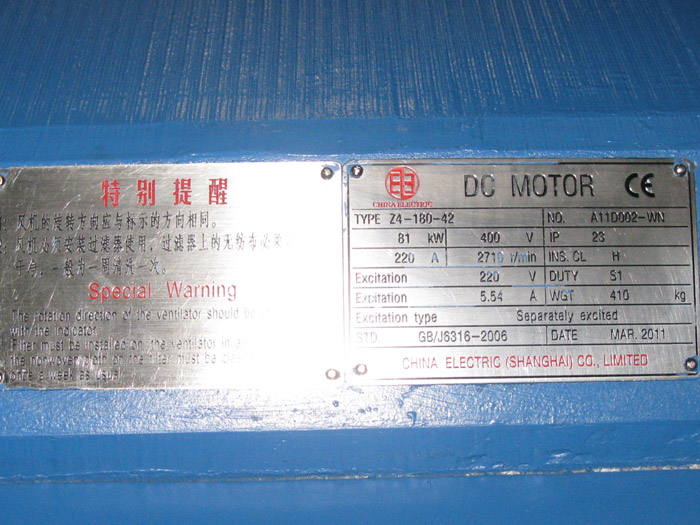

Name plate

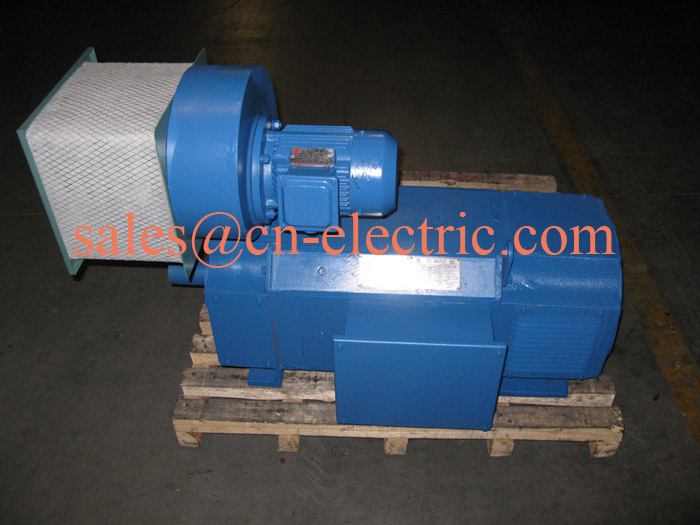

DC Motor
