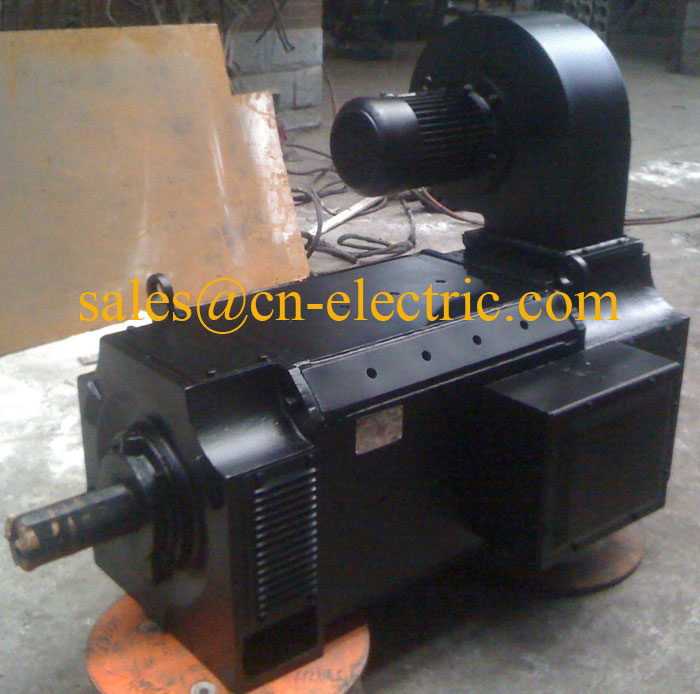

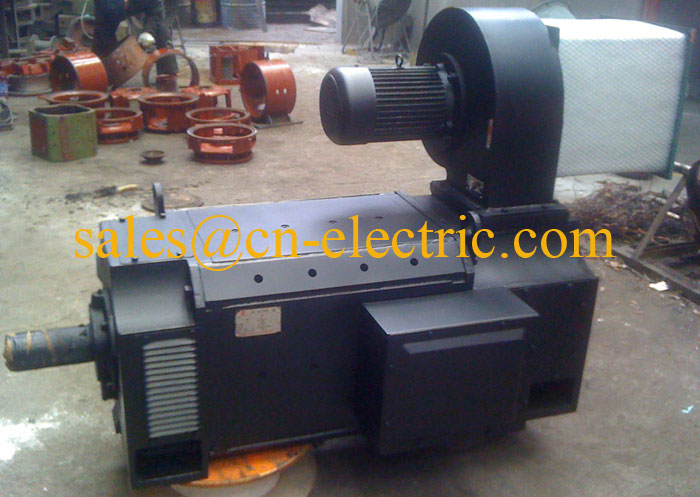

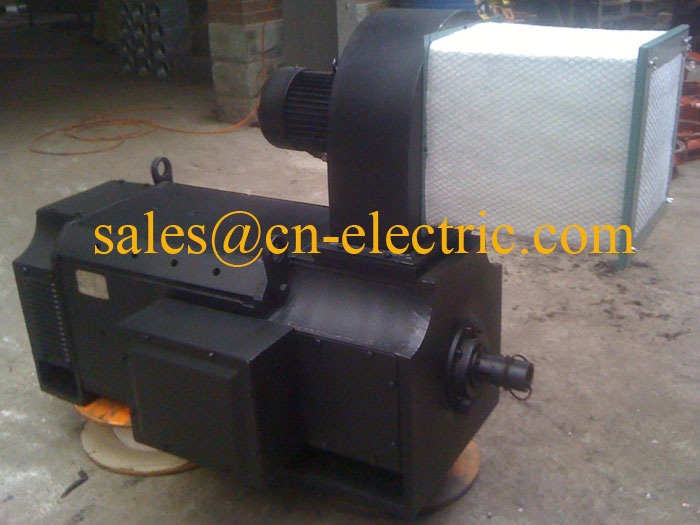

1PC of 180Kw DC Motor Z4-250-42 was shipped for Malaysia on Mar. 4th, 2012

The information about this DC Motor is as below:

Model: Z4-250-42

Rated Power: 180Kw,

Speed: 1134/1500RPM

Armature Voltage: 440V,

Field Voltage: 310V,

Cooling: IC06,

Protection: IP23,

Insulation class H,

Mounting: IM B3 (foot mounted),

Max. Ambient temperature 40oC,

Max. Altitude 1000m,

Terminal box: right side see from the driving end,

Color: black as buyer's request,

Position of the blower: at top of non-driving end as buyer's request, with air filter (3phase/ 415V/50Hz power supply for fan)

With thermal protection. (PT100 for both bearing and winding)

SKF Brand from Sweden

With KOYO Encoder for speed feedback

With Epoxy paint
