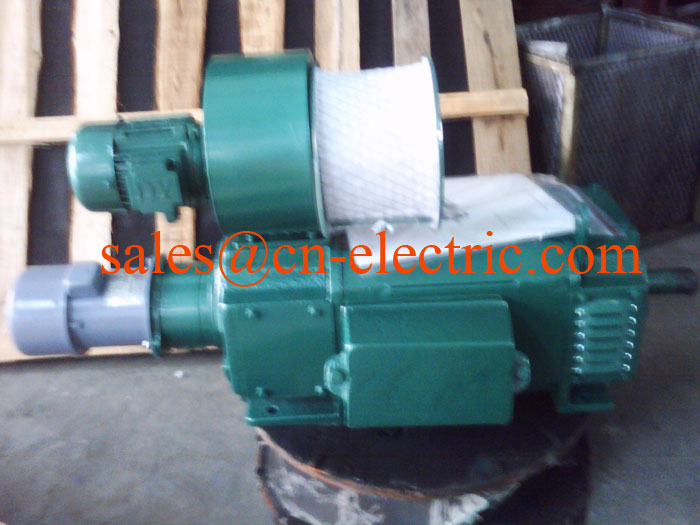

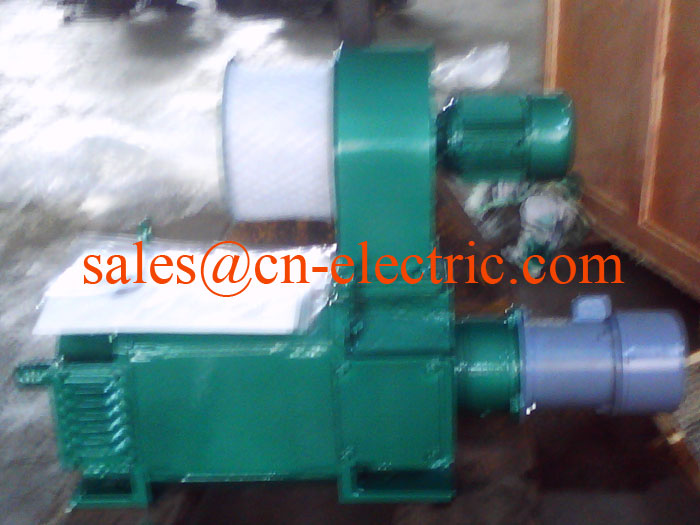

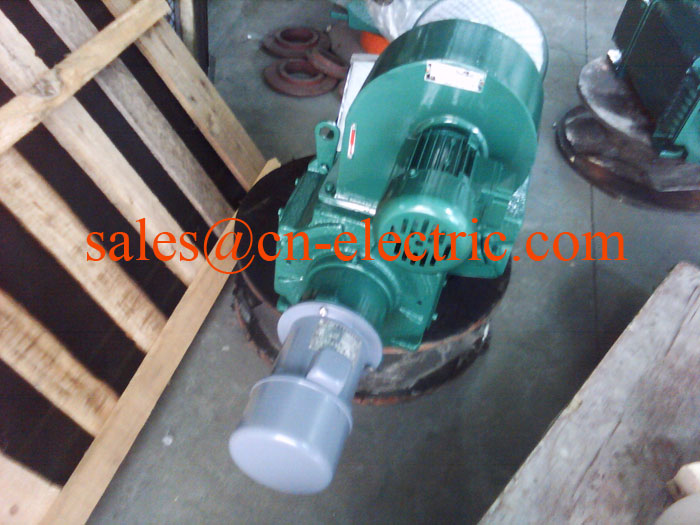

2PCS of Z4 Series DC Motors were shipped for Port Kelang, Malaysia on May 05, 2012

Some information about these DC motors is as below:

1. Z4-112/2-2, 5.5KW, 2300/3500rpm

2. Z4-112/4-2, 7.5KW, 1500/1800rpm

Armature Voltage: 440Vdc

Field Voltage: 310Vdc

Cooling: IC06(with cooling fan & filter fix at non-driving shaft end)

Fan Power: 3phase,415V,50Hz,

Protection: IP21S,

Insulation class F,

Mounting: B3,

Duty: S1

Ambient temp. 40oC,

Max. Altitude 1000m

Winding with PT100 for thermal protection

With tachogenerator: model ZYS-12A, 270VDC, 0~4500rpm

Terminal box: left hand side (see from driving end)

Using NSK Bearing from Japan
