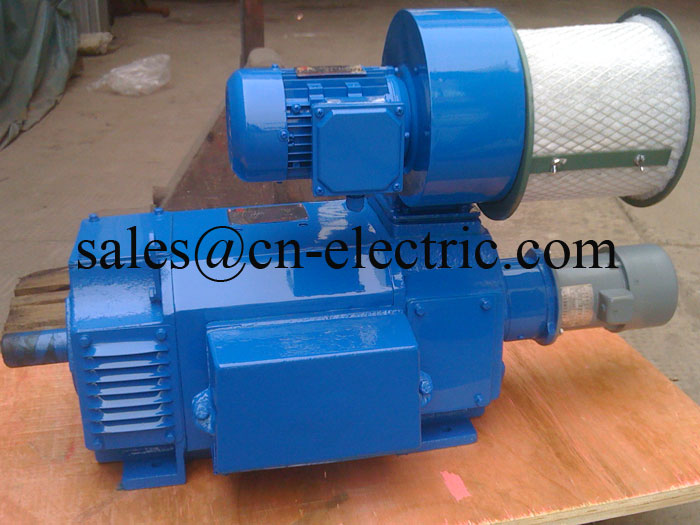

1PC of Z4 Series DC Motors were shipped for Port Kelang, Malaysia on June 21, 2012

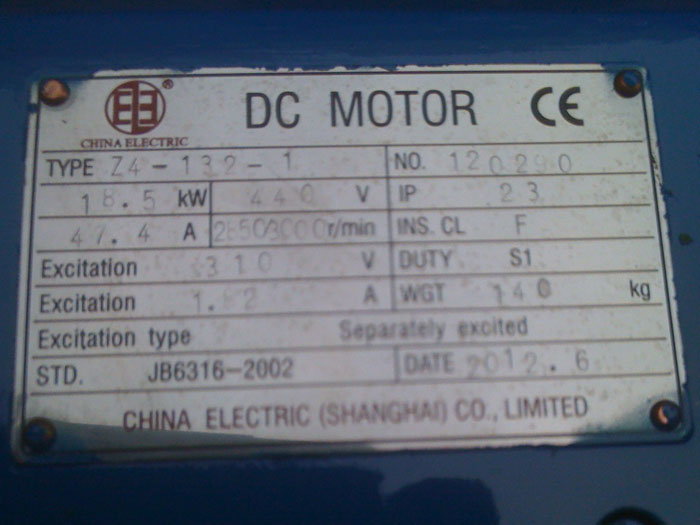

Some information about this DC motor is as below:

Z4-132-1, 18.5Kw, 2850/3000RPM

Armature Voltage: 440Vdc

Field Voltage: 310Vdc

Cooling: IC06(with cooling fan & filter fix at the commutator end)

Fan Power: 3phase,415V,50Hz,

Protection: IP23,

Insulation class F,

Mounting: V6,

Duty: S1

Ambient temp. 40oC,

Max. Altitude 1000m

Winding and bearing with PT100 for thermal protection

Using NSK Bearing from Japan
