1set 1ton capacity 750kw medium frequency induction melting furnace GWG-1-750/1J with matched 940Kva rectifier transformer and closed circle water cooling tower were shipped for VLADIVOSTOK, RUSSIA on Jan 26, 2013.

1Ton Induction Furnace:

Model: GWG-1-750/1J                        Rated Capacity: 1Ton                                      Rated Power: 750Kw

Working Frequency: 1000Hz              Power source: 380V/50Hz/3phase-4 wire      Capacitor bank: 1000Kvar x12pcs

Type: GWG-J series steel shell hydraulic tilting                                                         With furnace cover(lid)

940Kva Rectifier transformer

Model: ZS-940/6-0.4                         Rated Capacity: 940Kva                                   Type: rectifier transformer

Primary voltage (input): 6Kv/50Hz/3phase                                     Secondary voltage(output): 380V/50Hz/3phase-4 wire

Cooling method: Oil-Natural Air-Natural (ONAN)                             Cooling medium: 25# transformer Oil

Water cooling tower

Model: YBN-70                                    Rated Capacity: 70Ton/Hour                            Type: closed water circle

Power source: 380V/50Hz/3phase     Working pressure: 0.35Mpa

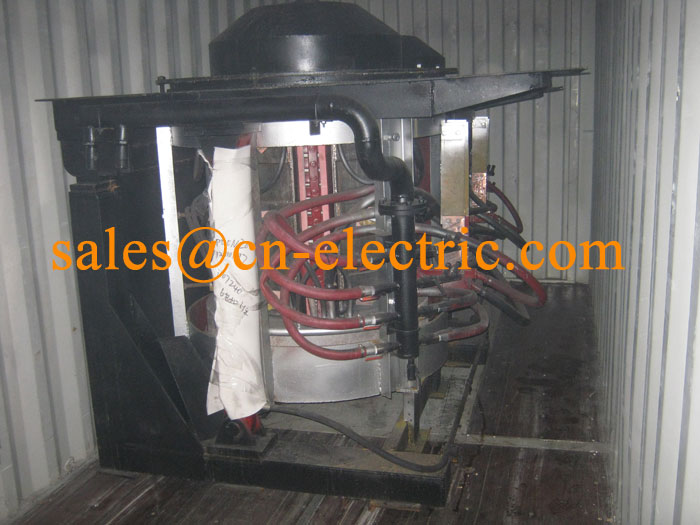

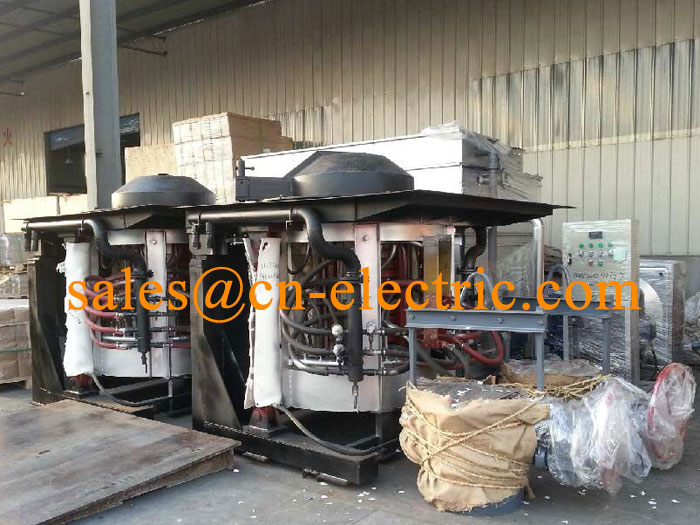

1Ton Furnace Body (2pcs)

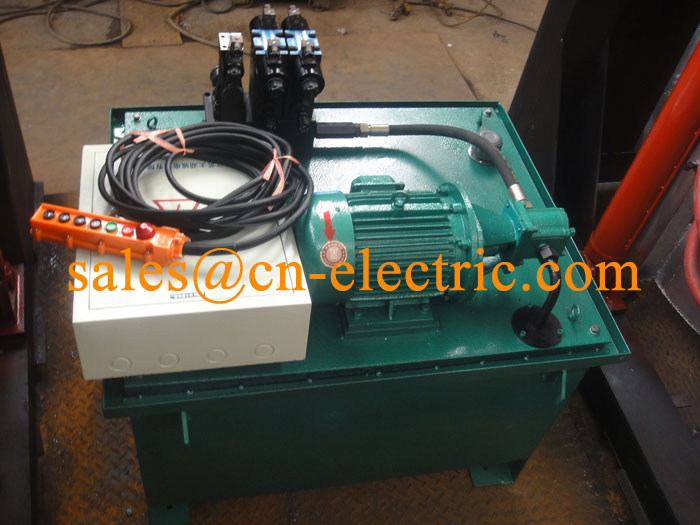

Hydraulic station

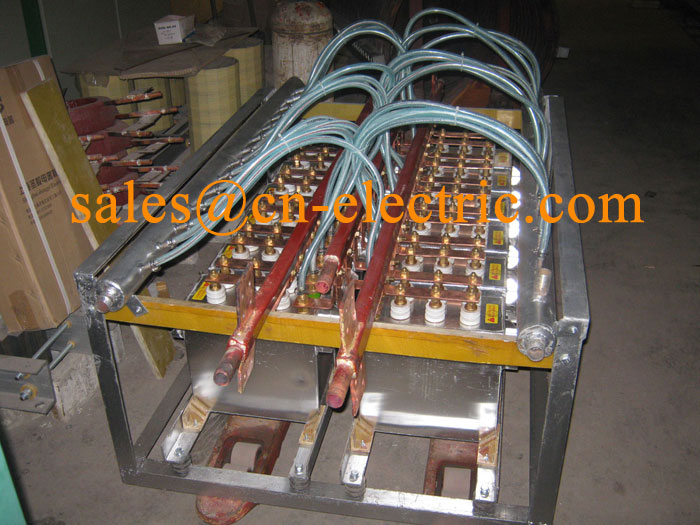

12000Kvar Capacitor bank (12pcs x 1000kvar)

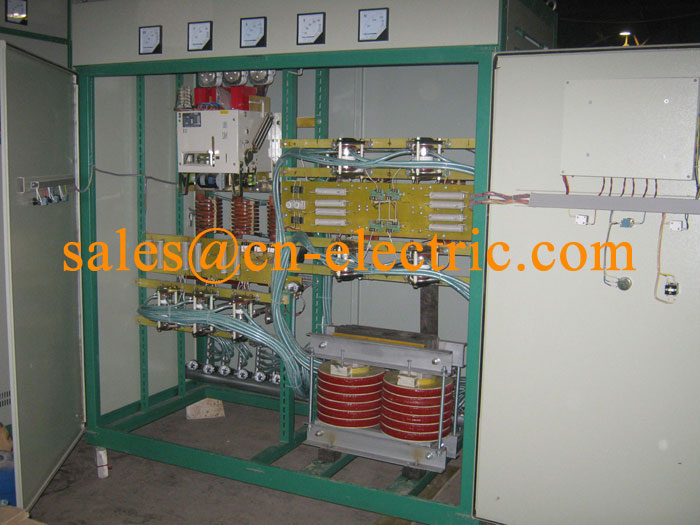

750Kw Power Supply Cabinet

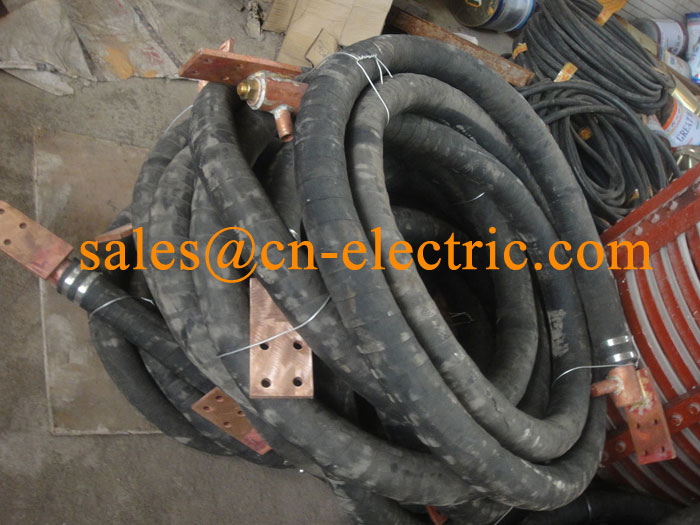

Water cooling cables (from furnace body to capacitor bank, 8pcs, Φ280mm*5.2m)

940Kva rectifier transformer

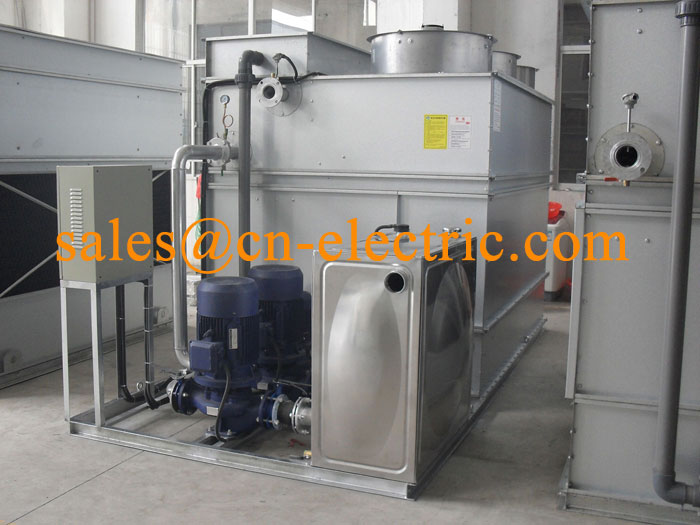

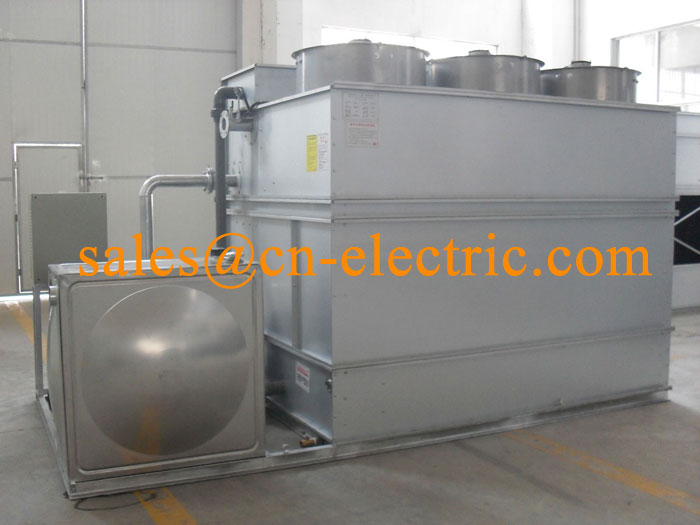

Closed Circle Water Cooling Tower

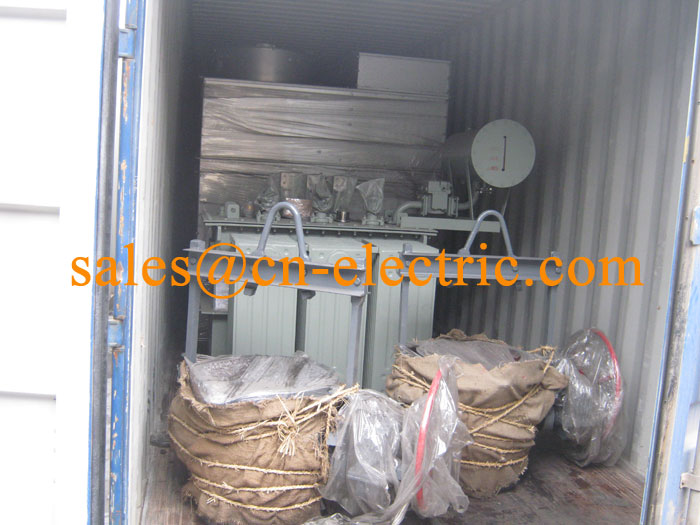

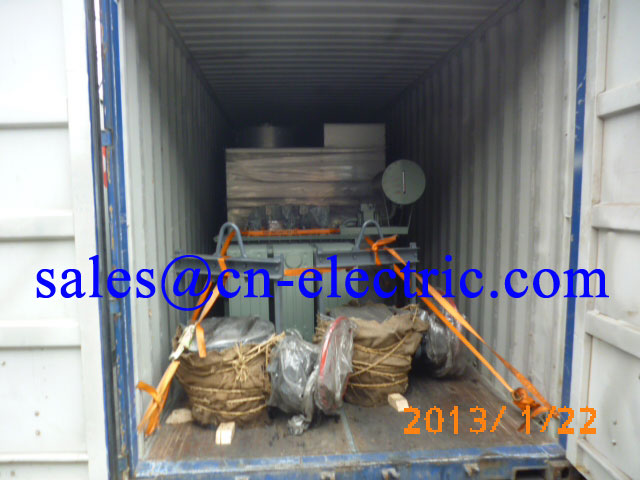

Water cooling tower, transformer, 0.5T hot metal ladles (In container)
