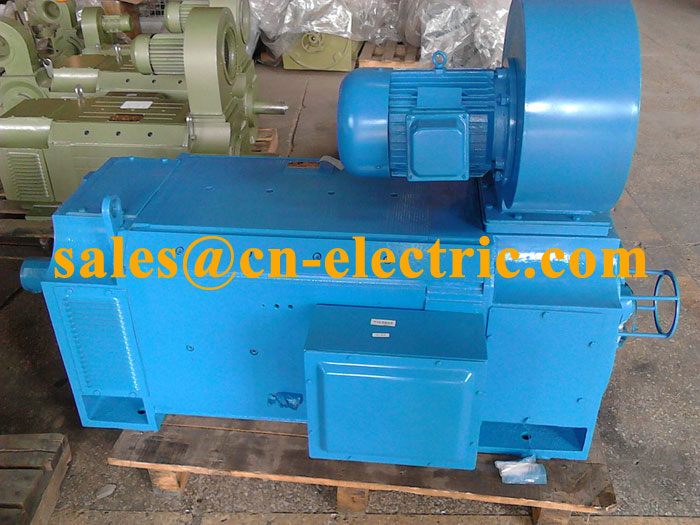

2PCS of ZFQZ series Frequently start and brake DC Motors for Flying Shear were shipped for Bangkok-Thailand on May 12,2013
Model: ZFQZ-280-41B Ratd Power: 120KW Speed: 600/1200RPM
Armature voltage:400VDC Field Voltage: 310VDC
General Technical Specifications:
1. Insulation: class H, Temperature rise: F
2. Mounting Type: IMB3 ( IM1001 )
3. Winding with 4pcs PT100 for each motor. Each bearing with 1pc of PT100
4. With CE Certification
5. P+F encoder, model: RHI90N-OHAAAR61N-1024
6. Duty: S1
7. Protection rating: IP23
8. Cooling Method: IC06 (cooling by blower, with filter, power supply 380V/50Hz/3phase)
9. Max. Ambient temperature 40oC, Max. Altitude 1000m
10. Bearing: SKF Brand
11. With space heater, power supply 220V/50Hz/single phase.
12. Terminal box: at right side see from the driving end
13. Overload capacity is 150% 60 sec.
|

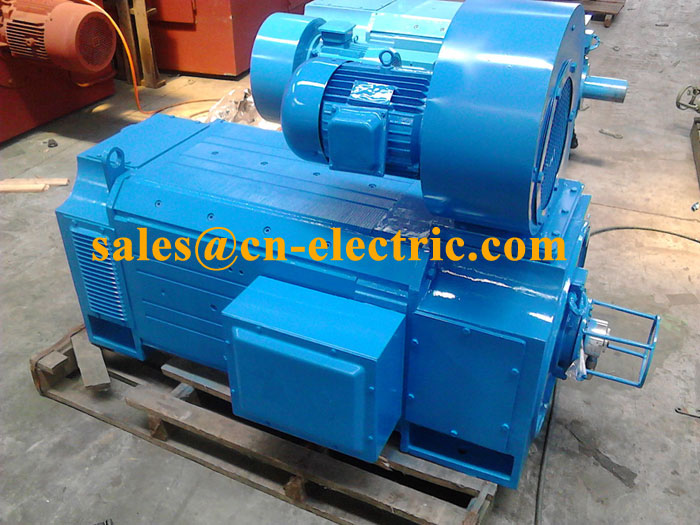

2PCS of ZFQZ series Flying Shear DC Motors shipped for Thailand on May 12,2013
