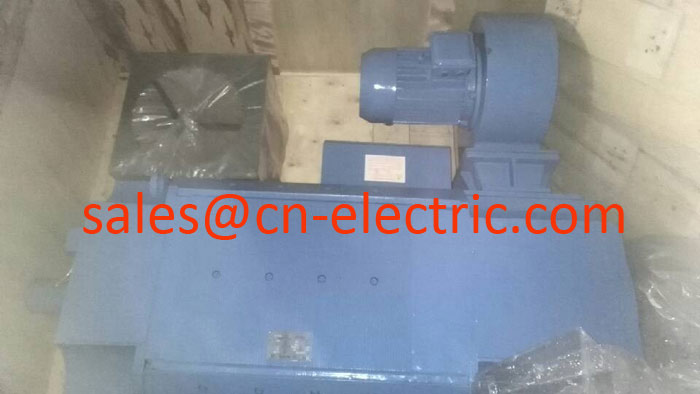

One piece Z4 series DC Motor was shipped for Manzanillo-Mexico on July 12,2013

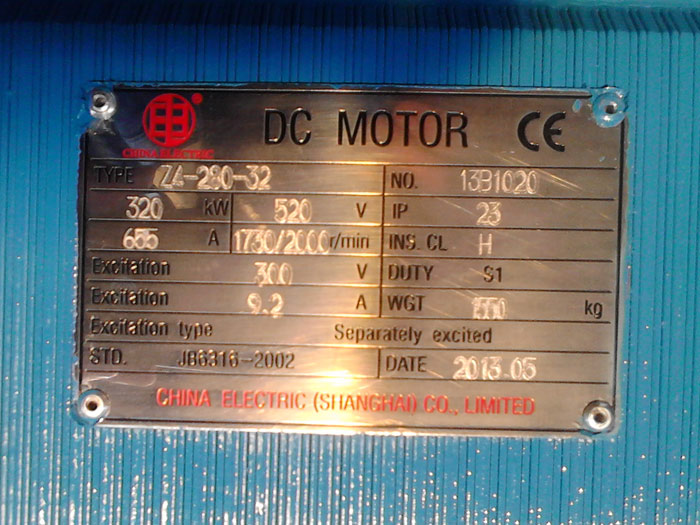

Model: Z4-280-32 Ratd Power: 320KW Rated speed: 1730RPM
Armature voltage:520VDC Field Voltage: 300VDC
General Technical Specifications:
1. Insulation: class H, Temperature rise: F
2. Mounting Type: IMB3 ( IM1001 )
3. Winding with 4pcs PT100 for each motor. Each bearing with 1pc of PT100
4. With CE Certification
5. KOYO brand encoder, model: TRD-J1000-RZ
6. Duty: S1
7. Protection rating: IP23
8. Cooling Method: IC06 (cooling by blower, with air inlet filter, power supply 440VAC/60Hz/3phase, mounted at left hand side of Non-driving end)
9. Max. Ambient temperature 40oC, Max. Altitude 1000m
10. Bearing: SKF Brand
11. Terminal box: at left side see from the driving end
12. Overload capacity is 150% 60 sec.
|

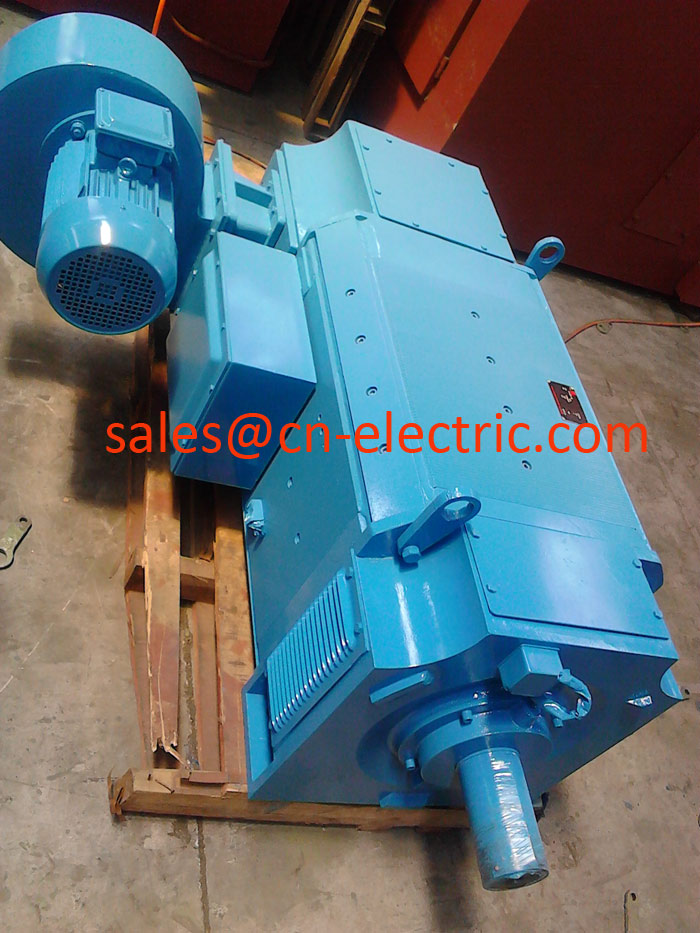

320kw DC Motor Z4-280-32 was shipped for Mexico on July 12, 2013
