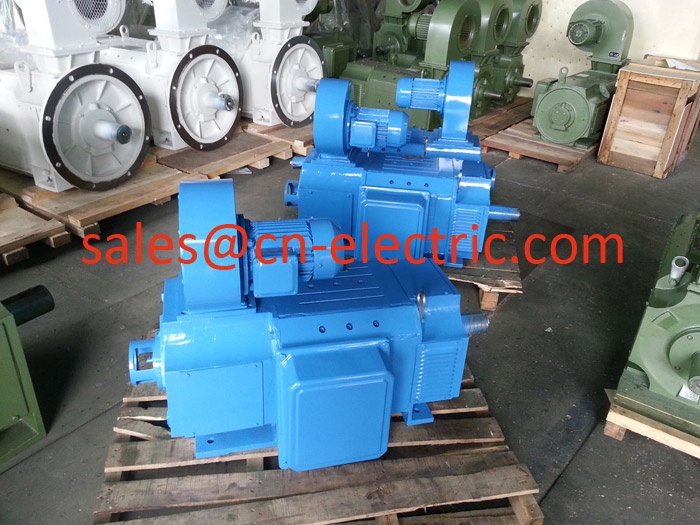

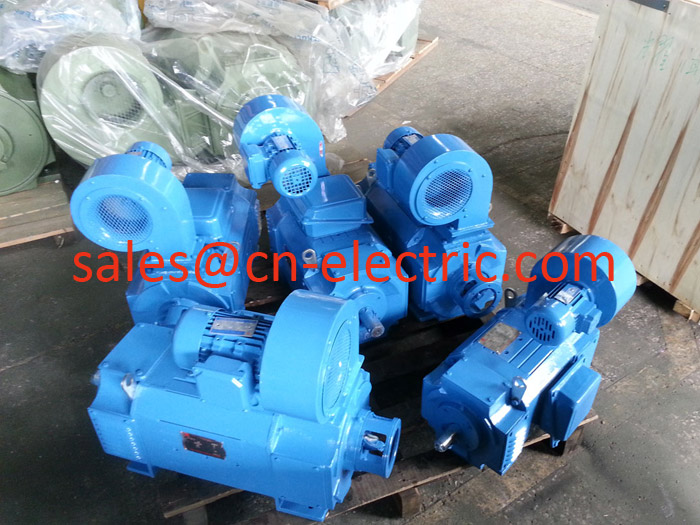

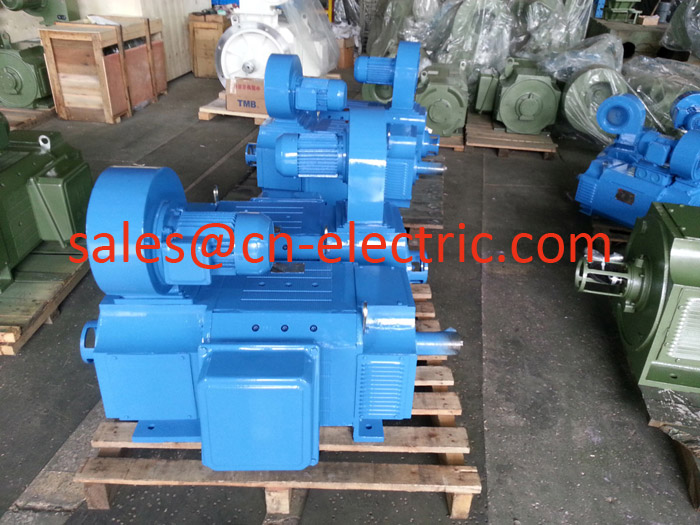

14 PCS Z4 series Medium Size DC Motors were shipped to Bangkok-Thailand on Sep.24,2013

Some information about these DC motors is as below:

1. Z4-112/2-1, 2.8Kw, 1340/3000RPM, 400Vdc, T-box: RHS, 1pc

2. Z4-132-1, 18.5Kw, 2610/4000RPM, 400Vdc, T-box: top, 1pc

3. Z4-132-2, 15Kw, 1510/2500RPM, 440Vdc, T-box: top: 3pcs

4. Z4-160-32, 49.5Kw, 2710/3500RPM, 400Vdc, T-box: LHS, 1pc

5. Z4-200-12, 99Kw, 2710/3000RPM, 400Vdc, T-box: LHS, 7pcs

6. Z4-250-21, 185Kw, 1500/2200RPM, 440Vdc, T-box: RHS, 1pc

Field Voltage: 220Vdc                                  Cooling: IC06,with cooling fan & filter fix at commutator end

Fan Power: 3phase,380V,50Hz,                    Protection: IP23,

Insulation class H, Temperature rise F            Mounting: B3 (foot mounted),

Duty: S1                                                        Ambient temp. 40oC,

Max. Altitude 1000m                                     Winding and bearing with PT100 for thermal protection

Using SKF Bearing from Sweden
