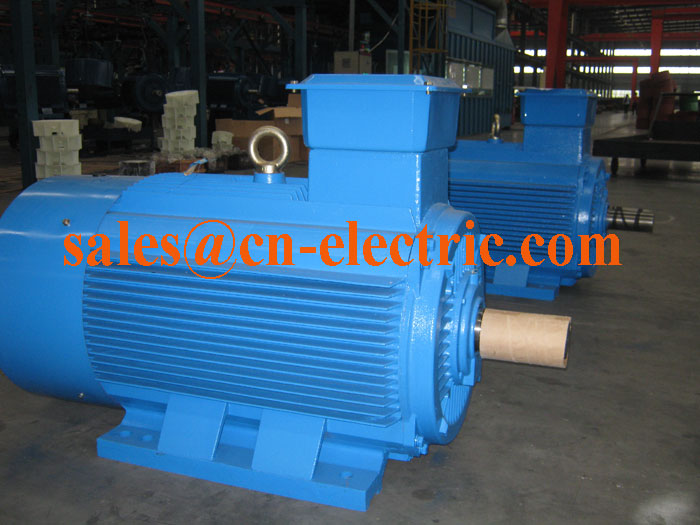

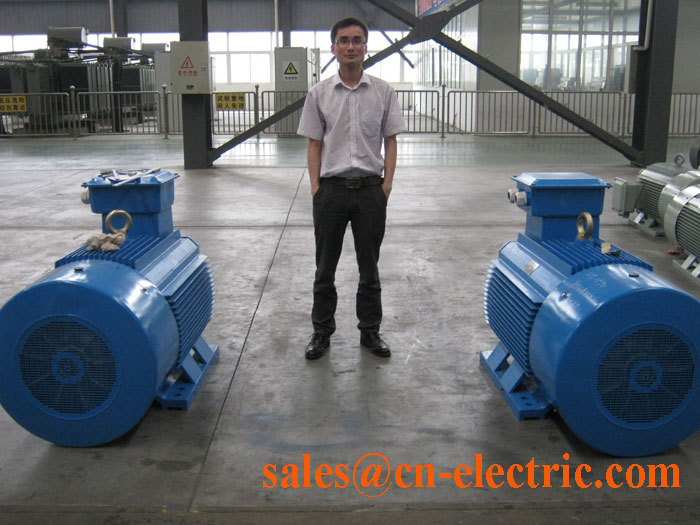

1PC Y2-315M-4 / 132KW and 2PCS Y2-355L2-4 / 315KW 380V/ 50Hz/ 3 Phase Low Voltage AC motors were shipped for Lattakia, Syria on June 14th, 2014

The Y2-315M-4 / 132Kw AC Motor is equipped with 2pcs PT100 for bearings (1pc each bearing), 6pcs PT100 for windings (2pc each phase)

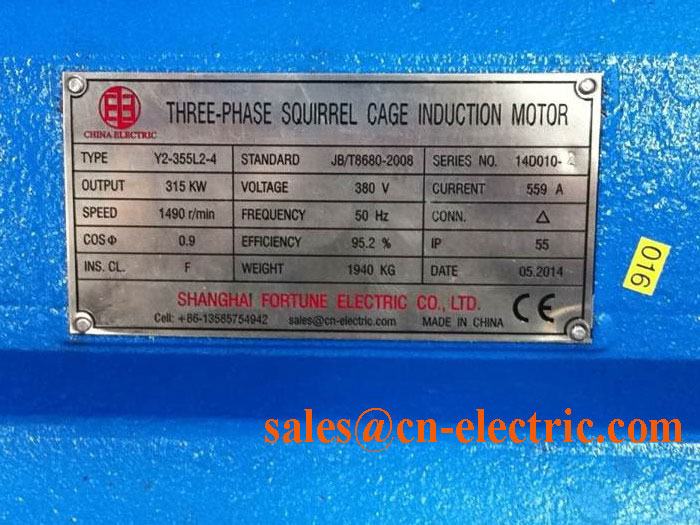

Technical specifications for all motors:

1. Insulation class: F
2. Cooling method: IC411, TEFC
3. Protection rating: IP55
4. Service factor: 1.0
5. Terminal Box Position: Top of motor
6. Bearing type for Both Side (DE & NDE): Rolling bearing
7. Material of windings: Red Copper
8. Material of main motor body: cast iron
9. Rotating direction: Bi-direction
10. Duty: S1 (continuous )
11. Rotor type: Squirrel-cage rotor
12. Ambient temperature: -15oC~+40oC, Max. Altitude: 1000m
13. Standard: IEC
14. Mounting: IMB3 (IM1001, Horizontal, foot mounted, without flange)
15. Speed and Frequency variability: constant
16. Energy Efficiency class: IE2 or EFF1
17. With Anti Corrosive Epoxy Painting
18. Surface Painting Color of the motor: bule RAL5015 or as request of buyer
19. Connection: △
20. Coupling type: Direct Coupling
21. Shaft extension: single cylindrical shaft extension
