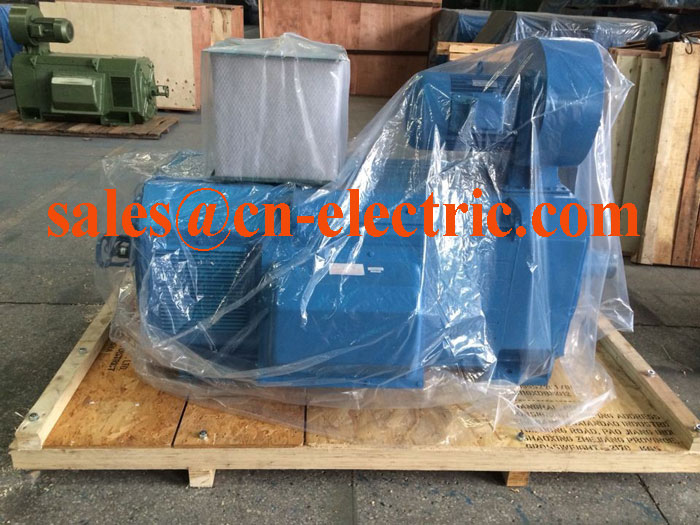

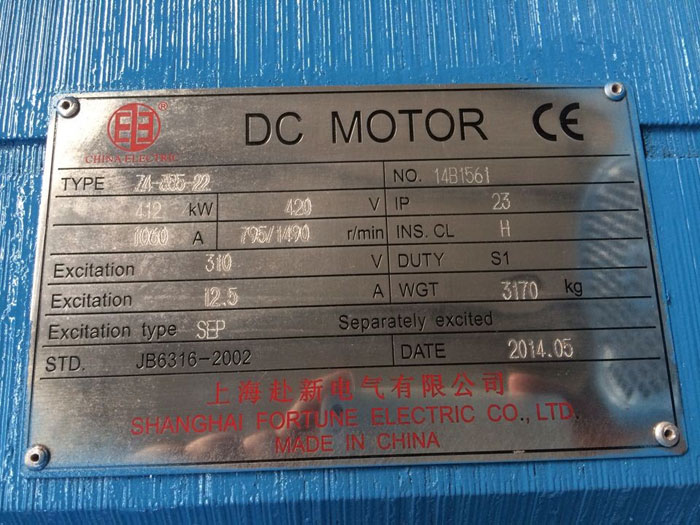

1pc of 412kw, armature voltage 420VDC, field voltage: 310VDC, rated speed 795r/min, field weakening speed: 1490r/min, DC Motor Z4-355-22 was shipped for Port Sudan, Sudan on June 9th, 2014

Technical specifications:

1. Insulation class F
2. Mounting Type: IMB3 ( IM1001, Horizontal, foot mounted, without flange)
3. With 6pcs PT100 in all windings and bearings as thermal protection
4. With CE Certification
5. With KOYO encoder TRD-J1000-RZ for speed feedback.
6. Duty: S1
7. Protection rating: IP23

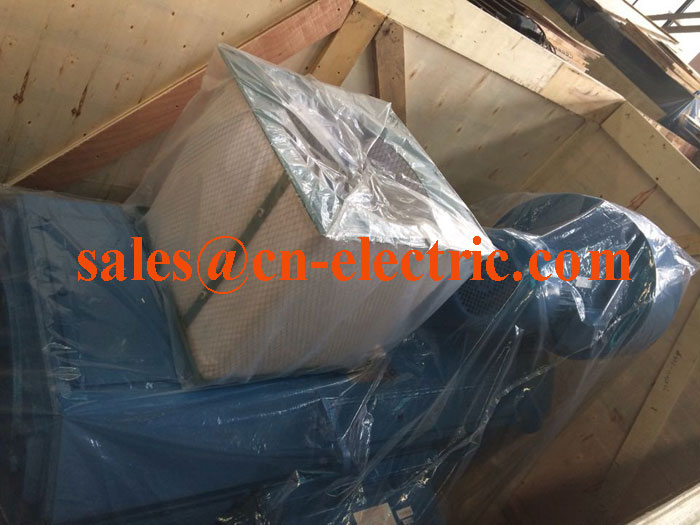

8. Cooling Method: IC06 (cooling by blower, with air inlet filter, mounted on top of DE, blower: 5.5Kw 380V/50Hz/3Ph 3000rpm)
9. Max. Ambient temperature 40oC, Max. Altitude 1000m
10. Bearing brand: "SKF" brand
11. Bearing type: rolling bearing
12. Terminal box position: left hand side seeing from driving end.
13. Rotation: Bi-direction
14. With Epoxy paint
15. Motor colour: bule RAL5015
16. Excitation type: separate excitation
17. Coupling type: Direct Coupling
18. Shaft extension: single cylindrical shaft extension
19. with space heater
