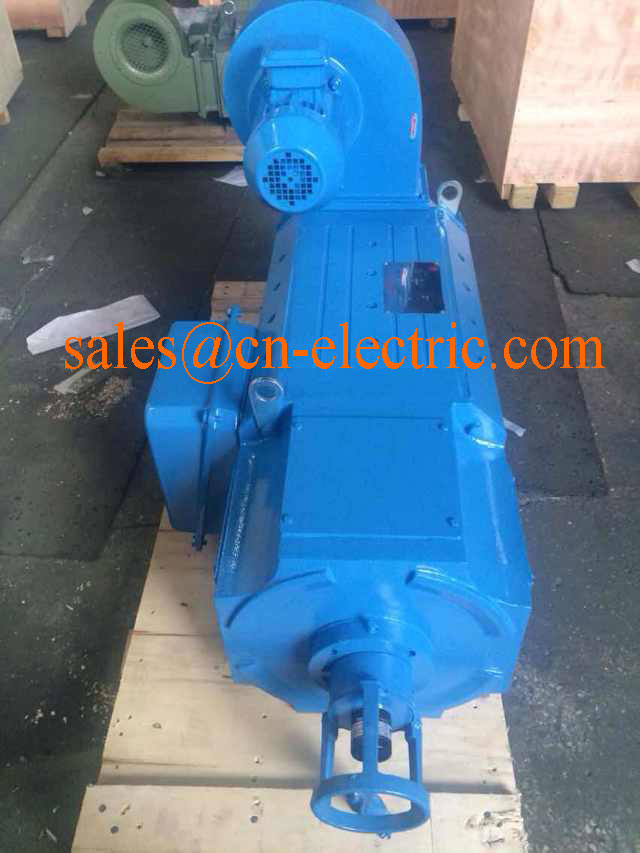

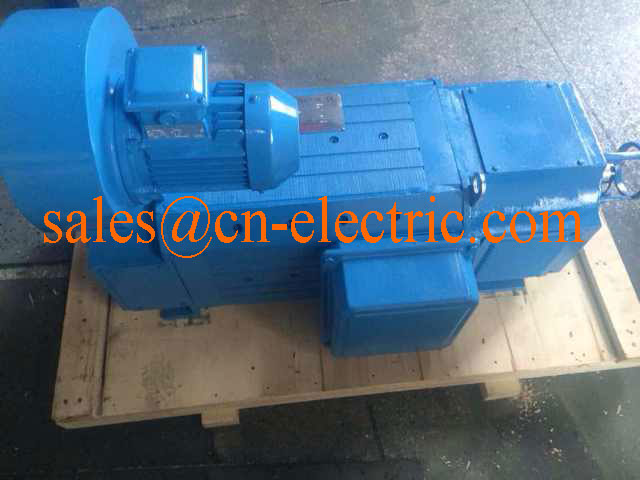

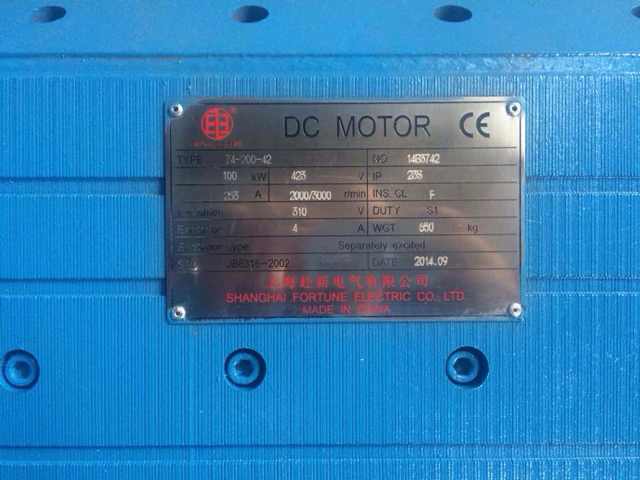

1PC 100kw, 2000/3000rpm, armature 423VDC, field voltage 310VDC, DC Motor Z4-200-42 was shipped for HOCHIMINH, VIETNAM on Oct.10,2014.

1. Insulation: class F, Temperature rise: B
2. Mounting Type: IMB3 ( IM1001,  Horizontal, foot  mounted, without flange)
3. With PTC in windings for thermal protection
4. With CE Certification
5. With "Koyo" brand encoder, type TRD-J1000-RZ
6. Duty: S1 (continuous)
7. Protection rating: IP23S
8. Cooling Method: IC06, cooling by blower, mounted on top of Drive End with air inlet filter.
9. Max. Ambient temperature 40^oC, Max. Altitude 1000m
10. Bearing brand: world famous "SKF" brand
11. Bearing type: rolling bearing
12. Overload capacity: 150% 60sec
13. Terminal box position: right hand side seeing from driving end
14. Rotation: Bi-direction
15. With Epoxy paint
16. Excitation type: separate excitation
17. Coupling type: Direct Coupling
18. Shaft extension: single cylindrical shaft extension
19. Without anti-condensation space heater
20. Service factor: 1.0
