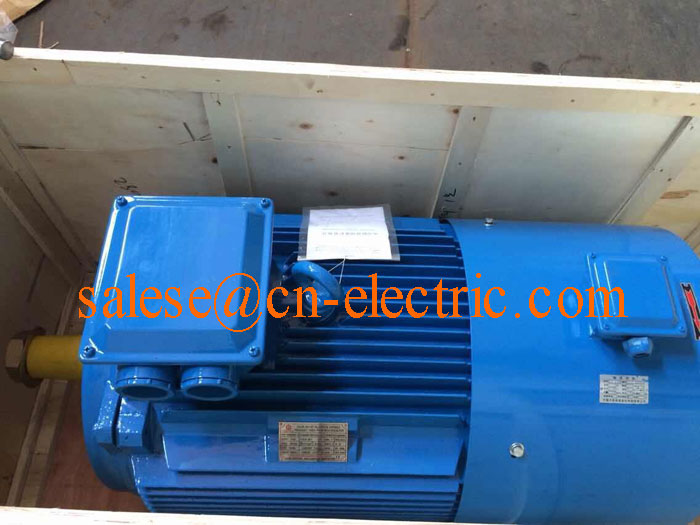

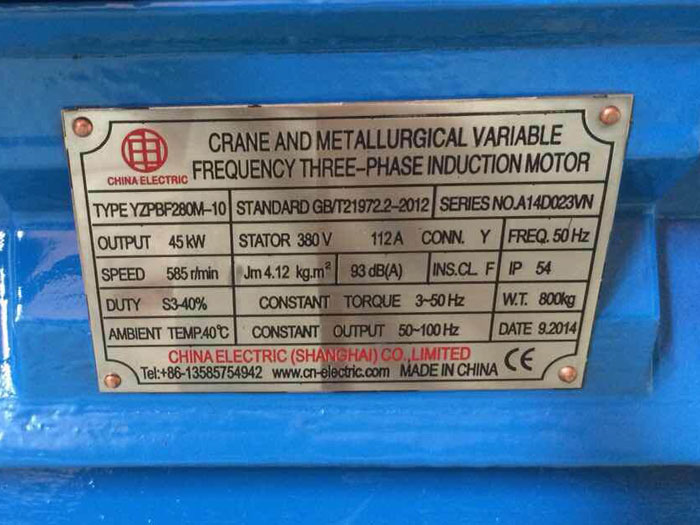

1PC 45kw, 380V/50Hz/3phase, CRANE AND METALLURGICAL VARIABLE FREQUENCY THREE-PHASE INDUCTION MOTOR YZPBF280M-10 was shipped for Haiphong, Vietnam Oct. 2nd, 2014

1. Protection rating: IP54
2. Insulation class: F, temperature rise B
3. Cooling: IC416, cooling by independent cooling fan
4. Mounting arrangement: IM1003, single conical shaft end, horizontal and foot mounted
5. Ambient temperature: -15^oC~+40^oC, Max. Altitude: 1000m
6. Duty: S3-40%
7. Power Frequency: 50Hz
8. Rated Voltage: 380V
9. Stator connection: △(delta)
10. Standard: IEC
11. Stator Terminal Box: at motor top

12. Bearing: best Chinese brand bearing, such as HRB, C&U, ZWZ or LYC
13. Bearing type: rolling bearing, bearing No.: driving end 6320/Z1, non-driving end 6320/Z1
14. Coupling type: Direct Coupling
15. Shaft extension: single conical shaft
16. Application: suitable for driving CRANE AND METALLURGICAL MACHINES
17. Rotor type: squirrel-cage rotor
18. Frame Size: 280mm
19. With Anti Corrosive Epoxy Painting
20. Without anti-condensation space heater
21. Without encoder for speed feedback
22. Without thermistor in windings as thermal protection
23. Material of windings: Red Copper
24. Material of main motor body: Cast Steel
25. Surface Painting Color of the motor: blue RAL5015
26. Motor type: asynchronous induction motor
27. Energy efficiency grades : IE1 or EFF2

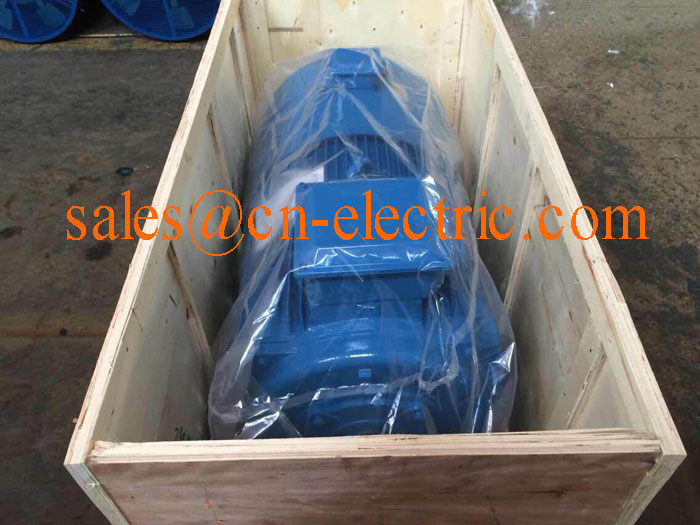

28. Package: Plywood case suitable for sea shipment
