YRKK450-12 150kw 60Hz 3300V High Voltage Wound Rotor Slip Ring Motor was shipped for Incheon, Korea on March 8th, 2015

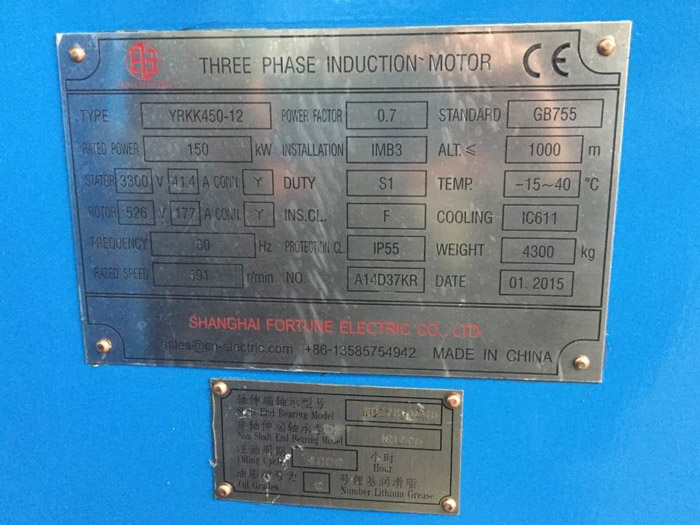

Technical parameters for this slip ring wound rotor motor:

Model: YRKK450-12                           Rated power: 150 Kw                                 Frequency: 60 Hz

Stator voltage: 3300 VAC                   Stator current: 41.4 A                                 Connection: Y

Rotor voltage: 526 VAC                       Rotor current: 177 A                                   Connection: Y

Rated speed: 591 r/min                       Insulation class: F                                      Temperature rise B

Power factor: 0.7                                 Duty: S1 continuous                                   Mounting: B3 (IM1001)

Cooling type: IC611                             Protection rating: IP55                               Bearing brand: SKF

Service factor: 1.15                              With 220 VAC 60 Hz single phase anti-condensation space heater

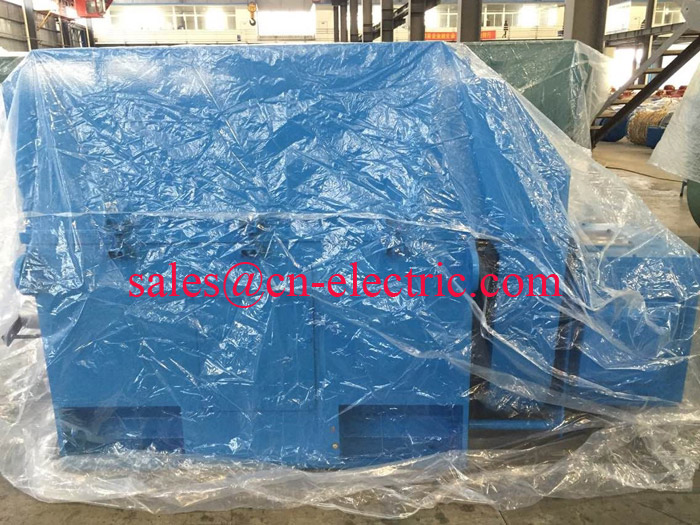

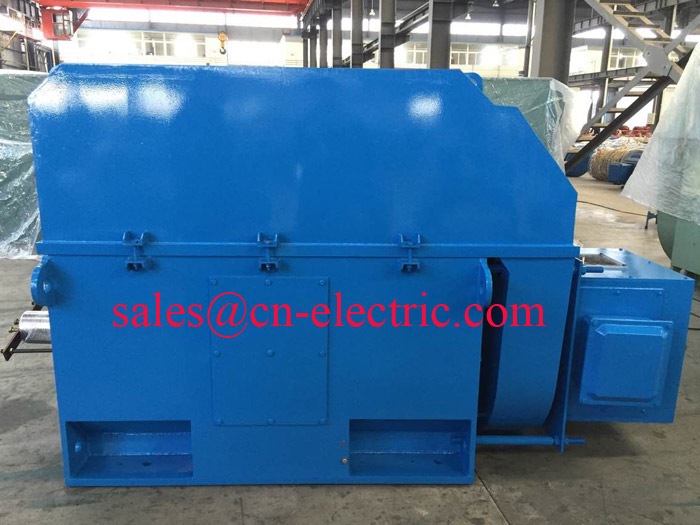

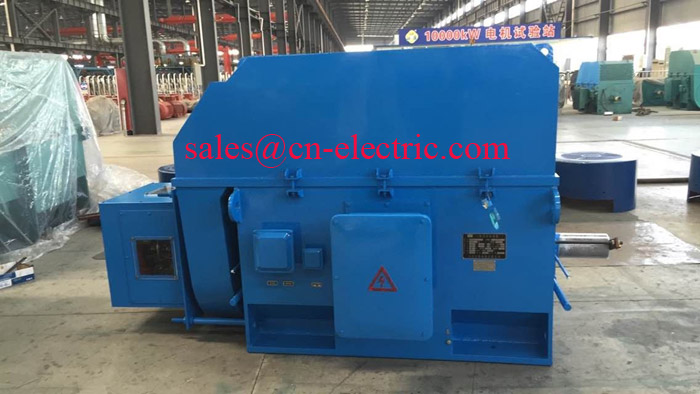

Pictures for YRKK450-12 150Kw high voltage wound rotor slip ring motor
