1 PC YRKK630-10 600 Kw 11 kV IC616 IP55 wound rotor slip ring motor was shipped for Karachi, Pakistan on Sep. 21st, 2016

Main technical parameters:

Model: YRKK630-10                  Rated power: 600 Kw             Stator voltage: 11 Kv                  Stator current: 44.9 A

Frequency: 50 Hz                         Rated speed: 592 r/min           Rotor voltage: 1228 V                Rotor current: 317 A

Duty: S1                                       Insulation class: F                   Mounting: IMB3 (IM1001)         Cooling type: IC616

Bearing type: rolling bearing       Bearing brand: FAG                Protection rating: IP55                Altitude:  ≤1000 m

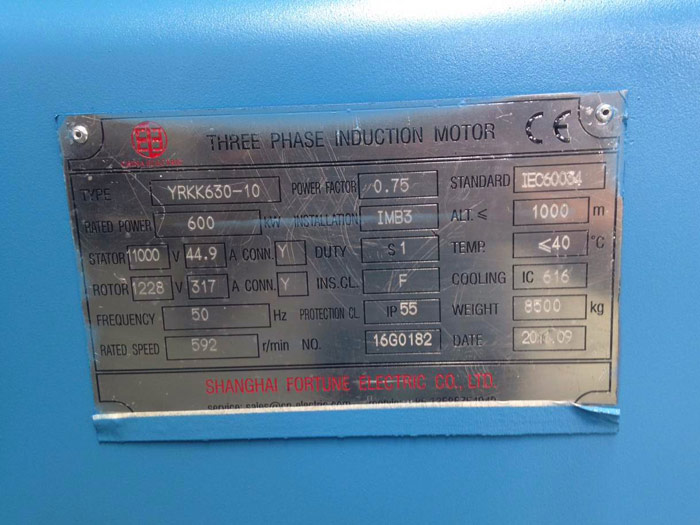

Nameplate for YRKK630-10 600 Kw 11 Kv slip ring motor

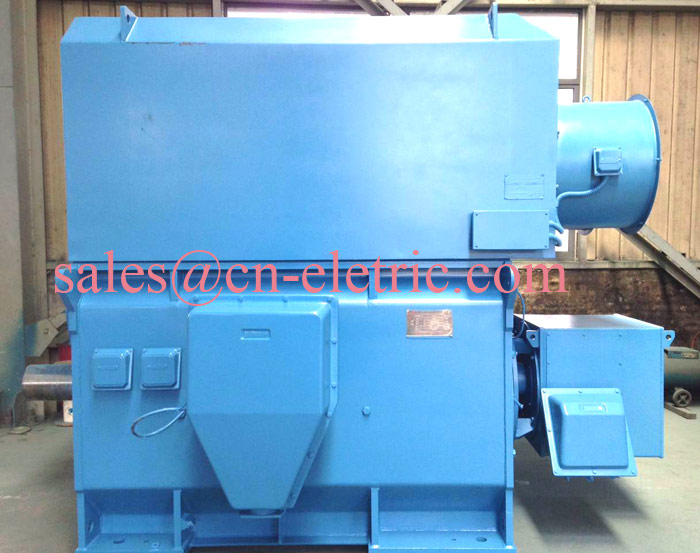

YRKK630-10 600 Kw 11 Kv slip ring motor

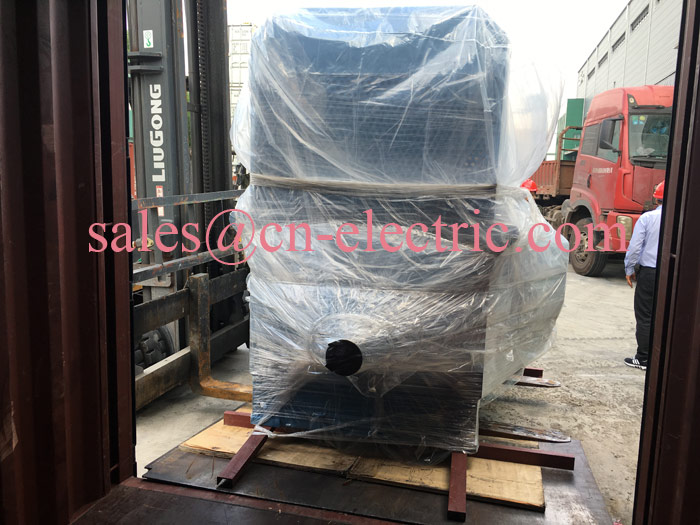

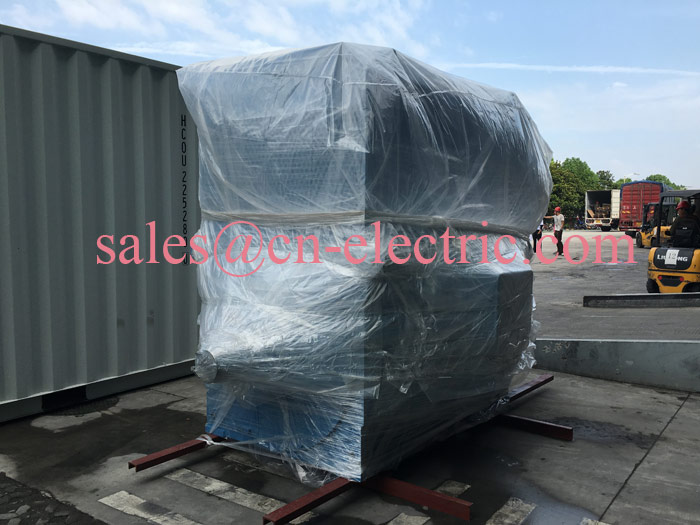

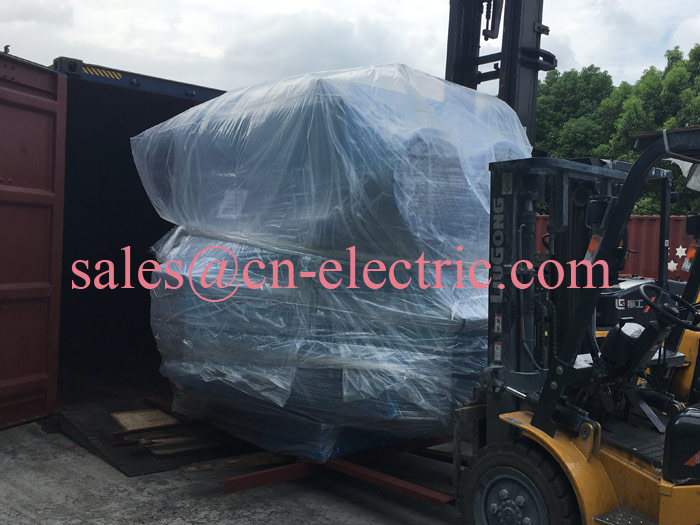

Loading in 40HC container
