ZSN4-400-092 630 Kw cement rotary kiln driving dc motor was shipped for Haiphong, Vietnam on Aug. 20th, 2016.

Main technical data:

Model: ZSN4-400-092                           Rated power: 630 Kw                     Rated speed: 1500 r/min

Armature voltage: 440 VDC                  Armature current: 1028 A               Cooling: IC06 blower cooled

Field voltage: 180 VDC                         Field current: 22.7 A                       Protection rating: IP23S

Insulation class: F                                 Duty: S1 (continuous)                     Excitation type: separated excitation

Nameplate for ZSN4-400-092 630 Kw 1500 r/min dc motor

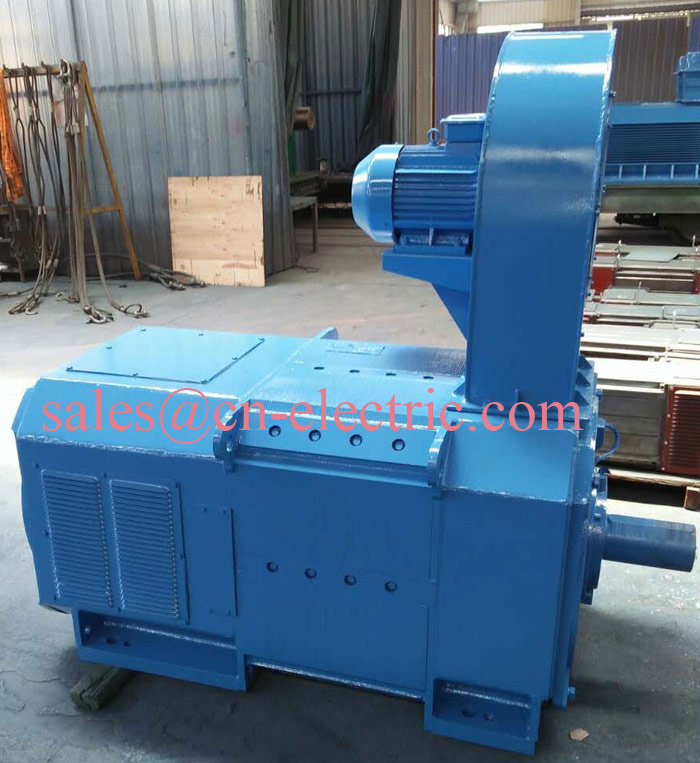

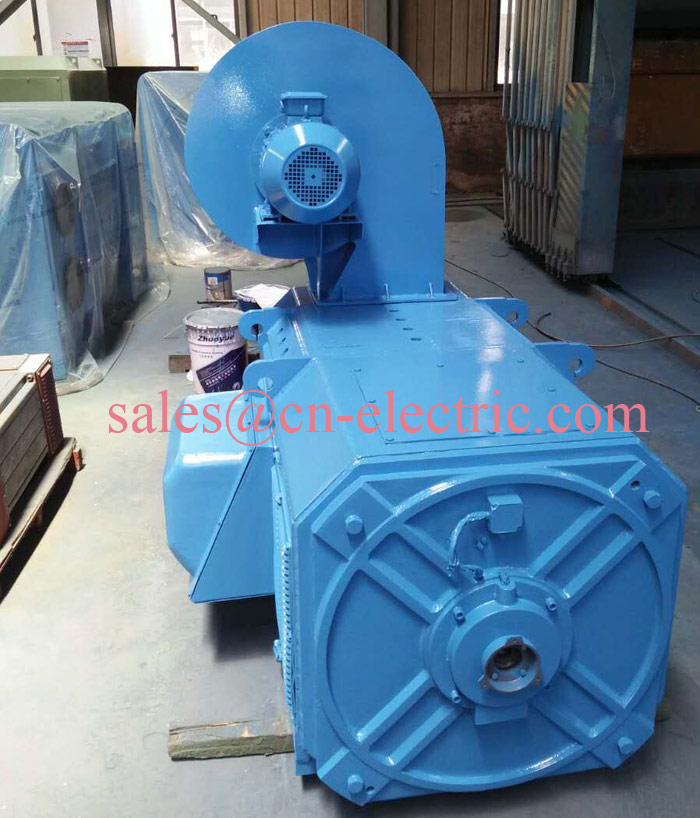

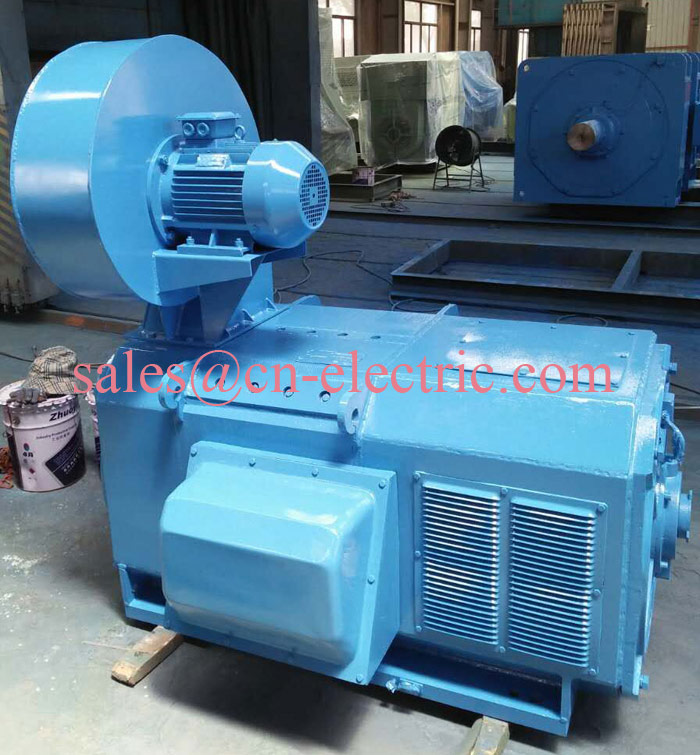

ZSN4-400-092 630 Kw cement rotary kiln dc motor
