2 PCS YRKK630-10 700 Kw 11 kV IC616 IP55 wound rotor slip ring motor was shipped for Karachi, Pakistan on Aug. 3rd, 2016

Main technical parameters:

Model: YRKK630-10                  Rated power: 700 Kw             Stator voltage: 11 Kv                  Stator current: 52 A

Frequency: 50 Hz                         Rated speed: 594 r/min           Rotor voltage: 1410 V                Rotor current: 292 A

Duty: S1                                       Insulation class: F                   Mounting: IMB3 (IM1001)         Cooling type: IC616

Bearing type: rolling bearing       Bearing brand: FAG                Protection rating: IP55                Altitude:  ≤1000 m

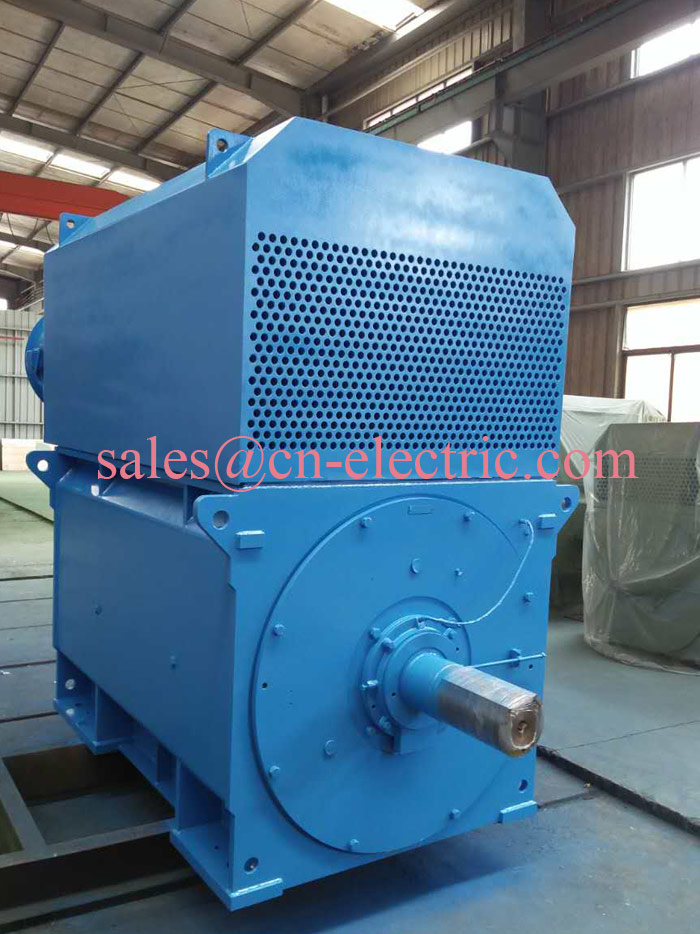

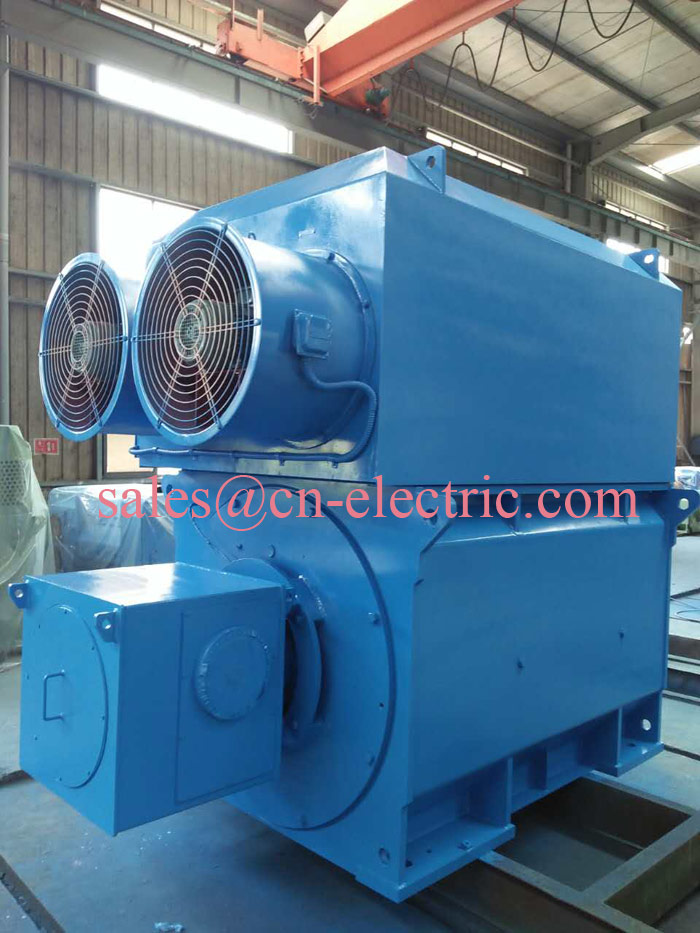

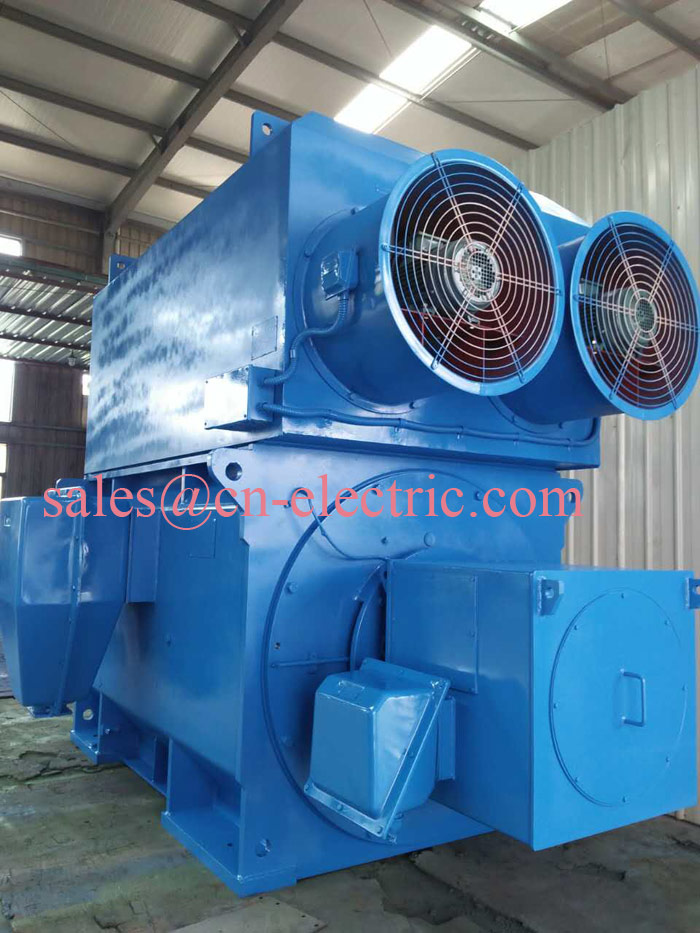

YRKK630-10 700 Kw 11 kV IC616 wound rotor slip ring motor

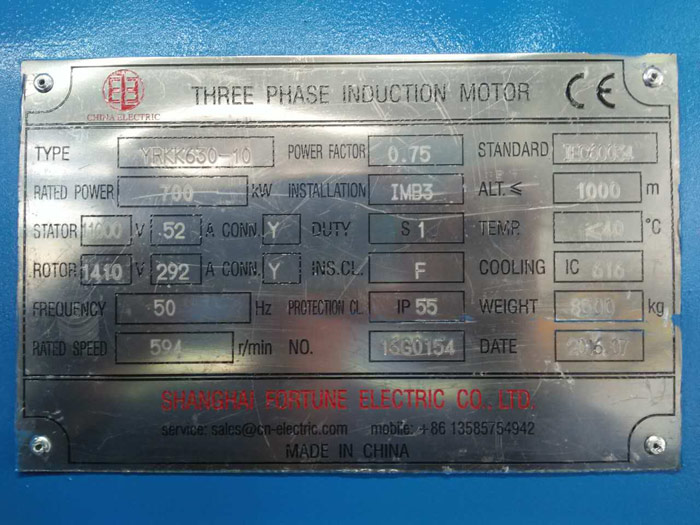

Nameplate for 1st YRKK630-10 700 Kw 11 kv slip ring motor

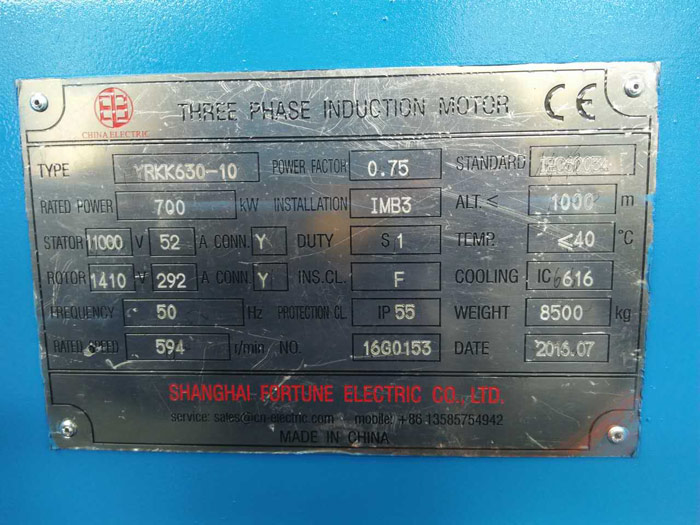

Nameplate for 2nd YRKK630-10 700 Kw 11 kv slip ring motor

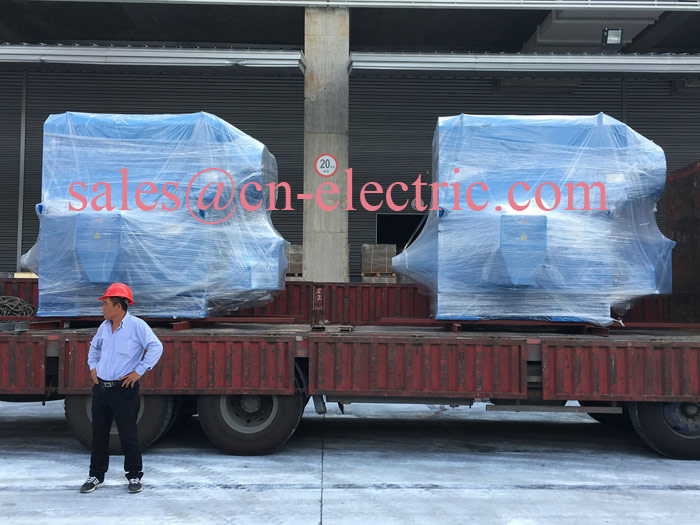

2 PCS YRKK630-10 700 Kw 11 kv slip ring motors

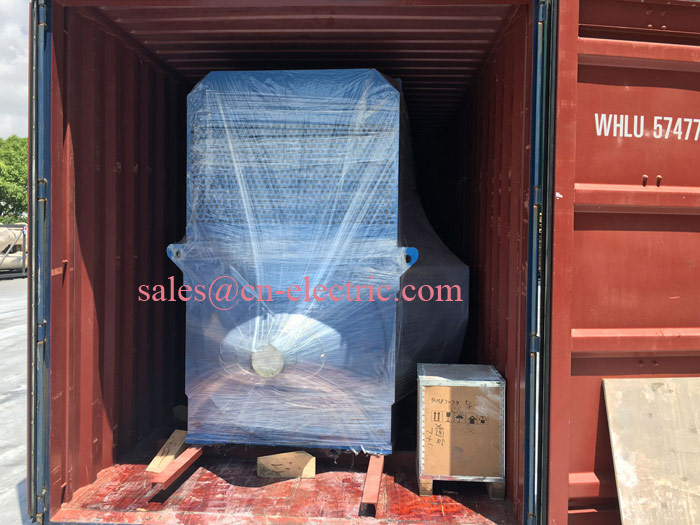

YRKK630-10 700 Kw 11 kv slip ring motor in 40HC container
