4 PCS ZZY-22-H 6.7 kW 1450 rpm 110 V marine winch driving DC motors were shipped for Yangon, Myanmar on July 5th, 2016.

Main technical data:

Model: ZZY-22-H                                  Rated power: 6.7 Kw                       Rated speed: 1450 r/min

Armature voltage: 110 VDC                  Armature current: 73 A                    Cooling: IC01

Field voltage: 110 VDC                         Field current: 2.5 A                          Protection rating: IP44

Insulation class: F                                 Duty: S1 (continuous)                      Excitation type: separated excitation

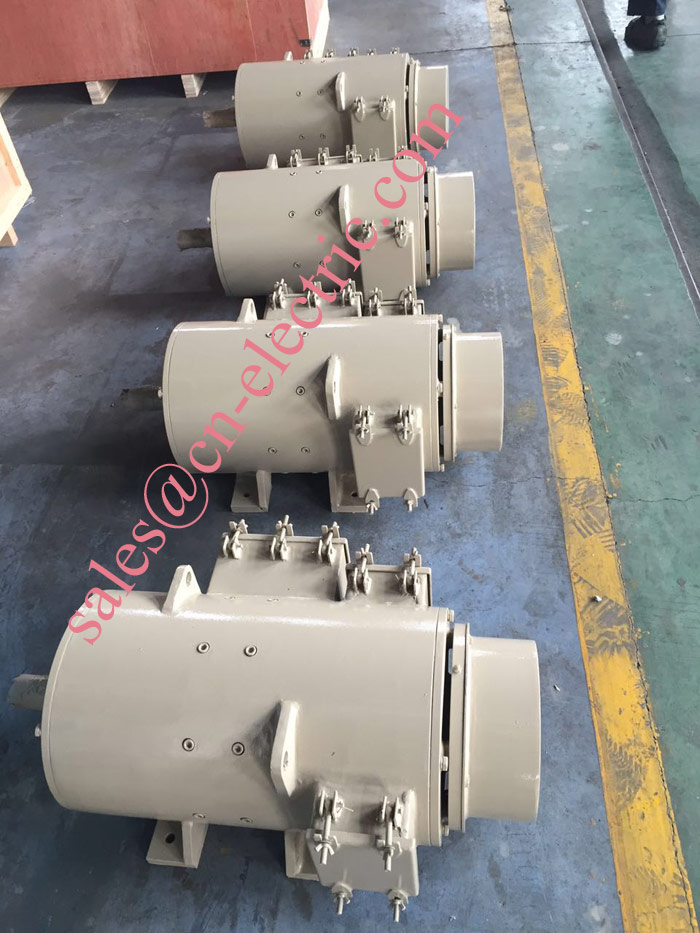

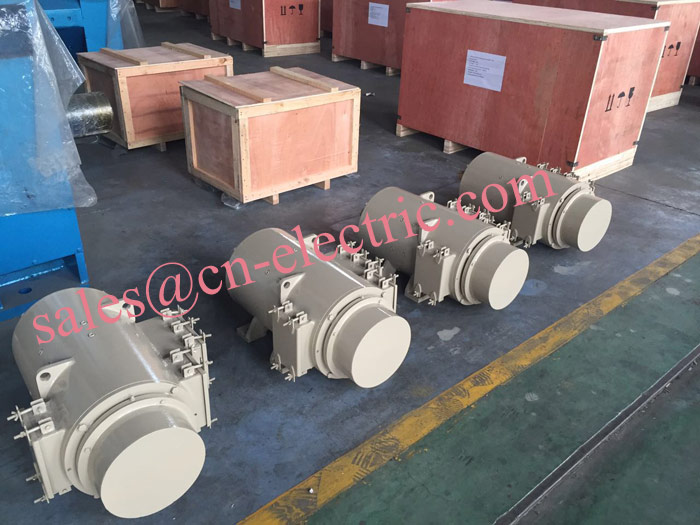

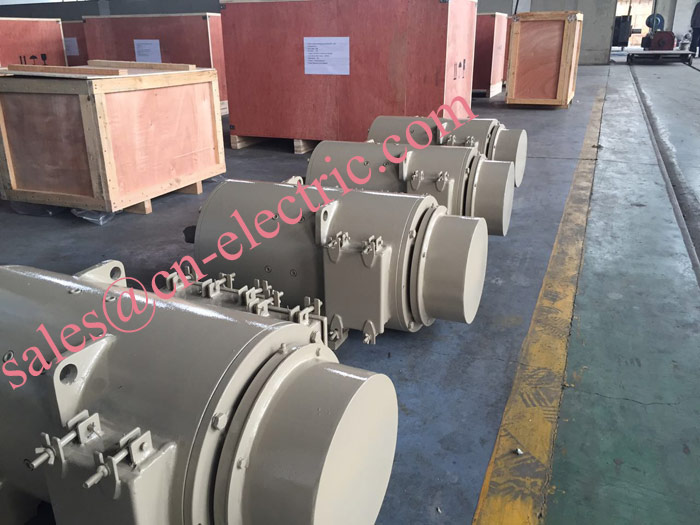

4 pcs ZZY-22-H 6.7 kW 110 V marine winch driving DC motors

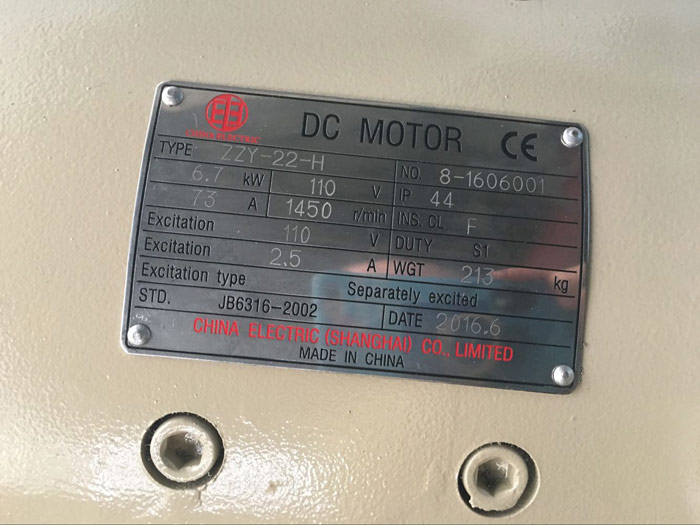

ZZY-22-H 6.7 kW marine winch DC motor (1st, 8-1606001)

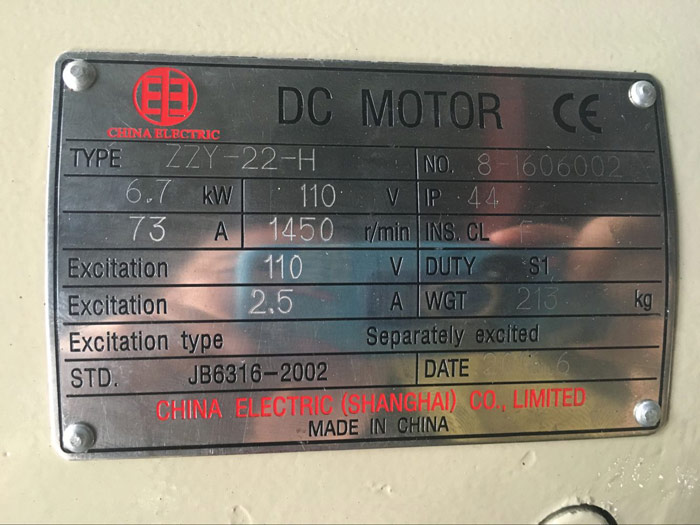

ZZY-22-H 6.7 kW marine winch DC motor (1st, 8-1606002)

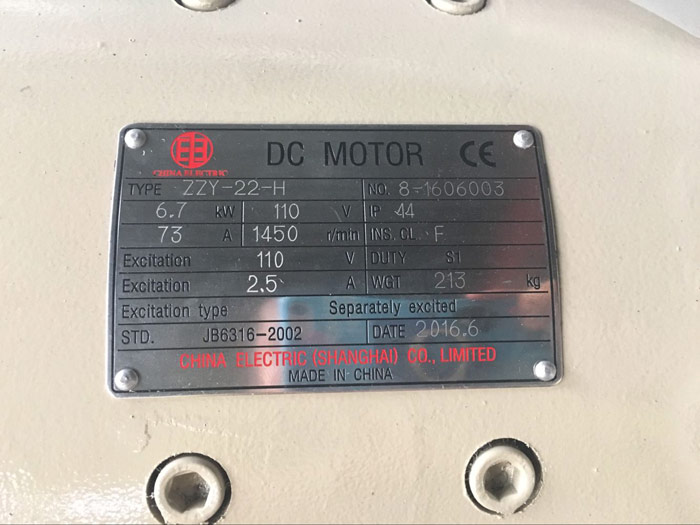

ZZY-22-H 6.7 kW marine winch DC motor (1st, 8-1606003)

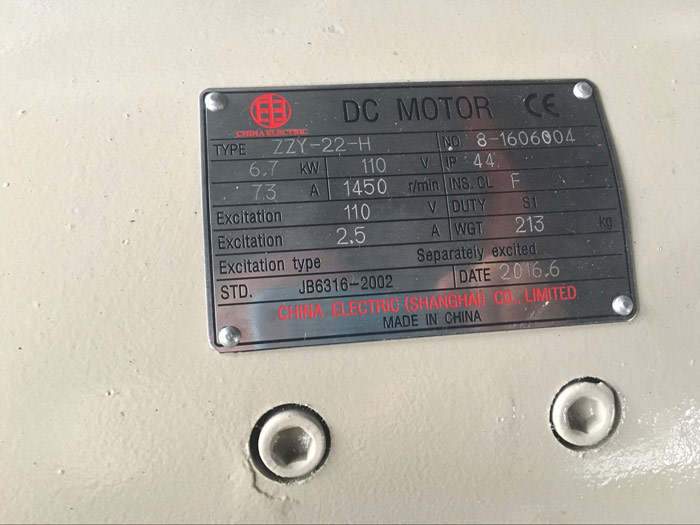

ZZY-22-H 6.7 kW marine winch DC motor (1st, 8-1606004)
