250 kg 160 kw medium frequency induction furnace with matched 15 ton/hr closed cycle water cooling tower was shipped for Chimkent, Kazakhstan on June 11th, 2016.

Main techncial parameters:

Furnace model: GW-0.25-160/1JJ                       Rated capacity: 250 kg

Furnace body quantity:2 pcs                               Power system model: KGPS-160-1S

Rated power: 160 Kw                                         Working frequency: 1000 Hz

Power input: 380 V 50 Hz 3 phase                       Furnace enclosure: cast aluminum

Tilting type: electromechanical tilting (tilt by electric motor & gear box)

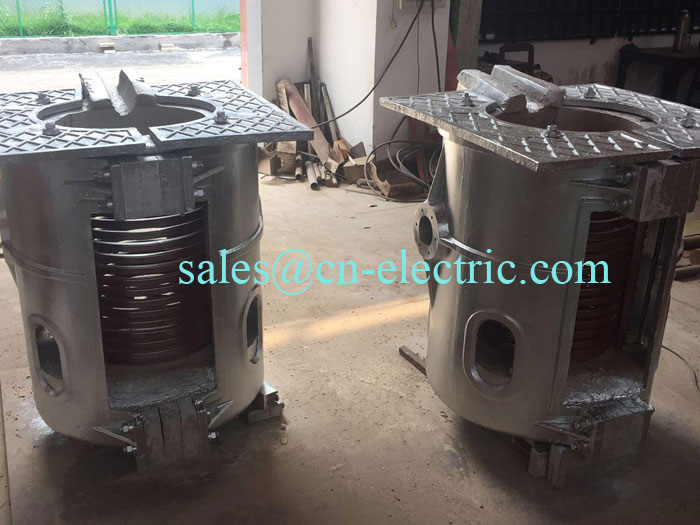

250 kg induction furnace GW-0.25-160/1JJ

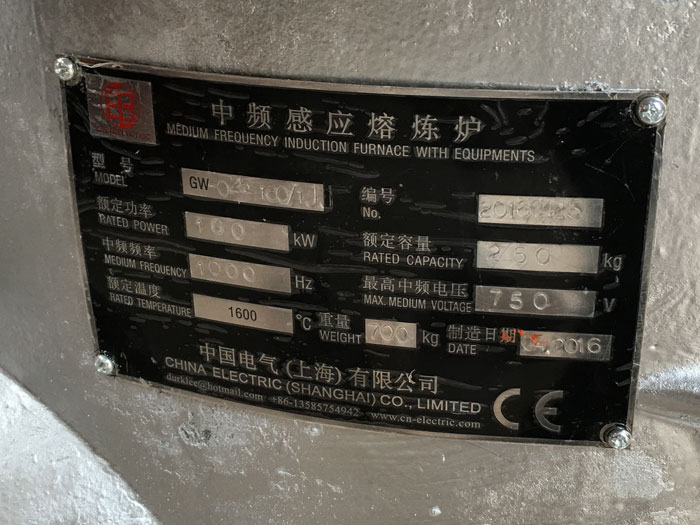

Nameplate for 250 kg induction furnace GW-0.25-160/1JJ

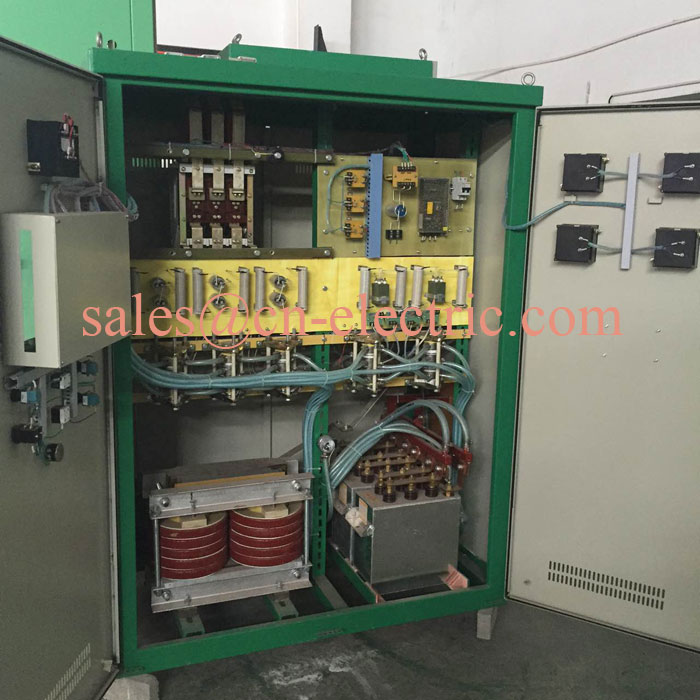

160 Kw medium frequency power supply cabinet, model KGPS-160-1S

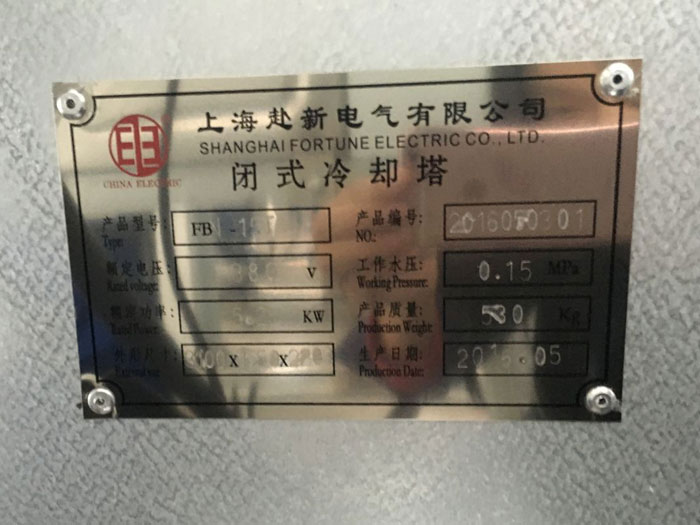

Nameplate for closed cycle water cooling tower, model FBN-15 T

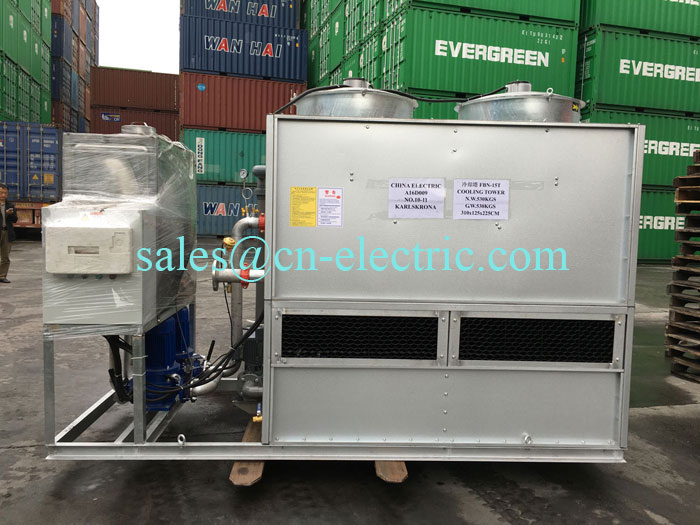

closed cycle water cooling tower, model FBN-15 T
