Z2-51 5.5 kW 220 V 1500 rpm DC Motor was shipped for Incheon S.Korea on March 12th, 2017

Model: Z2-51                          Rated power: 5.5 KW          Rated voltage: 220 VDC

Rated speed: 1500 r/min         Cooling type: IC01

Protection rating: IP22            Insulation class F                  Field voltage: 220 VDC

Duty: S1 continuous               Mounting: IMB3 (IM1001)      Excitation type: Sep.

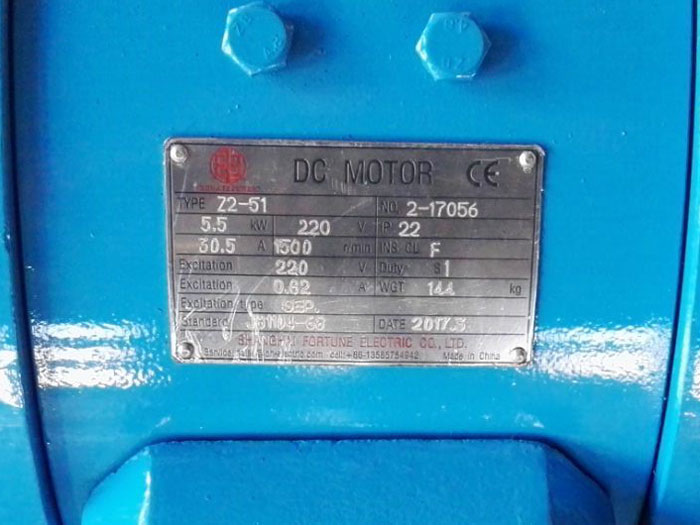

Nameplate for Z2-51 5.5 kW 220 V 1500 rpm DC Motor

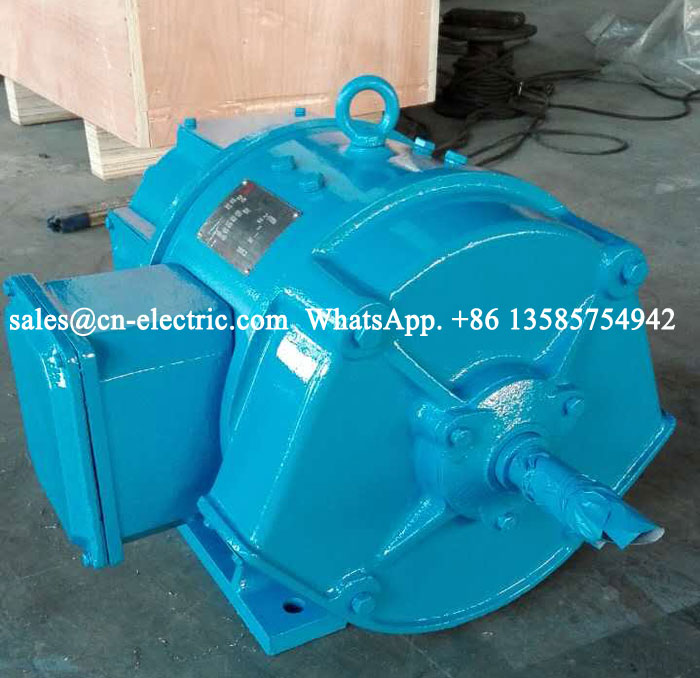

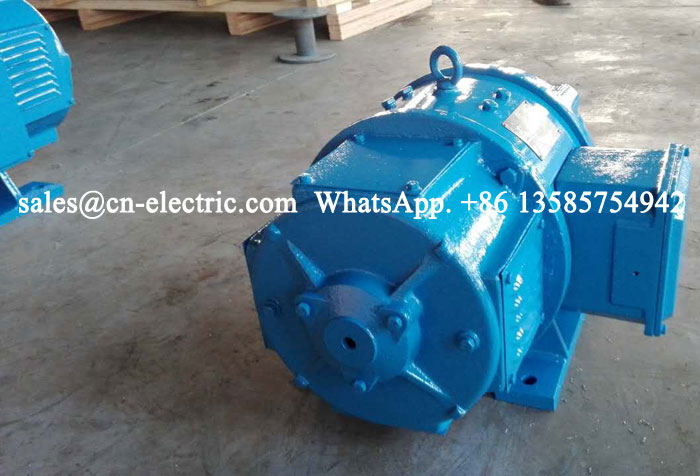

Z2-51 5.5 kW 220 V 1500 rpm DC Motor

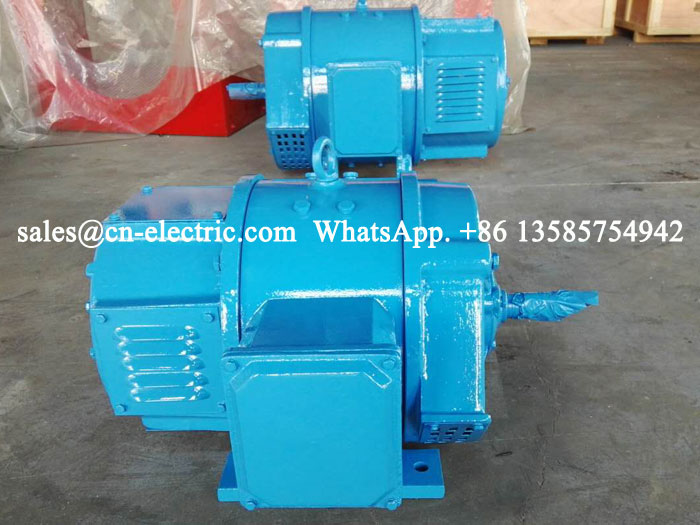

Z2-51 5.5 kW & Z2-72 22 kw, 220 V 1500 rpm DC Motors

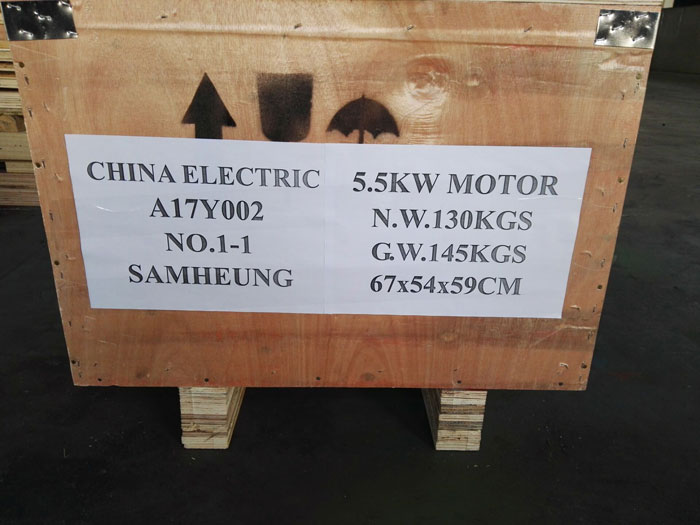

Package for Z2-51 5.5 kW 220 V 1500 rpm DC Motor
