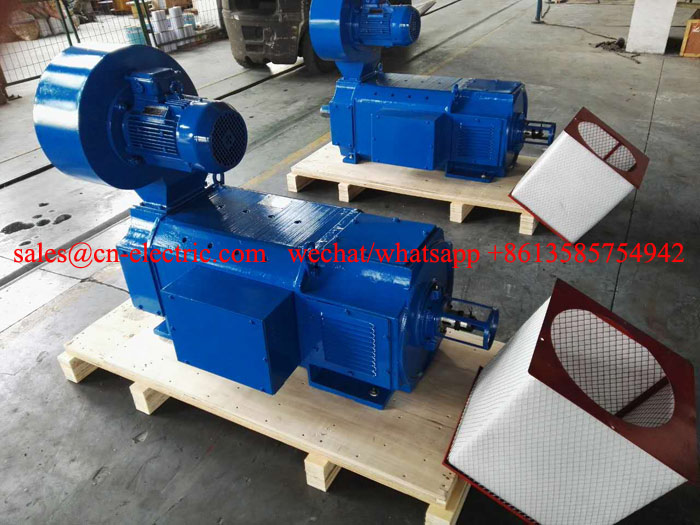

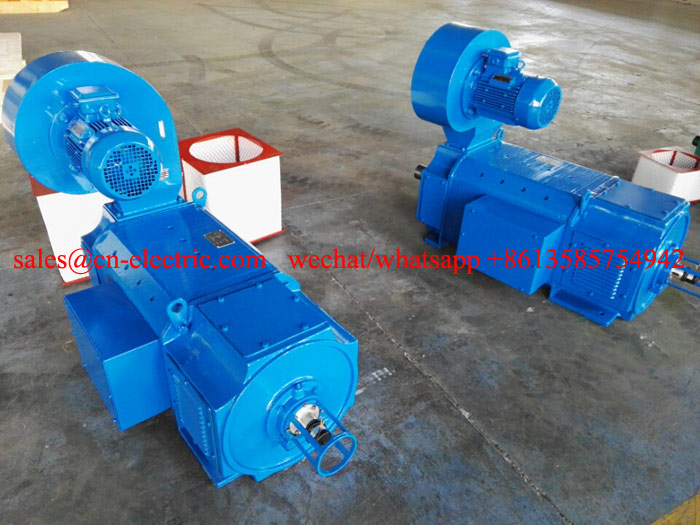

2 PCS Z4-225-31 120 kW 440 V 1400/2400 rpm DC Motors were shipped for Karachi Pakistan on Nov. 27th, 2017

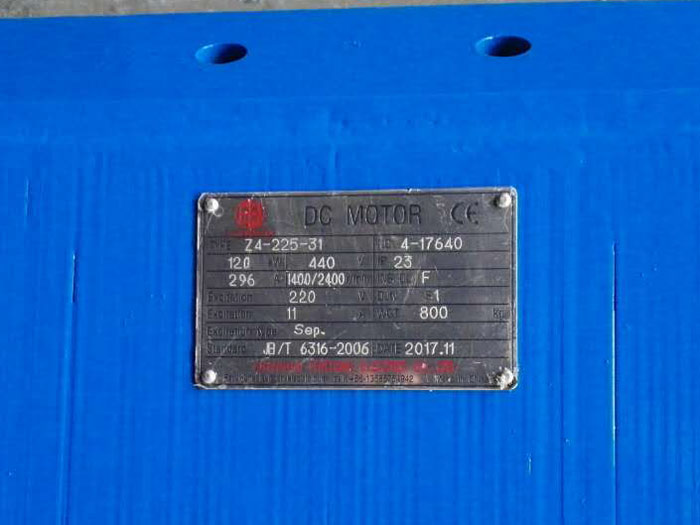

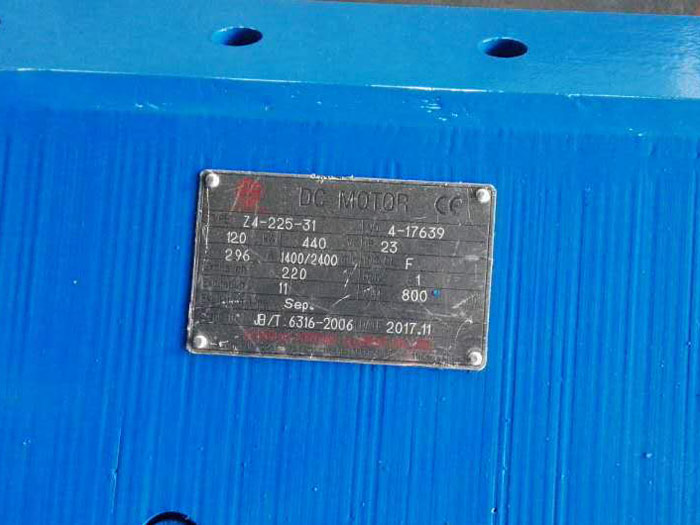

Model: Z4-225-31                   Rated power: 120 KW           Armature voltage: 440 VDC

Rated speed: 1400 r/min        Max. speed: 2400 r/min        Cooling type: IC06

Protection rating: IP23            Insulation class F                 Field voltage: 220 VDC

Duty: S1 continuous               Mounting: IMB3 (IM1001)      Excitation type: Sep.

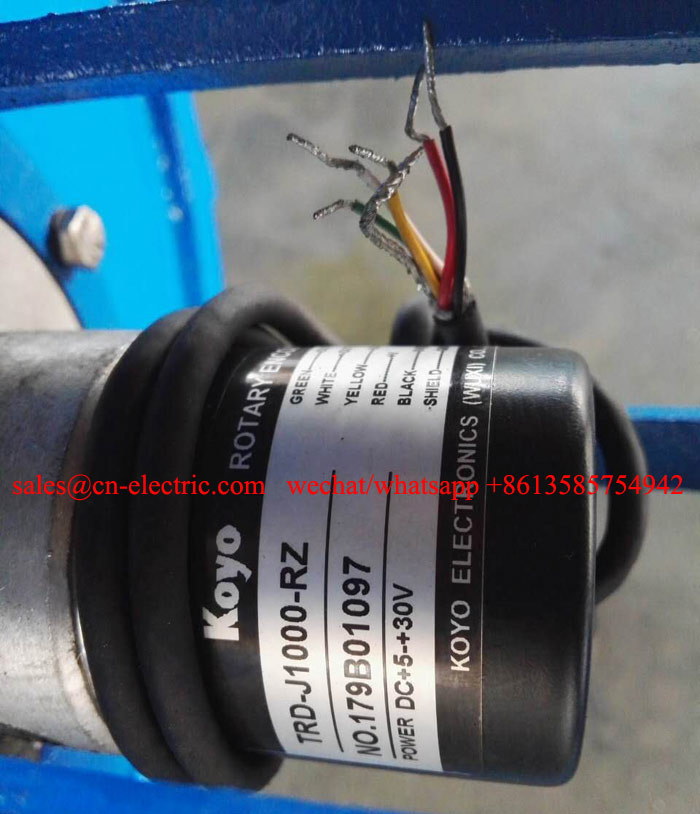

Koyo brand encoder TRD-J1000-RZ
