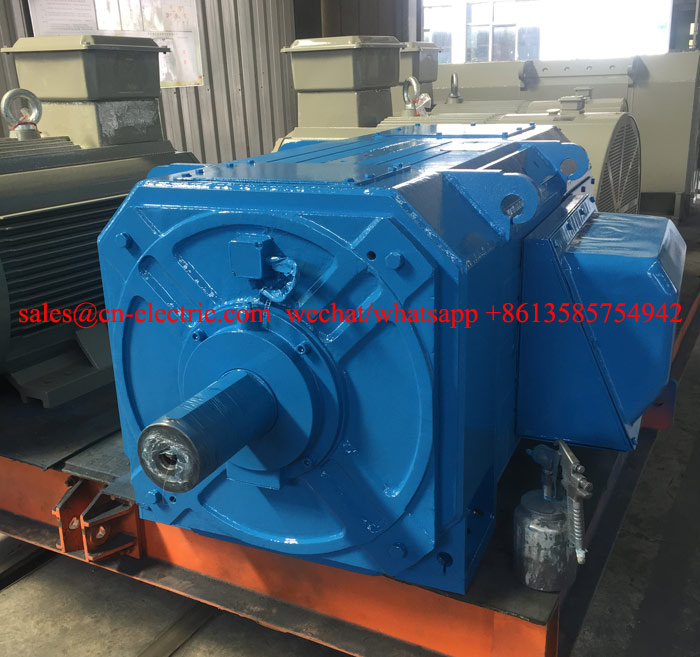

1 PC ZSN4-355-092 315 kW 440 V 1000 rpm ZSN4 series Cement Rotary Kiln Driving DC Motor was shipped for Karachi Pakistan on Oct. 21st, 2017

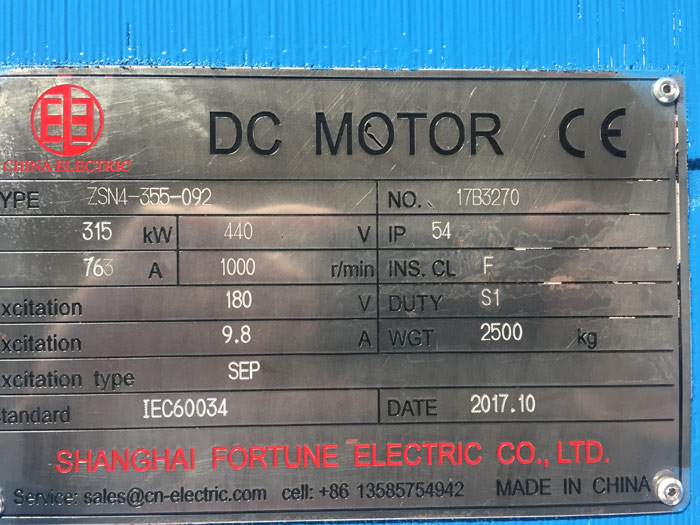

Model: ZSN4-355-092                  Rated power: 315 KW            Armature voltage: 440 VDC

Rated speed: 1000 r/min              Cooling type: IC37                 Armature current: 736 A

Protection rating: IP54                 Insulation class F                    Field voltage: 180 VDC

Duty: S1 continuous                     Mounting: IMB3 (IM1001)        Excitation type: Sep
