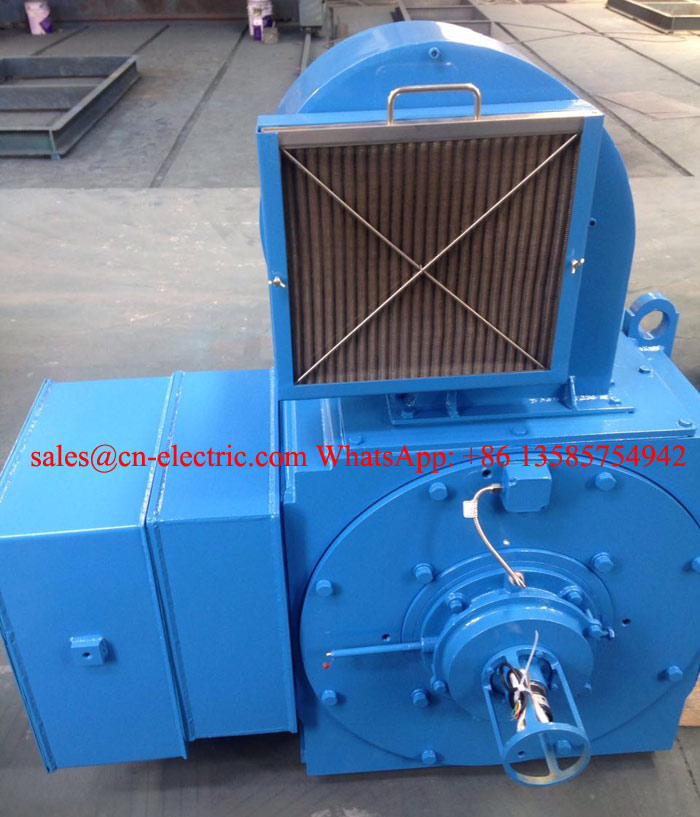

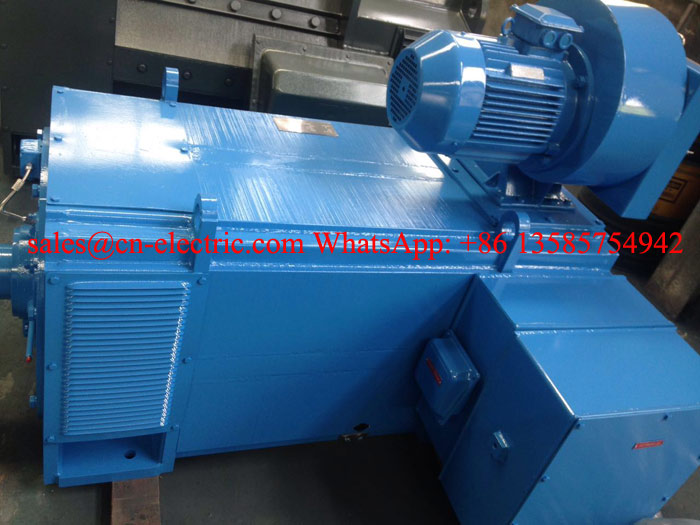

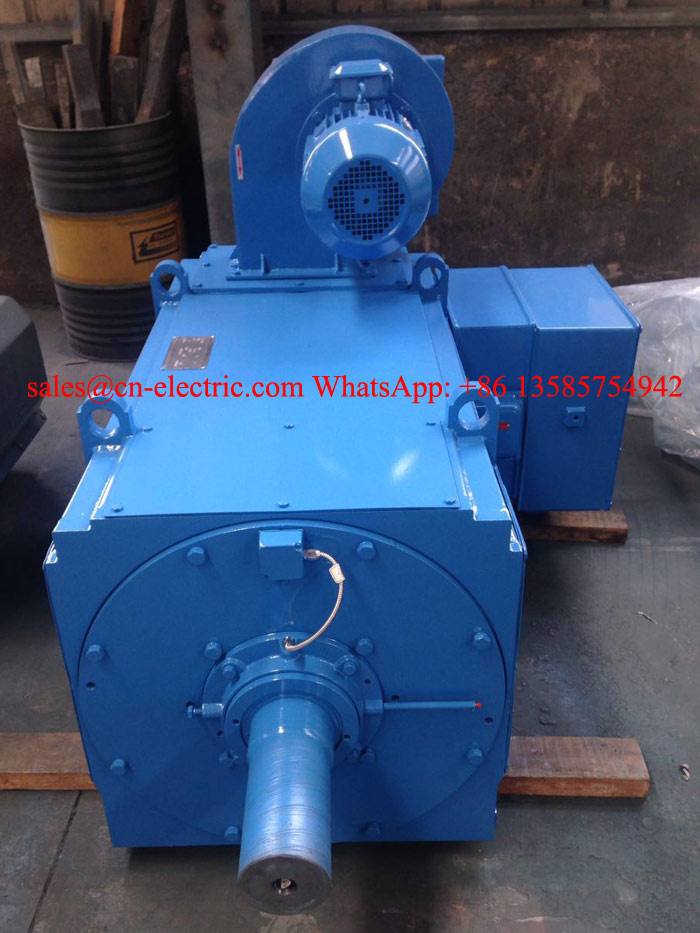

1 PC YJP355M-6, 600 Kw, 390 V, IC06 blower cooled, IP23, variable frequency variable speed AC Inverter Motor was shipped for Karachi, Pakistan on May 29th, 2017

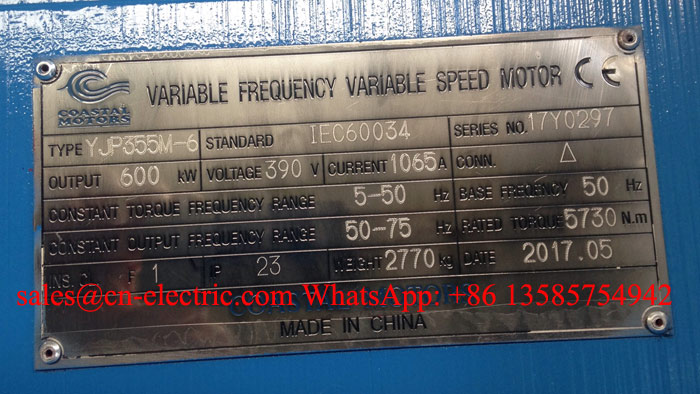

Main technical parameters:

Model: YJP355M-6                 Rated power: 600 Kw                         Stator voltage: 390 v                    Stator current: 1065 A

Frequency: 50 Hz                     Rated speed: 1000 r/min                     Duty: S1                                       Insulation class: F

Mounting: IMB3(IM1001)       Cooling type: IC06 blower cooled     Bearing type: rolling bearing       Protection rating: IP23

Altitude:  ≤1000 m                    Application: steel rolling mill
