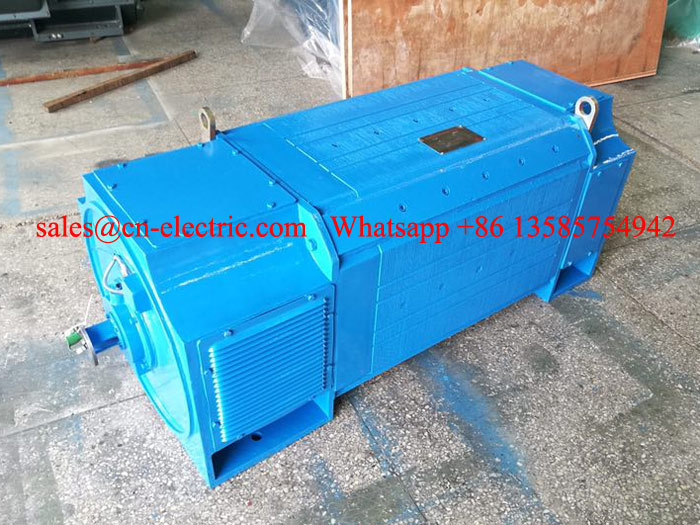

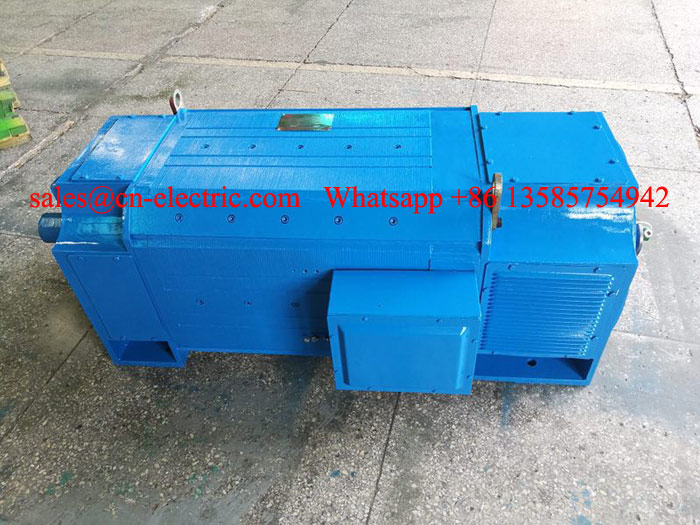

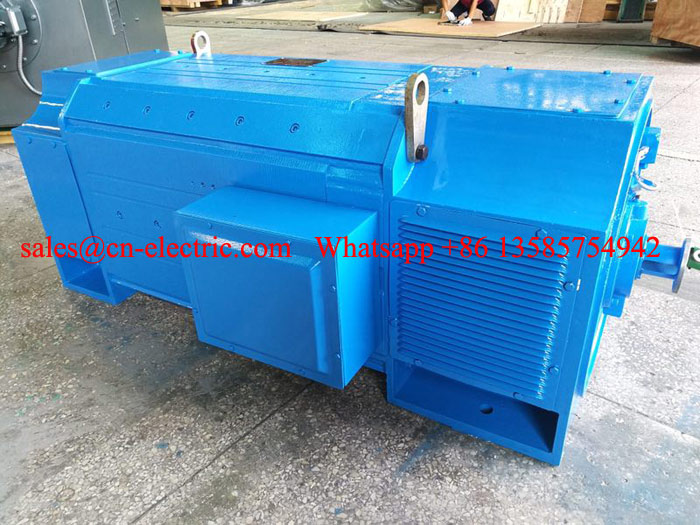

1 PC Z4-315-32 434 kW 600 V 1530/1700 rpm DC Motor was shipped for Karachi, Pakistan on Aug. 2nd, 2017

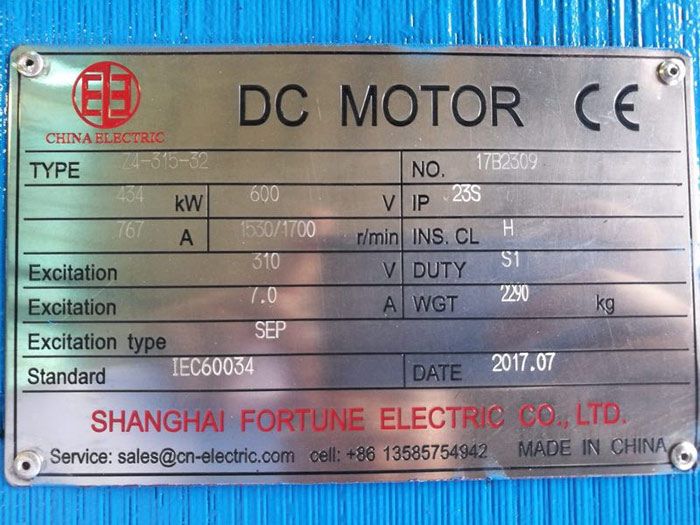

Model: Z4-315-32                    Rated power: 434 KW                                    Armature voltage: 600 VDC

Speed: 1530/1700 r/min           Cooling type: IC17 single duct ventilation     Armature current: 767 A

Protection rating: IP23S           Insulation class: H                                           Field voltage: 310 VDC

Duty: S1 continuous                Mounting: IMB3 (IM1001)                             Excitation type: Sep
