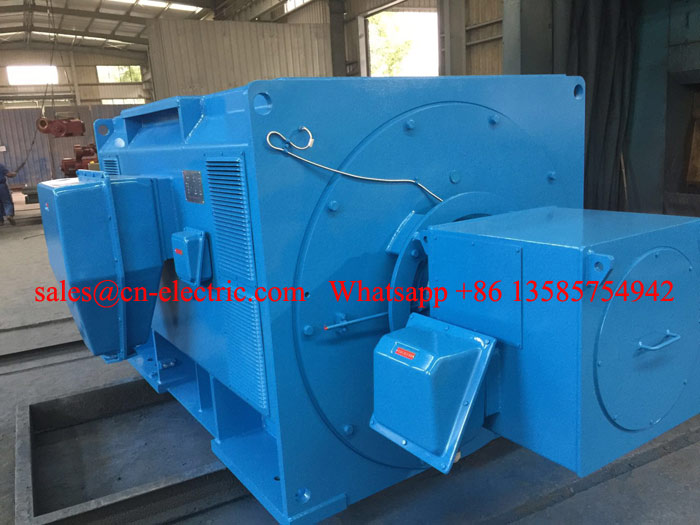

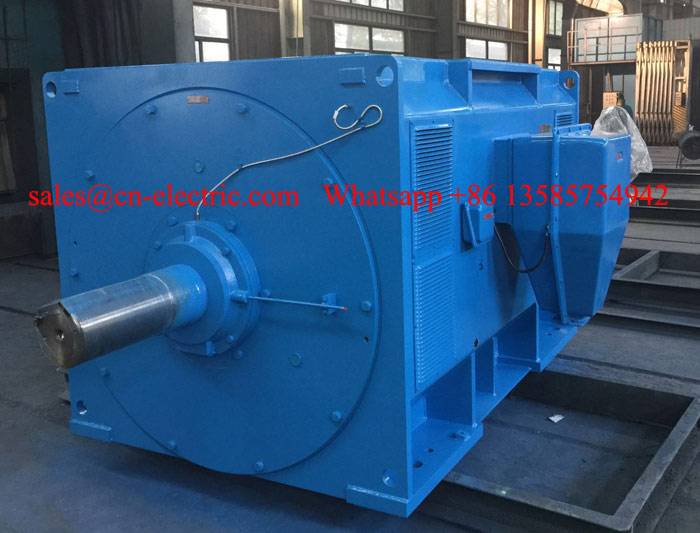

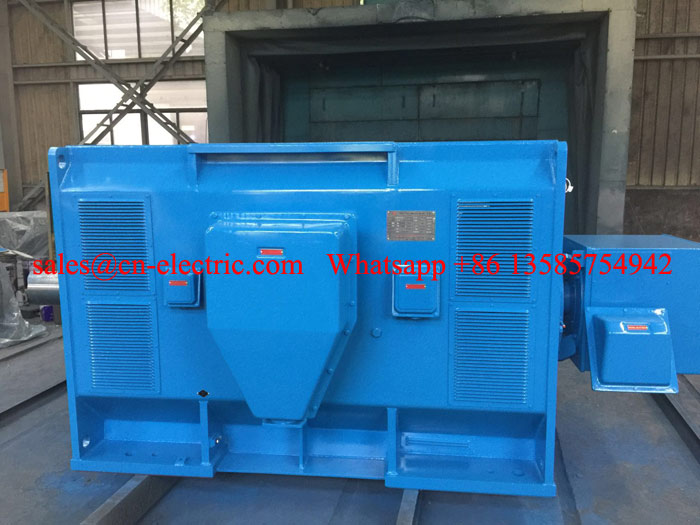

1 PC YR710-12 1000 Kw, stator 6000 V 50 Hz, IC01 ODP, IP23, YR series high voltage wound rotor slip ring motor was shipped for Karachi Pakistan on Sep. 29th, 2017

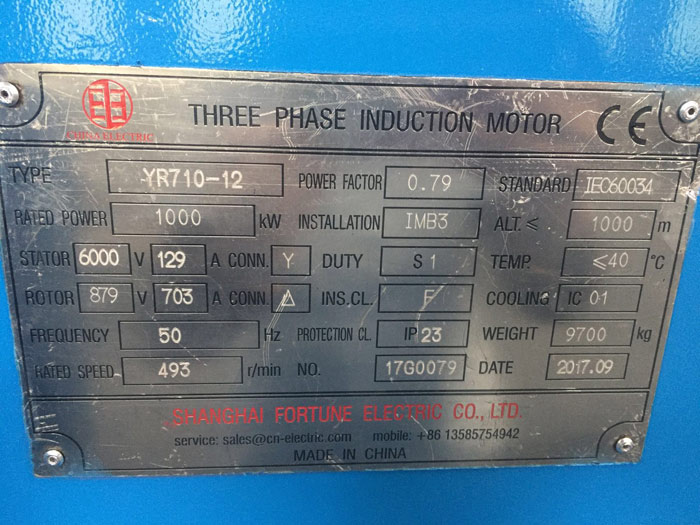

Main technical parameters:

Model: YR710-12                     Rated power: 1000 Kw               Stator voltage: 6000 V                     Stator current: 129 A

Frequency: 50 Hz                      Rated speed: 493 r/min               Duty: S1                                           Insulation class: F

Mounting: IMB3 (IM1001)       Cooling type: IC01 ODP            Bearing type: rolling bearing           Bearing brand: FAG

Protection rating: IP23              Altitude:  ≤1000 m                      Power factor: 0.79                           Application: steel rolling mill
