    Product Name: 15~160 KW IGBT Medium Frequency Induction Melting Furnace Hits: 17610

Original Image

Video for aluminum melting furnace

Video for stainless steel melting furnace

Video of aluminum melting furnace

Video for glass melting furnace

Video for copper melting furnace

      ·Data sheet     · Mounting and Overall Dimensions     · Order
     · Application

The 15 Kw ~ 160 Kw IGBT Small Capacity Medium Frequency Induction Melting Furnaces are mainly used for melting scrap copper, brass, bronze, aluminum, gold, silver, zinc, iron, steel, stainless steel, aluminum, gold ore, copper ore, other nonferrous metals, ferrous metals and metal alloys.

The melting furnace capacity is normally from 3 Kg to 250 Kg.

Technical data sheet of 15 kw to 160 kw small IGBT induction melting furnaces:

No.

Model of IGBT power system

 Rated power

 Melting furnace capacity for different materials

iron, steel, stainless steel, glass

brass,  bronze, copper, silver, gold, zinc

aluminium, magnesium

gold ore, copper ore

Kw

Kg

Kg

Kg

Kg

1

IGBT-15

15

3

10

3

3

2

IGBT-25

25

5

20

5

5

3

IGBT-35

35

10

30

10

10

4

IGBT-45

45

18

50

18

18

5

IGBT-70

70

25

100

25

25

6

IGBT-90

90

40

120

40

40

7

IGBT-110

110

50

150

50

50

8

IGBT-160

160

100

250

100

100

We have 3 types melting furnaces:

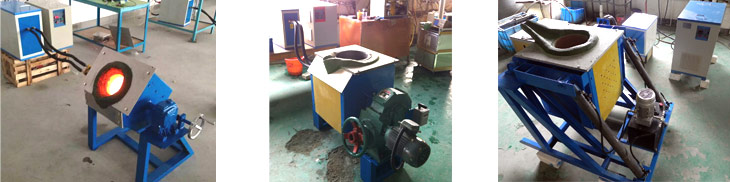

        A: manual gear box tilting                        B: electric gear box tilting                         C: hydraulic tilting


     · Performance
1. Easy for installation and operation.  No need to make foundation or civil work.
2. Super small size and portable. Save big space for user.
3. 100% duty cycle. 24 hours no-stop continuous working ability.
4. Energy saving. Save at least 20% energy comparing with KGPS thyristor type induction system.
5. Convenient to change furnace crucible for different material melting.
6. Use ready-made crucible: no need to make lining with refractory material by skilled person, convenient for users.
7. With screen for displaying working frequency, current, voltage and power.
8.  Include protections for over-voltage input, over-voltage output, over current, water supply fail, phase fail, over-temperature, short-circuit and unfit frequency.
9. Wide voltage input: 360 V, 380 V, 400 V, 415 V, 440 V, 460 V. (50 Hz or 60 Hz)

Videos for 15 kw to 160 kw small IGBT induction meltling furnaces in working:


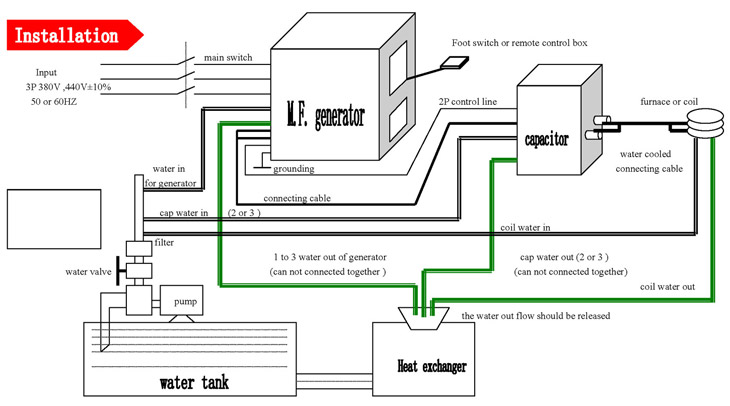

     · Equipment Constitution
Main parts of each set furnace system:


No.

Name of furnace parts

Quantity

1

1 KHz ~ 20 KHz IGBT medium frequency induction power supply cabinet

1 PC

2

Compensation capacitor cabinet

1 PC

3

1 kg to 250 kg capacity induction melting furnace body with crucible

1 PC

4

Water cooled cables (connect furnace body with capacitor cabinet)

2 PCS

5

Copper cables (connect capacitor cabinet with power supply cabinet)

2 PCS

6

Signal wire

1 PC

7

Foot switch

1 PC
