 　  Product Name: R2.5m R3m Continuous Casting Machine Hits: 7235

Original Image
Payment Terms: 30% in advance, balance by T/T or L/C at sight
Minimum Order: 1 set
Package: Plywood box and Nude
Brand Name: CHINA ELECTRIC
Production Capacity 4~5.5 Ton/Hr
Billet Size 60x60, 70x70mm
Casting Speed 2.8 m/min (adjustable)
      · Order
     · Application

     · Features and application

R2.5m for billet 60x60mm~70x70mm

R3m for billet 60x60~90x90mm

Billet type(mm)
Production
(Ton/hour)
Rated Power
(excluding water pumps)
(kw)
Power consumption
(KwH)
60×60
4-5.5
40KW
60%-70%
70×70
4.5~7
40KW
60%-70%
80x80
5~9
50kw
60%-70%
90x90
6~11
50kw
60%-70%

Worker/operator needed (6~7 persons):

Ladle tapping worker: 1,                billet control worker: 1,         billet cutting worker: 1,
Billet collection worker: 1~2,          manger worker: 1,                 crane worker: 1.

     · Structure Features

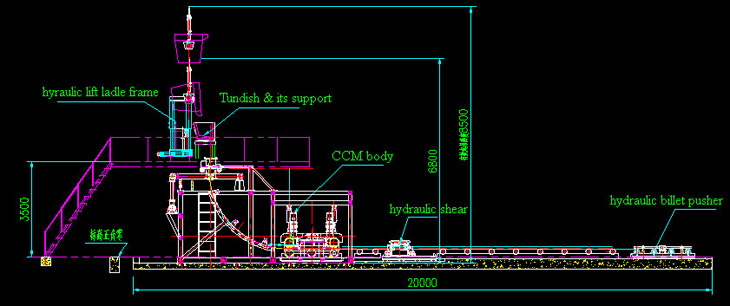

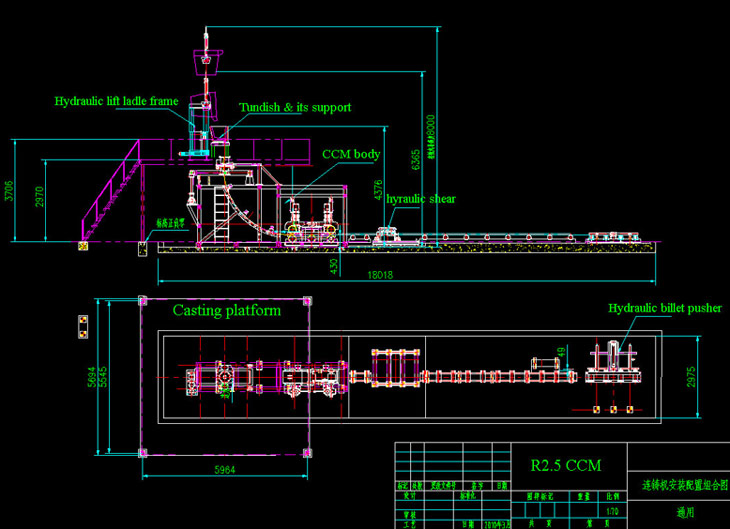

R2.5m Continuous Casting Machine

R2.5m Continuous Casting Machine

R3m Continuous Casting Machine

R3m Continuous Casting Machine

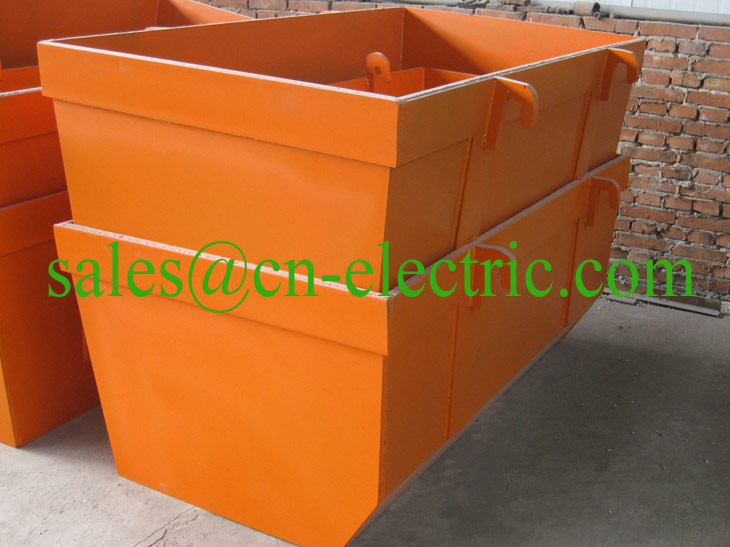

1) Tundish shell without lining: 2pcs

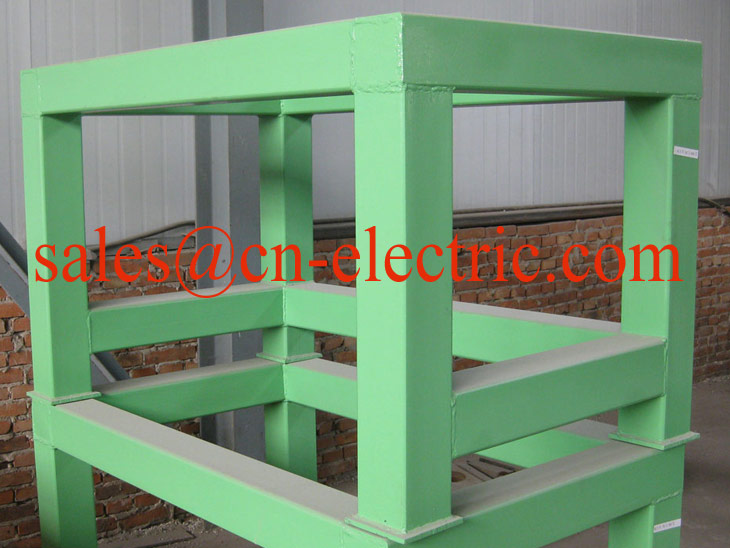

2) Tundish support steel frame: 1pc

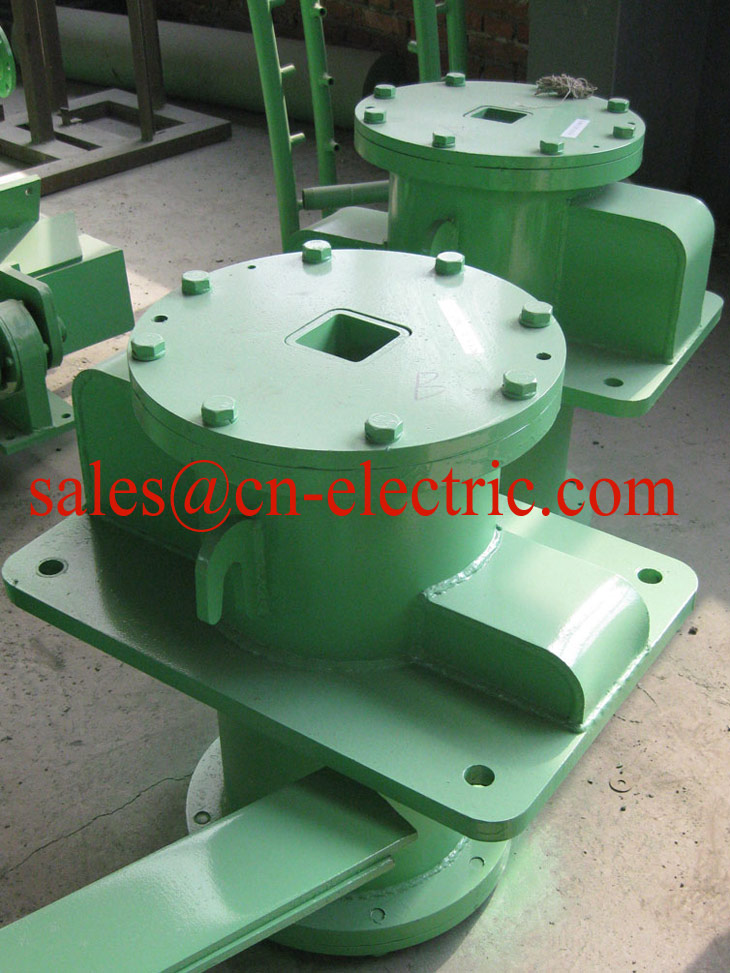

3) Mould assembly 60x60mm:

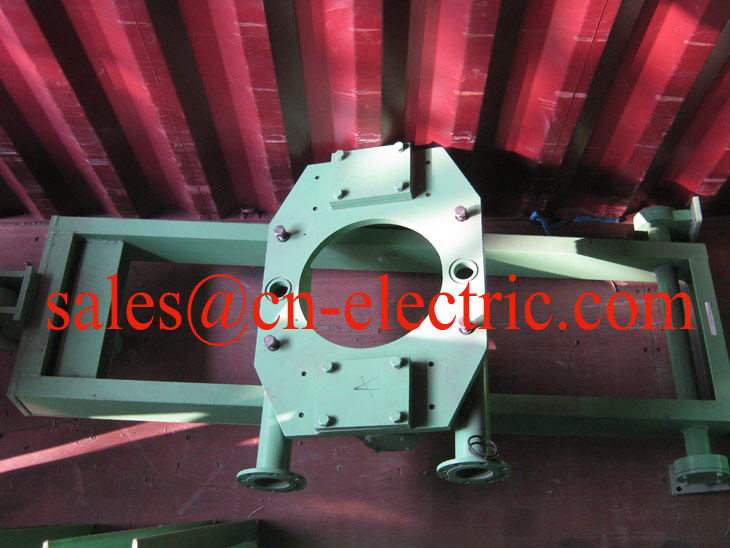

4) Oscillation frame.

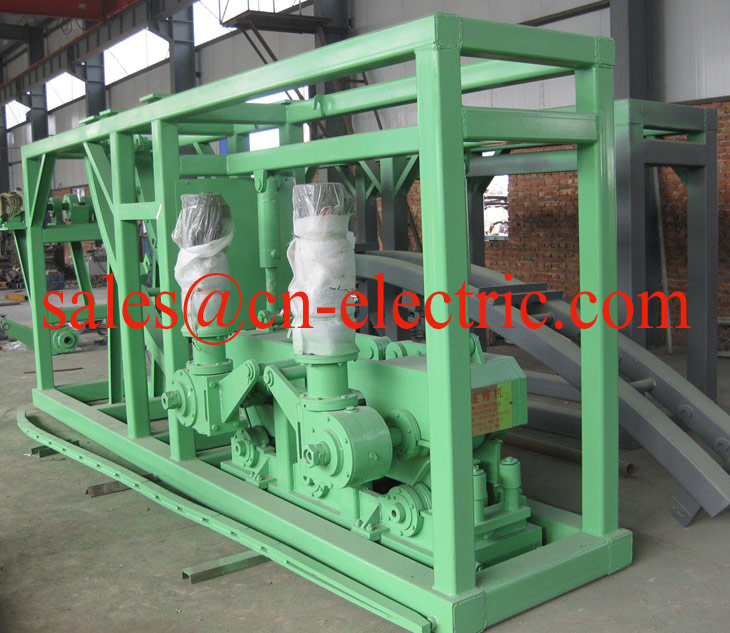

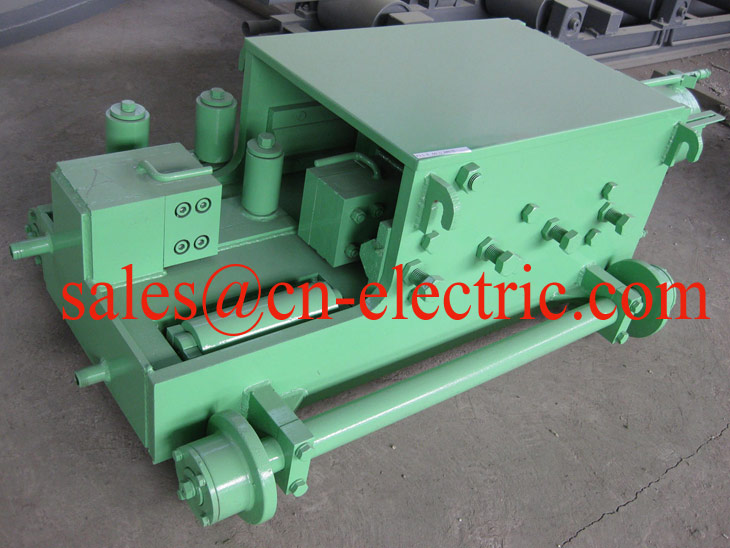

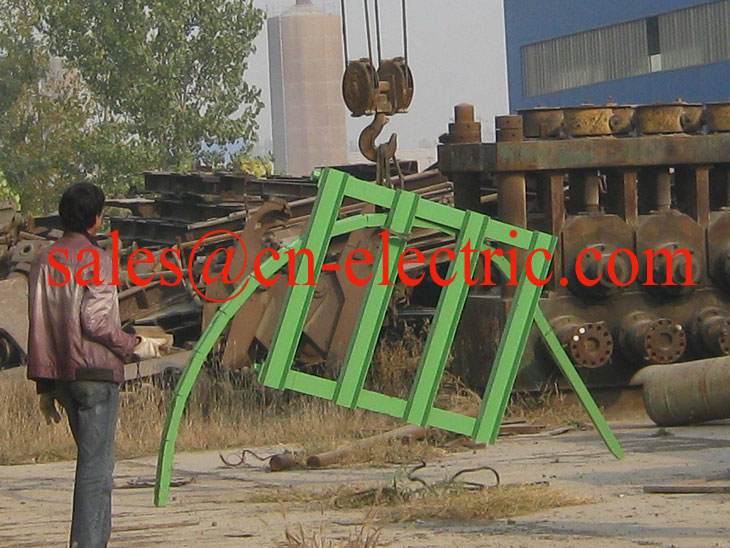

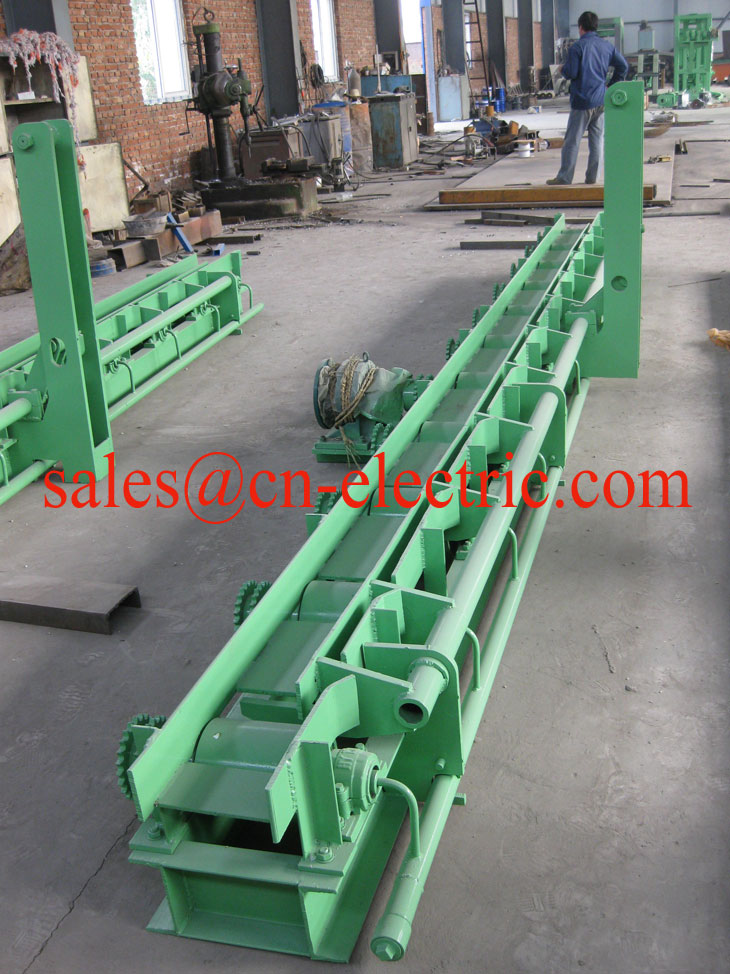

5) R2.5m arc shape guide rail, Withdrawal and traightening machine, Dummy bar track and dummy bar storage device

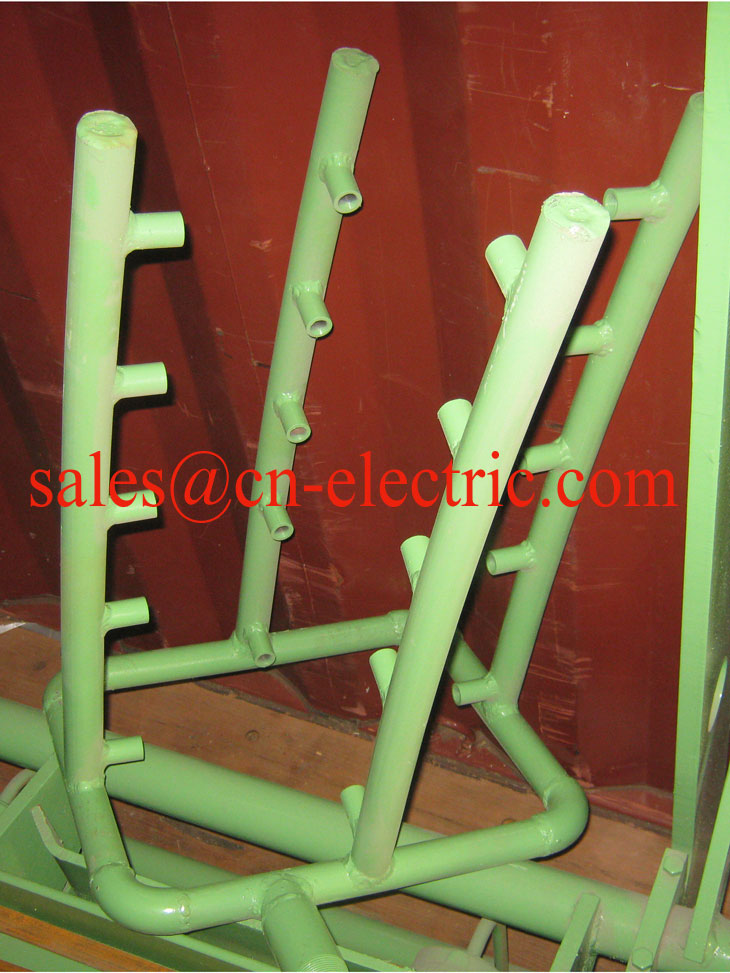

8) Water spraying system for cooling billet.

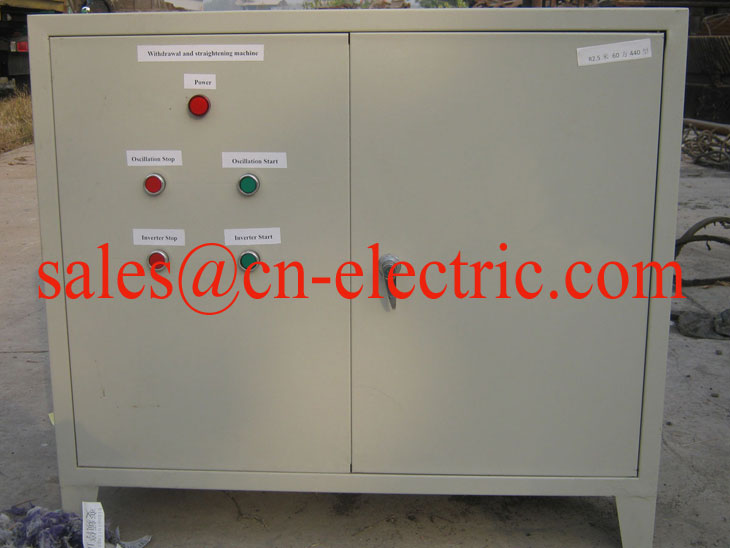

9) Power distribution cabinet, Variable frequency cabinet

10) Flexible dummy bar

11) Transmit roller table

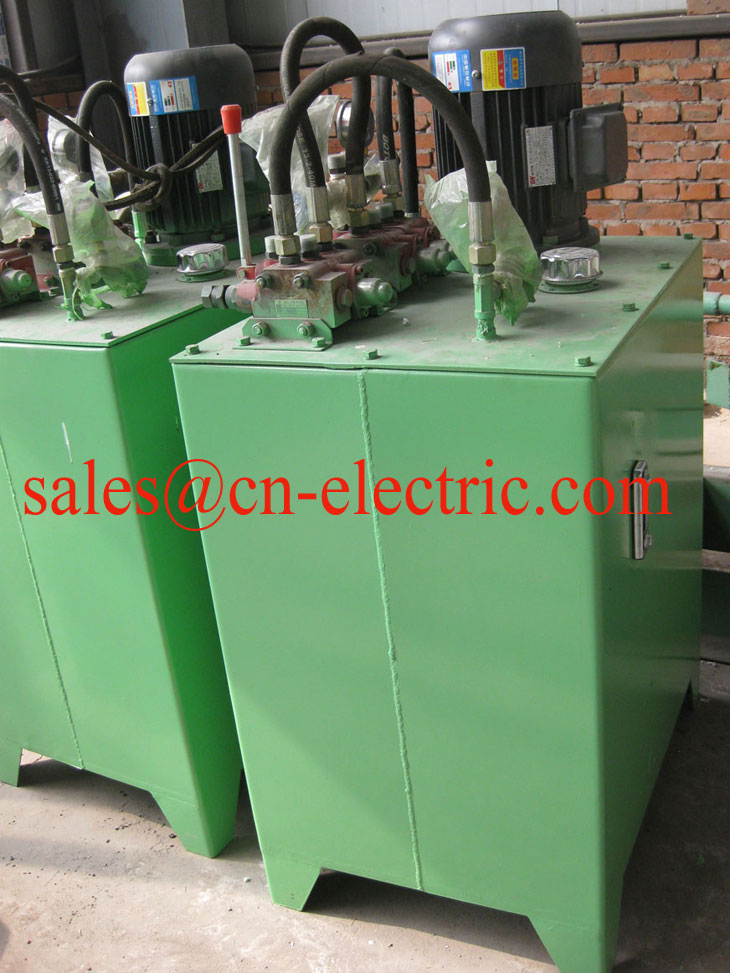

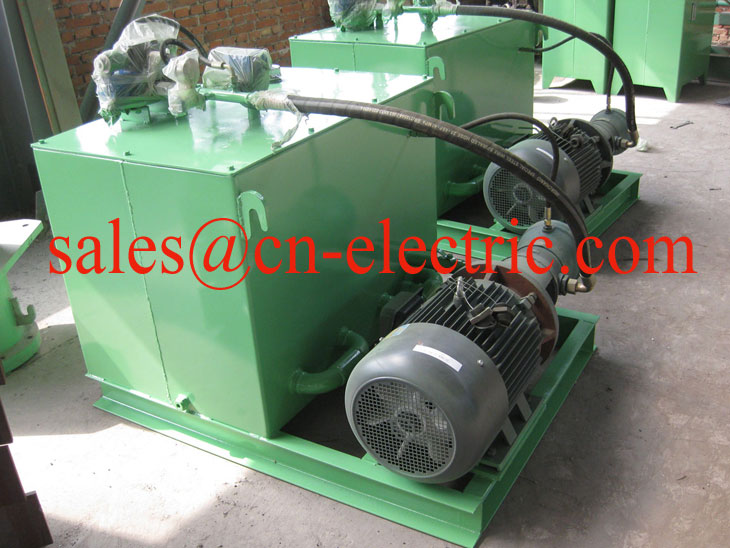

12) Hydraulic Shear and hydraulic station

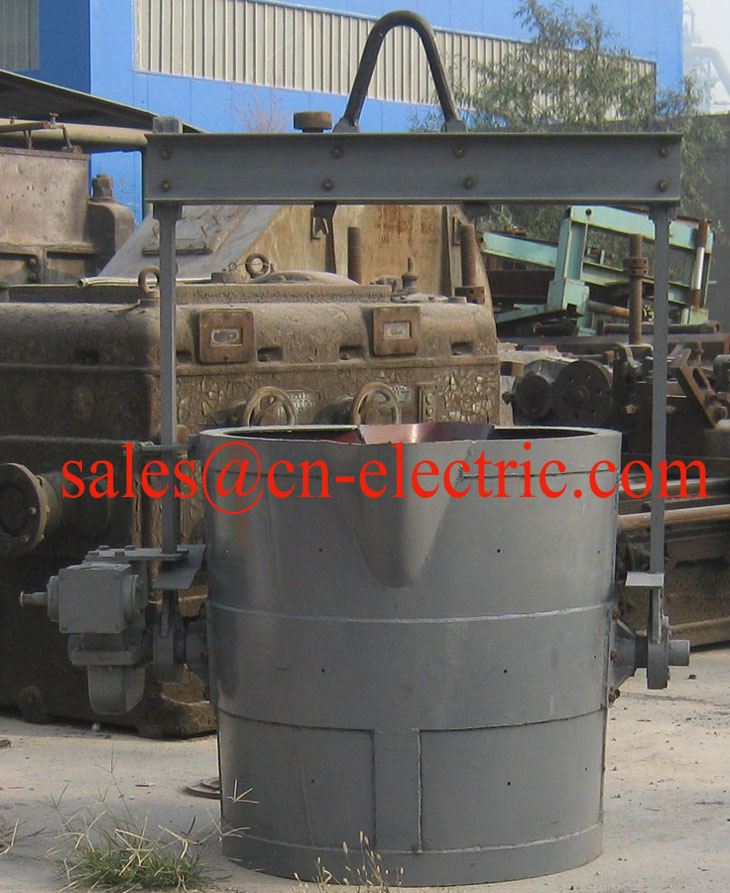

13) Hot Metal Ladle
